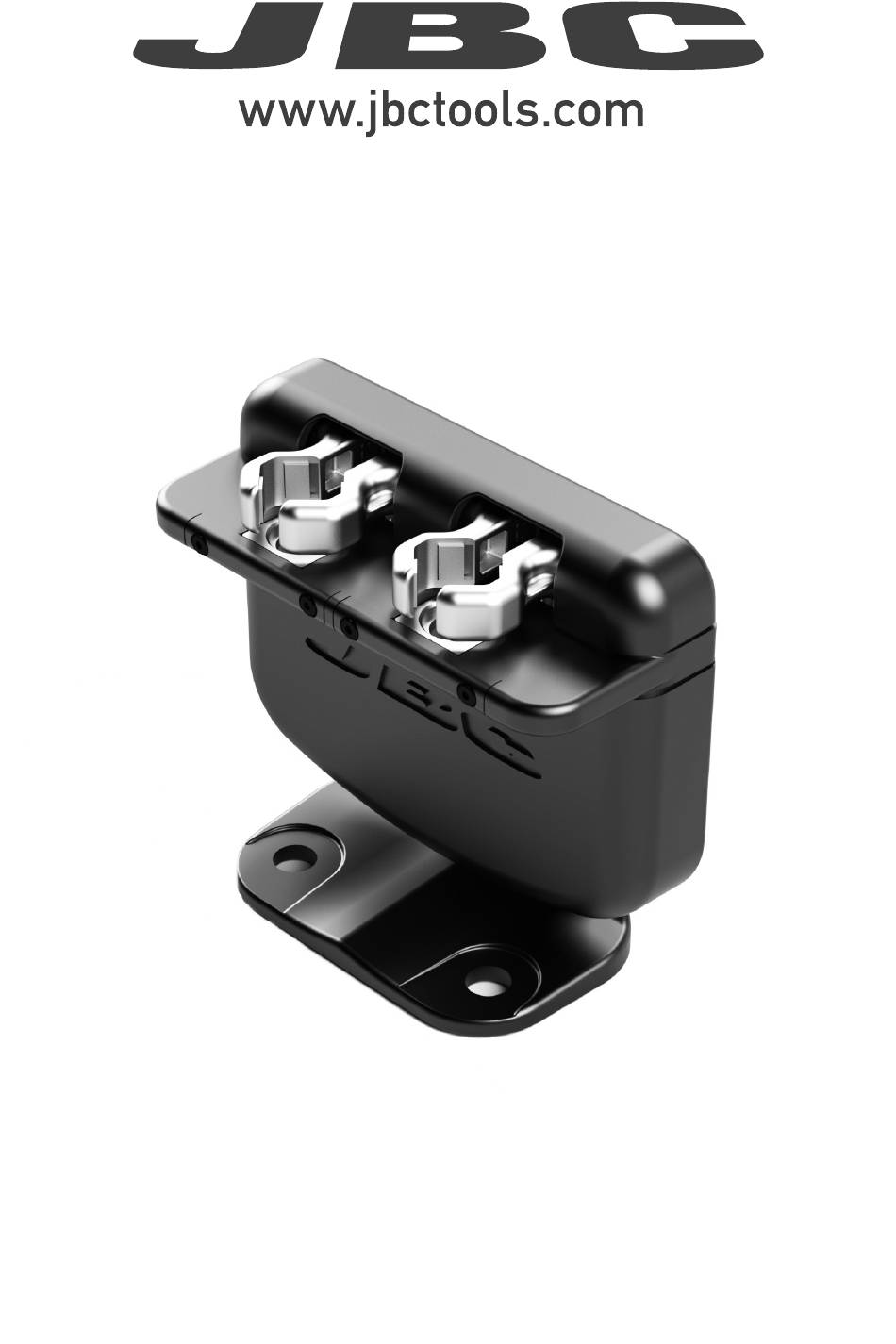

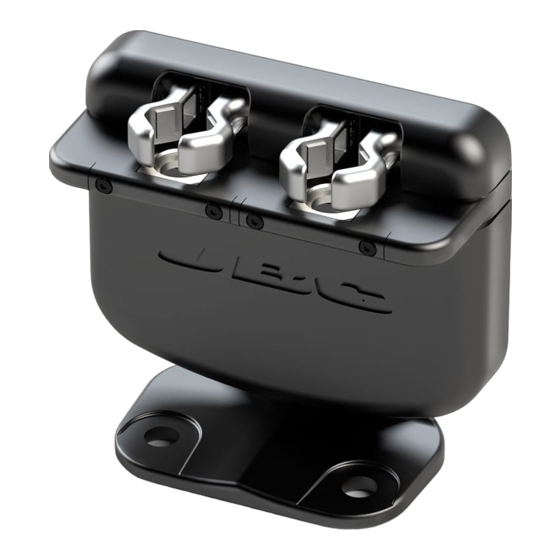

- Page 1 INSTRUCTION MANUAL Cartridge Stand for Robot...
- Page 2 This manual corresponds to the following references: - CS2R245-B for R245 cartridges - CS2R470-B for R470 cartridges Packing List Either Ref. CS2R245-B or Ref. CS2R470-B is included: Cartridge Stand for Robot ......1 unit Upper Center Jig ......1 unit Ref.
- Page 3 Assembly 40 mm CSR needs to be fixed to the robot work place area. Use a DIN912 M6 screw and the mounting hole as shown bellow. The gripper actuators must be connected to an air-circuit by using the tube connections A and B.
- Page 4 Work Position Adjustment CSR body can be pivoted 35º both sides to Note the angle indicator around the bolt suit the inclination of your Soldering Head in area. Tighten the bolt holding the body in the every job necessities. Use a 5mm allen key to desired position.
- Page 5 para manuales - color gris 200 mm Tool Position Adjustment 130 mm 130 mm The cartridge plate can be set to four different Use an 1,5 mm allen key to loosen the three positions. The flat faces of the plate and the indicated bolts.
- Page 6 Centering Jig In order to align CSR to the soldering iron and set the cartridge pick-up points use JBC´s centering jig. Instal both, lower and upper centering jigs, on Adjust the soldering iron position until the CSR and the soldering iron as shown.
- Page 7 para manuales - color gris 200 mm CS2R470-B CARTRIDGE STAND FOR ROBOT Dimensions 130 mm 130 mm 1.97 100 mm 80 mm 60 mm 50 mm 40 mm 0.06 53,6 3.94 2.11 74,5 2.93 1.45 (in)
- Page 8 Work Place Example GSFR *Not included, sold separately...
- Page 9 - Periodically check that the metal parts of the equipment are clean. - Periodically check all cables and tube connections. 80 mm - Replace any defective or damaged part. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service. 60 mm - Under normal operating conditions, the air gripper lifespan is 10 million cycles.
- Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the equipment for any other purpose. - Do not leave the appliance unattended when it is on. - Be sure that the power supply is disconnected before changing any spare part. - The temperature of accessible surfaces may remain high after the unit is turned off.
- Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 12 8.70 x 5.35 x 4.96 in / 2.30 lb Complies with CE standards. ESD protected. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
