METREL test and measurement accessories:
EVSE adapter
A 1532
Instruction manual
Version 1.2.3, Code no. 20 752 684

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A 1532 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for METREL A 1532

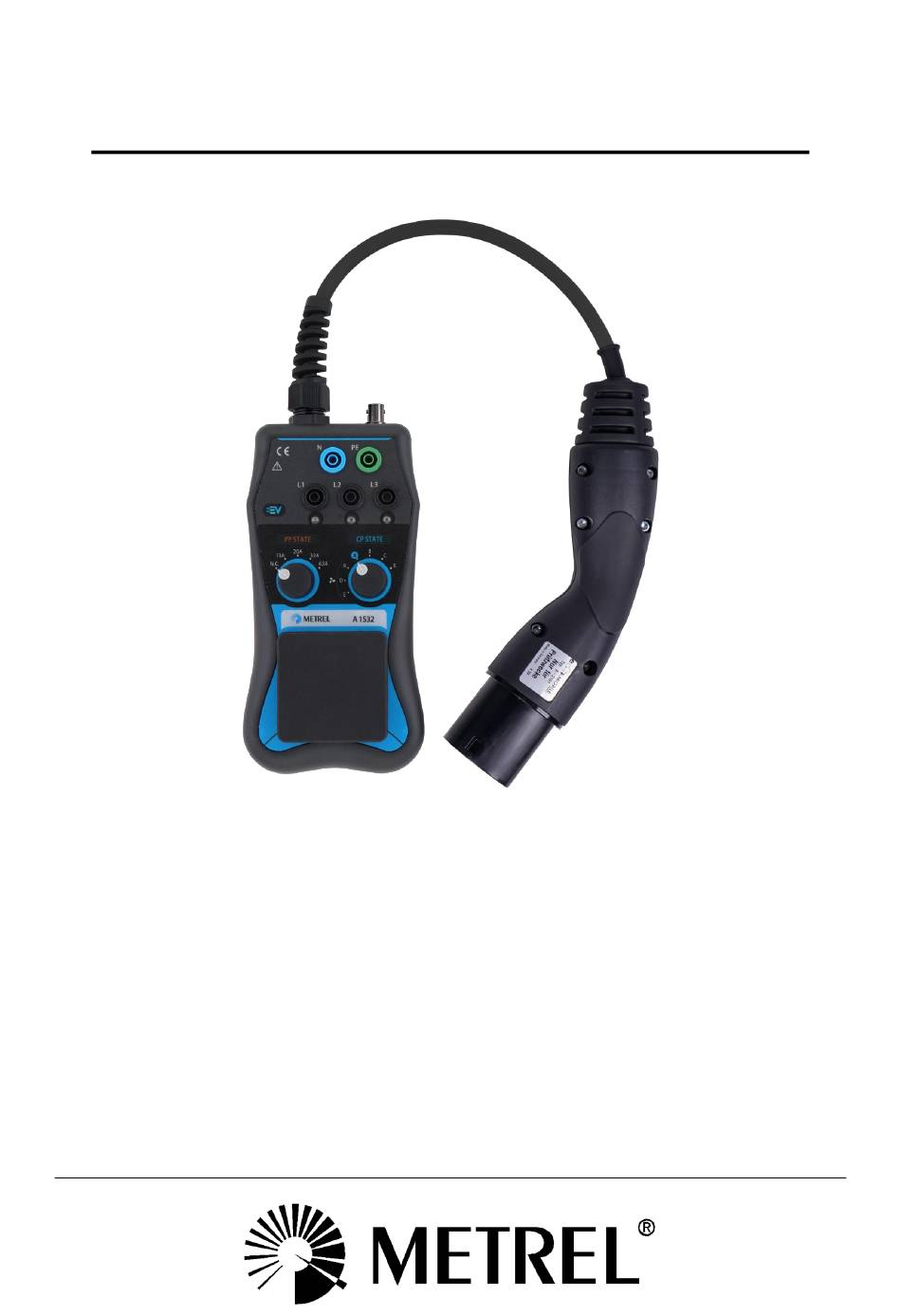

  • Page 1 METREL test and measurement accessories: EVSE adapter A 1532 Instruction manual Version 1.2.3, Code no. 20 752 684...
  • Page 2 The trade names Metrel , Smartec , Eurotest , Auto Sequence are trademarks registered in Europe and other countries. No part of this publication may be reproduced or utilized in any form or by any means without permission in writing from METREL.
  • Page 3: Table Of Contents

    Safety and operational considerations ..............5 Warnings and notes ..................5 Markings on the adapter ..................5 Standards applied ..................... 6 Adapter description ....................7 A 1532 operation ..................... 8 Maintenance ......................10 Cleaning ......................10 Service ......................10 Technical specifications ..................11...
  • Page 4: Preface

    Vehicle Supply Equipment (EVSE) to test socket of installation tester for verification of electrical safety and functional testing. It is intended for testing Mode 3 EV supply equipment with type 2 connector. A 1532 ESVE adapter is a special accessory intended to be used with METREL installation testers.
  • Page 5: Safety And Operational Considerations

     for safe operation«. The symbol requires an action! If the A 1532 is used in a manner not specified in this Instruction manual or the  Instruction manual of target test equipment, the protection provided by the A 1532...
  • Page 6: Standards Applied

    A 1532 EVSE adapter Safety and operational considerations 2.3 Standards applied The A 1532 adapter is manufactured and tested in accordance with the following regulations:. Safety (LVD) Safety requirements for electrical equipment for measurement, control EN 61010 - 1 and laboratory use – Part 1: General requirements Safety requirements for electrical equipment for measurement, control and laboratory use –...
  • Page 7: Adapter Description

    A 1532 EVSE adapter Adapter description 3 Adapter description Figure 3.1: A 1532 components Legend: Banana socket outputs for connection to 3-phase installation tester. Banana socket outputs are intended for test purposes only! Voltage on EVSE output indicators. Proximity Pilot (PP STATE) resistance (current code) selector for simulation of EV cable presence and current rating detection.
  • Page 8: 1532 Operation

    A 1532 operation 4 A 1532 operation Testing procedure: Connect the A 1532 output to the installation tester (via mains test socket or via safety  banana sockets) Set PP STATE (3) to position N.C. and CP STATE (4) to position A.
  • Page 9 A 1532 EVSE adapter A 1532 operation CP STATE options Position Simulates Comment EV disconnected EVSE in idle state, EV not ready to receive energy, EVSE does not supply energy EV connected EV detected, EV not ready to receive energy, EVSE does...
  • Page 10: Maintenance

    5.1 Cleaning No special maintenance is required for the housing. To clean the surface of the adapter use a soft cloth slightly moistened with soapy water or alcohol. Then leave the A 1532 to dry totally before use. Warnings: Do not use liquids based on petrol or hydrocarbons! ...
  • Page 11: Technical Specifications

    A 1532 EVSE adapter Technical specifications 6 Technical specifications 6.1 General data Input voltage: ......... up to 250 V (1-phase), up to 430 V (3-phase) Frequency: ..........50 Hz, 60 Hz Maximum test current: ......267 A (10 ms) intermittent operation...
