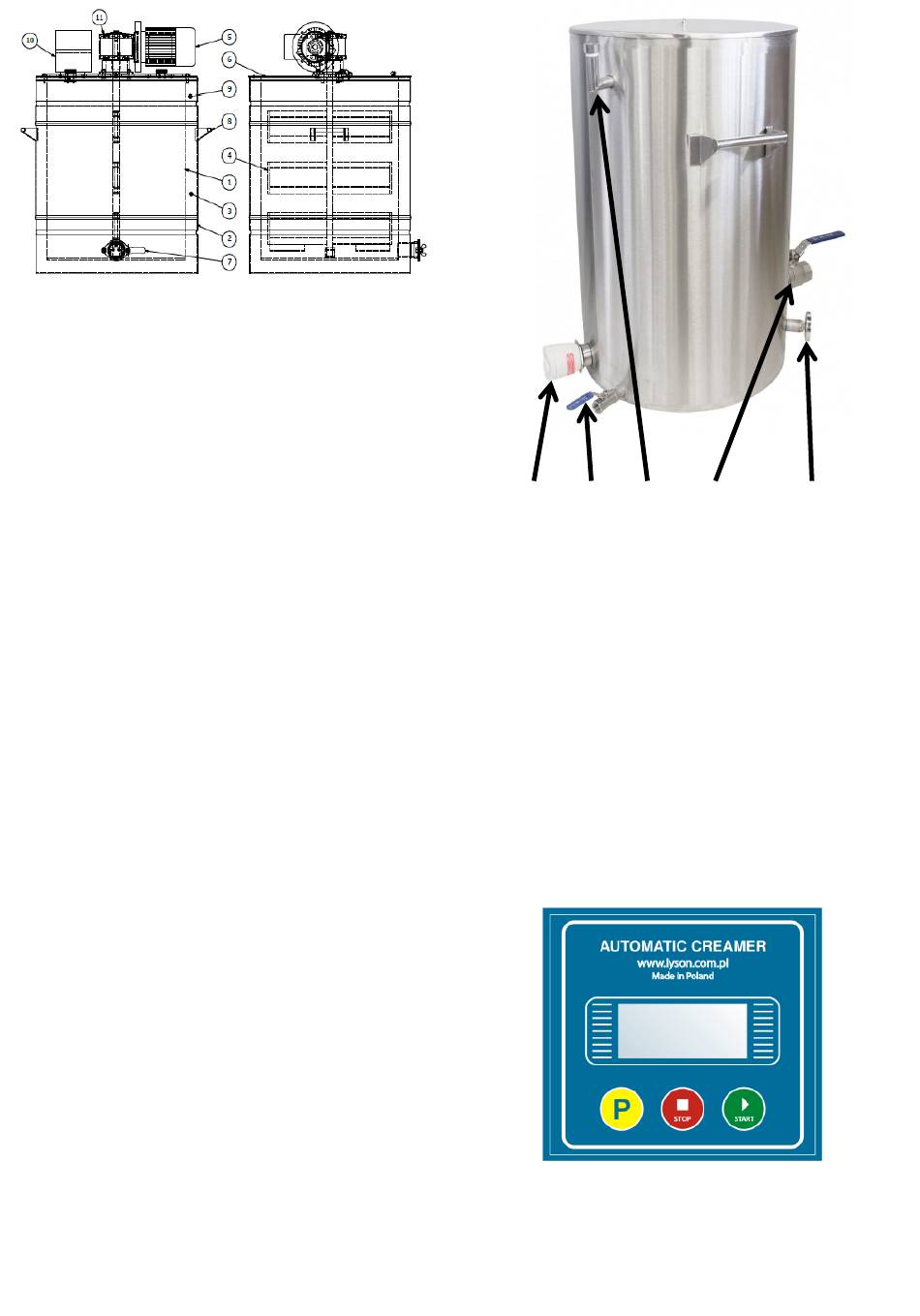

LYSON C-01 Manual page 11

Legend:
1. Tank internal jacket
2. Tank external jacket
3. water
4. stirrer
5. motor
6. covers
7. valve
8. handles (grips)
9. water
10. creaming machine controller
11. bevel gear
2.3. Device technical parameters:
•
tank made of stainless acid-resistant steel plate
• power supply of the heater – 400V
• power of the heater – 2000W
•
temperature regulation from 0 to 80ºC
• power supply of the gear engine – 230 V
•
motor 0.25kW-100kg , 0.75kW-200kg
• stirrer rotational speed – max 36 rpm
•
discharge valve 5/4" (4)
•
built-in thermometer (5)
3. CREAMING MACHINE HANDLING
Prior to plugging the device in to the mains, one must be sure
that the controller is switched off.
Switch (0/1) at the side of the control panel must be placed in
'0' position
Once connected to the mains, the switch (0/1) at the side of
the control panel must be placed from "0" position in position
"1"
Periodically check the water level in the water jacket (vent „3")
NOTE !!!
1 2
Description:
1-heater with temperature regulator
2-service valve for a water jacket
3-vent, maximum water level inside the water jacket,
water refilling
4-honey discharge valve
5- thermometer
4. COTROLLER FOR CREAMING MACHINE
C-01
POWER SUPPLY 400V
3 4 5
