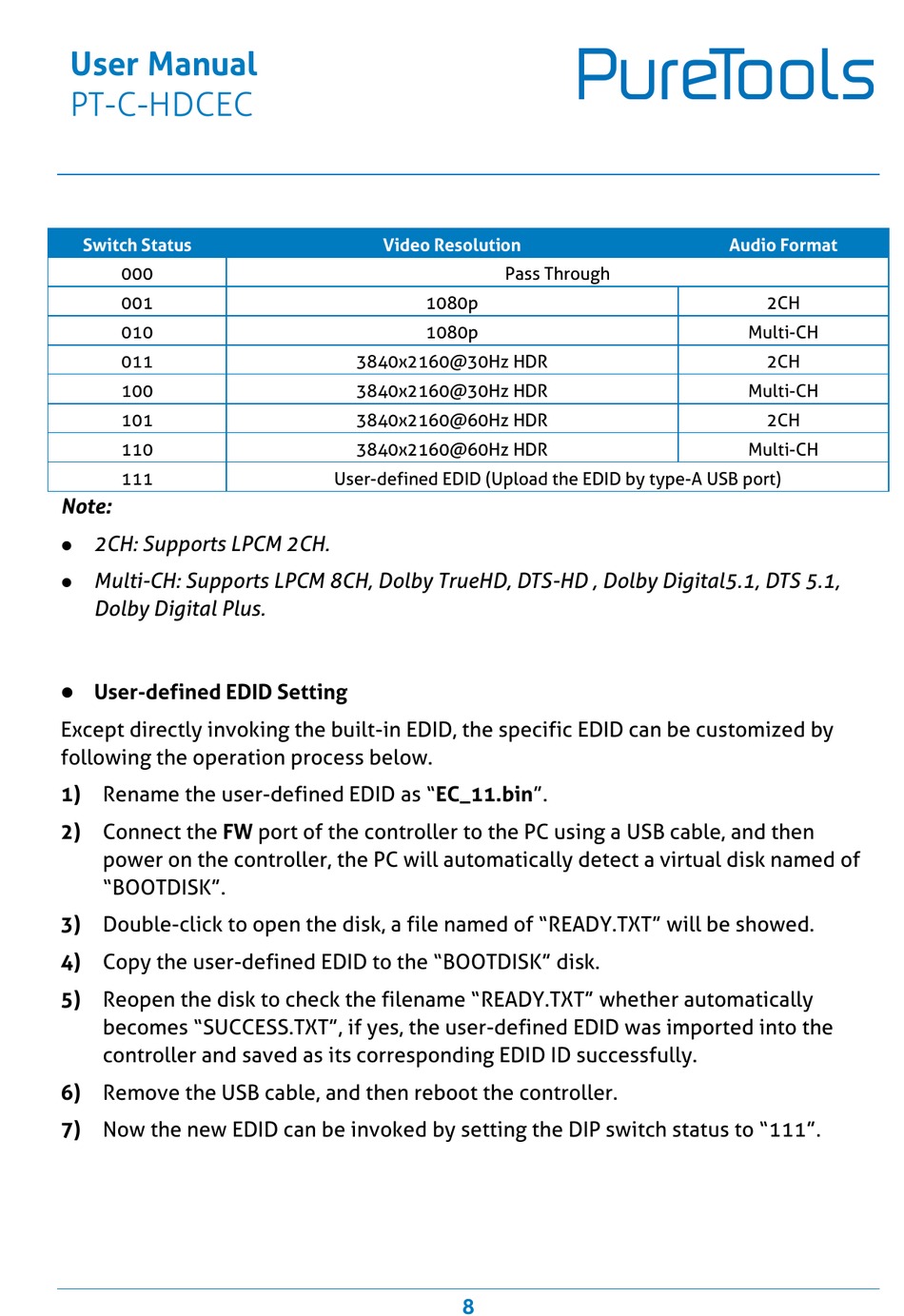

User Manual
PT-C-HDCEC
Switch Status
000
001
010
011
100
101
110
111
Note:
2CH: Supports LPCM 2CH.

Multi-CH: Supports LPCM 8CH, Dolby TrueHD, DTS-HD , Dolby Digital5.1, DTS 5.1,

Dolby Digital Plus.
User-defined EDID Setting

Except directly invoking the built-in EDID, the specific EDID can be customized by
following the operation process below.
1) Rename the user-defined EDID as "EC_11.bin".
2) Connect the FW port of the controller to the PC using a USB cable, and then
power on the controller, the PC will automatically detect a virtual disk named of
"BOOTDISK".
3) Double-click to open the disk, a file named of "READY.TXT" will be showed.
4) Copy the user-defined EDID to the "BOOTDISK" disk.
5) Reopen the disk to check the filename "READY.TXT" whether automatically
becomes "SUCCESS.TXT", if yes, the user-defined EDID was imported into the
controller and saved as its corresponding EDID ID successfully.
6) Remove the USB cable, and then reboot the controller.
7) Now the new EDID can be invoked by setting the DIP switch status to "111".
Video Resolution
1080p
1080p
3840x2160@30Hz HDR
3840x2160@30Hz HDR
3840x2160@60Hz HDR
3840x2160@60Hz HDR
User-defined EDID (Upload the EDID by type-A USB port)
8
Pass Through
Audio Format
2CH
Multi-CH
2CH
Multi-CH
2CH
Multi-CH
