4. System Connection

4.1 Usage Precaution

Make sure all components and accessories are included before installation.

System should be installed in a clean environment with proper temperature and

humidity.
All of the power switches, plugs, sockets, and power cords should be insulated

and safe.
All devices should be connected before power on.


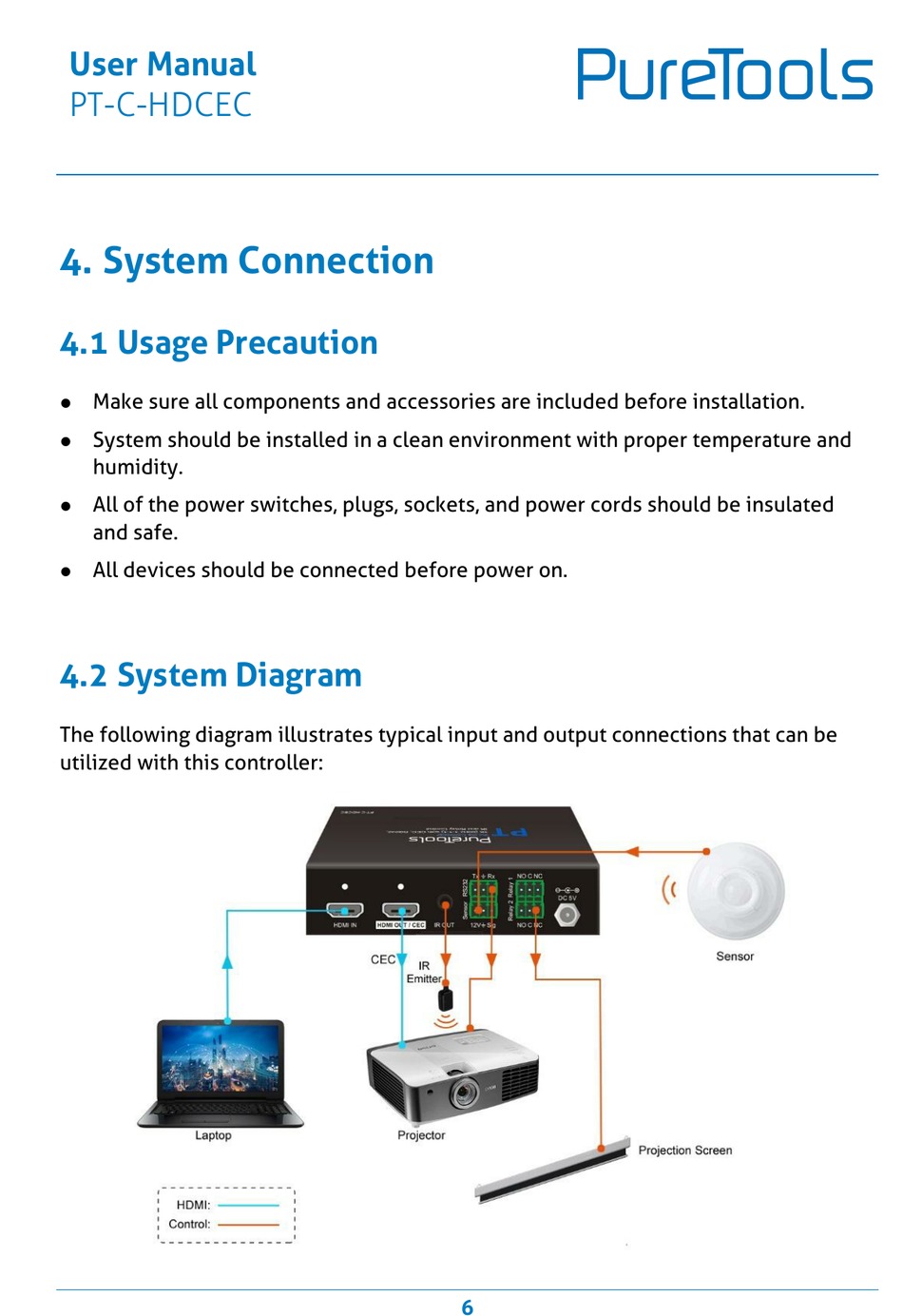

4.2 System Diagram

The following diagram illustrates typical input and output connections that can be
utilized with this controller:
