Summary of Contents for PureTools PT-C-HDCEC

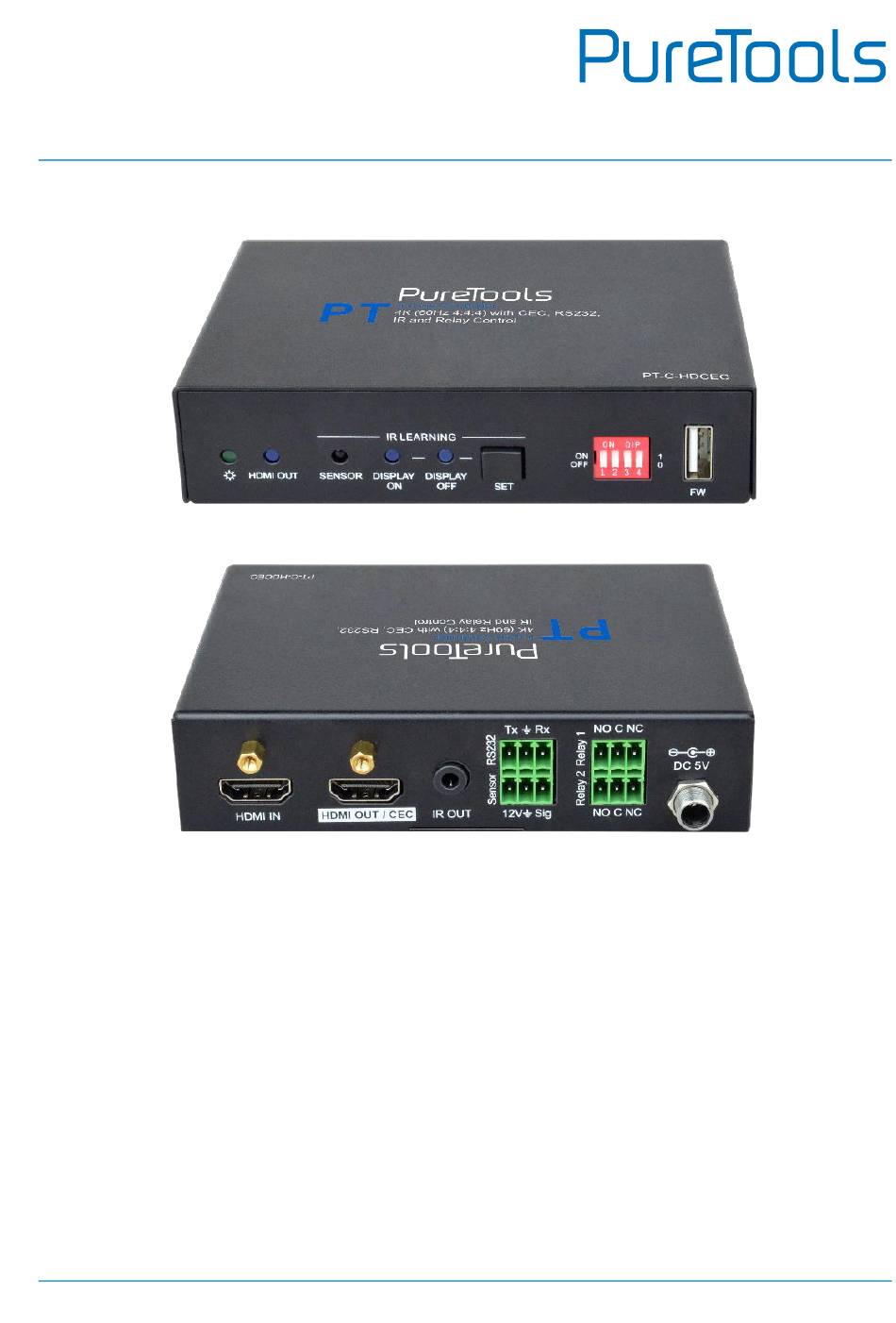

- Page 1 User Manual PT-C-HDCEC User Manual 18G In-line HDMI Controller with Auto Display Control Model PT-C-HDCEC Designed in Germany © 2019 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-C-HDCEC Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-C-HDCEC REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-C-HDCEC complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-C-HDCEC complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-C-HDCEC SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-C-HDCEC Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Technical Specification ......................3 3. Panel Description ........................4 3.1 Front Panel ......................... 4 3.2 Rear Panel........................... 5 4. System Connection ........................6 4.1 Usage Precaution ...................... -
Page 6: Product Introduction
PT-C-HDCEC 1. Product Introduction Thanks for choosing the PT-C-HDCEC 18G In-line HDMI Controller, which is designed for automatic system control and HDMI signal extension in small meeting rooms and huddle spaces. The controller supports a variety of system trigger methods, via IR signal input or video signal detection (5V "Hot-Plug-Detect"... -
Page 7: Package List
User Manual PT-C-HDCEC 1.2 Package List 1x 18G In-line HDMI Controller 2x Mounting Ears with 4 Screws 4x Plastic Cushions 3x 3-pin Terminal Blocks 1x Power Adapter (5V DC 1A) 1x RS232 Cable (3-pin to DB9) ... -
Page 8: Technical Specification
User Manual PT-C-HDCEC 2. Technical Specification Video Input Input (1) HDMI IN Input Connector (1) Female type-A HDMI Input Video Resolution Up to 4Kx2K@60Hz 4:4:4 8bit Video Output Output (1) HDMI OUT/CEC Output Connector (1) Female type-A HDMI Output Video Resolution... -
Page 9: Panel Description
User Manual PT-C-HDCEC 3. Panel Description 3.1 Front Panel IR LEARNING 1 2 3 4 HDMI OUT SENSOR DISPLAY DISPLAY ① POWER LED: The LED illuminates green when power is applied. ② HDMI OUT LED: The LED illuminates blue when there is HDMI signal output. -
Page 10: Rear Panel
User Manual PT-C-HDCEC 3.2 Rear Panel NO C NC DC 5V HDMI IN HDMI OUT / CEC 12V Sig NO C NC ① HDMI IN: Type-A female HDMI input port to connect HDMI source device. ② HDMI OUT/CEC: Type-A female HDMI output port to connect HDMI display, supports CEC. -
Page 11: System Connection
User Manual PT-C-HDCEC 4. System Connection 4.1 Usage Precaution Make sure all components and accessories are included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 12: Dip Switch Operation
User Manual PT-C-HDCEC 5. DIP Switch Operation 5.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, when a display with... - Page 13 User Manual PT-C-HDCEC Switch Status Video Resolution Audio Format Pass Through 1080p 1080p Multi-CH 3840x2160@30Hz HDR 3840x2160@30Hz HDR Multi-CH 3840x2160@60Hz HDR 3840x2160@60Hz HDR Multi-CH User-defined EDID (Upload the EDID by type-A USB port) Note: 2CH: Supports LPCM 2CH. Multi-CH: Supports LPCM 8CH, Dolby TrueHD, DTS-HD , Dolby Digital5.1, DTS 5.1, ...
-
Page 14: Hdcp Mode
User Manual PT-C-HDCEC 5.2 HDCP Mode Put switch 4 on “ON” position to select HDCP Active mode, or to “OFF” for HDCP Passive mode. Switch Status Mode HDCP Passive OFF (0) Automatically follows the HDCP version of source device. (Default) If the input video has HDCP content, the HDCP version of ... -
Page 15: System Control Setting
User Manual PT-C-HDCEC 6. System Control Setting SYSTEM ON When the controller detects a video signal via hot-plugging (5V HPD) or TMDS sensing (active video stream) or even an input IR signal, the system will start and automatically perform the actions below, all at the same time. -
Page 16: Rs232 Command Setting
User Manual PT-C-HDCEC 6.1 RS232 Command Setting Trigger commands SYSTEM ON and SYSTEM OFF as well as CEC, RS232, IR and relay control actions can be set using RS232 commands. RS232 Control Software 6.1.1 Installation: Copy the control software file to the PC which is connected to the controller. - Page 17 User Manual PT-C-HDCEC The interface of the control software is shown as below: Parameter configuration area Monitoring area, indicates if the command sent works. Command sending area Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly.
-
Page 18: Trigger Method Setting
User Manual PT-C-HDCEC Trigger Method Setting 6.1.2 Command Function Feedback Example Set the trigger method to perform SYSONMETH1. SYSTEM ON. Description SYSONMETH[X]. Detects IR signal Detects HDMI video signal SET DETECT VEDIO TRIGGER! (default 5V, or TMDS) Detects IR or video signal Set the trigger method to perform SYSTEM OFF. -
Page 19: Cec Control Setting
User Manual PT-C-HDCEC Command Function Feedback Example Report the trigger method of SYSTEM GSYSONMETH. SELECT DETECT VEDIO TRIGGER! Report the trigger method of SYSTEM SELECT NO DETECT VEDIO GSYSOFFMETH. OFF. TRIGGER! Report the delay time of SYSTEM OFF SET DETECT NOSIGNAL DELAY GNOSIGDLY. -
Page 20: Rs232 Control Setting
User Manual PT-C-HDCEC RS232 Control Setting 6.1.4 Command Function Feedback Example When detecting a triggering signal, automatically send ASCII command XXX RS232ON/+3:123abc to the third-party device (e.g. Projector) whose baud rate is X. Baud Rate 2400 RS232ON/+[X]:XXX 4800 Send the ASCII command 9600 “123abc”... -
Page 21: Ir Control Setting
User Manual PT-C-HDCEC Command Function Feedback Example RS232USER/-3:30 31 32 Set the user-defined HEX command to Send the user-defined command RS232U/-[X]:XXX send to the third-party device (e.g. “30 31 32” to the third-party projector) whose baud rate is X. whose baud rate is 9600. -
Page 22: Relay Control Setting
User Manual PT-C-HDCEC Command Function Feedback Example Send the learned IR command. IRSEND0. Description IRSEND[X]. SEND IR DISPLAY OFF SEND IR DISPLAY ON SEND IR DISPLAY OFF! SEND IR USER Set the sending interval time between IR IRDLY:[XXX]. ON and IR USER to XXX (default 3s, range SET IR ON DELAY TIME [XXX]S of 1S to 180s). - Page 23 User Manual PT-C-HDCEC Relay Port Definition NO C NC NO C NC When the controller is powered on, the Relay 1 port will perform the actions below: 1) The NO connection closes, and NC connection opens. 2) When the delay time is up, the NO connection opens, and NC connection closes.
-
Page 24: System Command
User Manual PT-C-HDCEC System Command 6.1.7 Command Function Feedback Example RST. Factory reset. Factory Default! DOWNSCALER0. Enable or disable 4K to1080p down-scaling function. Description DOWNSCALER[X]. Close Down Scaler Function! Disable Enable DOWN SCALER FUNCTION IS GDOWNSCALER. Report down-scaling status. OPEN! GALLINFO. -
Page 25: Panel Drawing
User Manual PT-C-HDCEC Step 4: Pressing and holding the SET button for 5 seconds can learn user-defined IR commands, and both DISPLAY ON and DISPLAY OFF LEDs are flashing. Then repeat the step 2 and both LEDs will stop flashing and remain lit to indicate that IR command has been learnt. -
Page 26: Troubleshooting & Maintenance
User Manual PT-C-HDCEC 8. Troubleshooting & Maintenance Problems Potential Causes Solutions Loss of color or missing video signal output on HDMI display. The connecting cables may not Check whether the cables are be connected correctly or it connected correctly and in No signal output from this may be broken. -
Page 27: After-Sales Service
User Manual PT-C-HDCEC 9. After-Sales Service If problems appear when using the product, please deal with the problems referring to this user manual. During the warranty period, any transport costs are borne by the customer. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 28 User Manual PT-C-HDCEC Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
