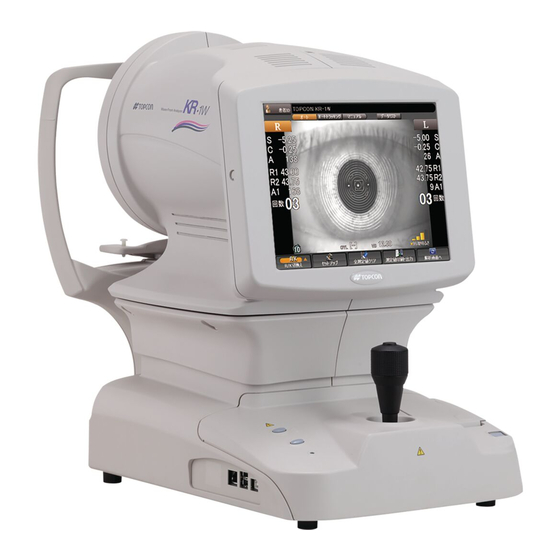

Topcon KR-1W Instruction Manual

Wave-front analyzer
Hide thumbs Also See for KR-1W:
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
WAVE-FRONT ANALYZER
KR-1W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KR-1W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Topcon KR-1W

Summary of Contents for Topcon KR-1W

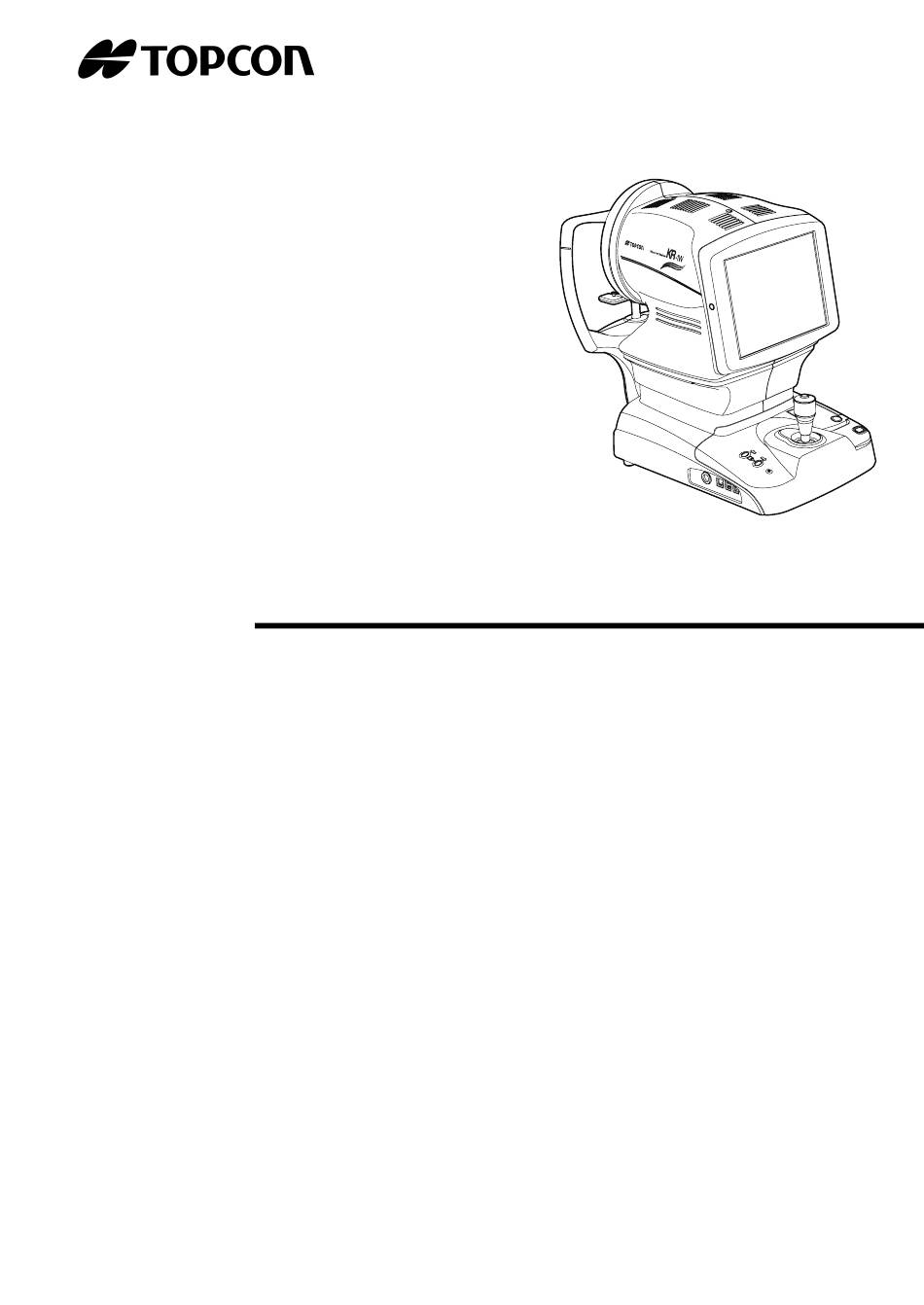

  • Page 1 INSTRUCTION MANUAL WAVE-FRONT ANALYZER KR-1W...

  • Page 3: Introduction

    Note; This is applicable to California, U.S.A. only [WARNING] The safety and effectiveness of the Wave-front Analyzer KR-1W has not been estabrished for use of the device as an accessory interfaced to the refractive laser for the treatments of the higher order aberrations of the eye by photorefractive keratectomy(PRK), phototherapeutic keratectomy (PTK), or laser assisted in situ keratomileusis (LASIK).
  • Page 4 To avoid injury in changing the measurement mode, do not place fingers into the measuring opening. To avoid electric shock, do not open cover. For repair, ask a certified Topcon Service Engi- neer. When changing the fuse, turn off the power, and disconnect the power cable. Use the properly rated fuse.

  • Page 5: How To Read This Manual

    HOW TO READ THIS MANUAL • Read the instructions on pages 1 to 8 before using the machine. • Regarding connection to various devices, see "PREPARATIONS" on page 26. • If you need to see how the machine works first of all, read "BASIC OPERATIONS"(page 33) first.

  • Page 6: Displays For Safe Use

    DISPLAYS FOR SAFE USE In order to encourage the safe use of the machine and prevent any danger to the operator and others or damage to properties, important warnings are placed on the product and inserted in the instruction manual. We suggest that everyone understand the meaning of the following displays and icons before reading the "SAFETY PRECAUTIONS"...

  • Page 7: Safety Precautions

    SAFETY PRECAUTIONS WARNING Icon Description Page Do not open the cover. For repair, contact your authorized Topcon distributor. Keep the instrument in a dry place. To avoid fire and electric shock, install the instrument in a dry place — free of water and other liquids.

  • Page 8: Table Of Contents

    CAUTION Icon Description Page To avoid injury, when moving the chinrest up/down, keep fingers away from moving parts. To prevent damage and injuries, do not install the instrument on an uneven, unsteady or sloped surface. To avoid electrical shock, do not handle the power plug with wet fin- gers.

  • Page 9: Usage And Maintenance

    For details, refer to "REPLACING THE FUSE" on page 155. DISCLAIMERS • TOPCON is not responsible for damage due to fire, earthquakes, actions or inactions of third persons or other accidents, or damage due to negligence and misuse by the user and any use under unusual conditions.

  • Page 10: Caution

    To ensure the safety, this machine provides warning displays. Use the instrument correctly by observing the display instructions. If any of the following dis- play labels are missing, contact your TOPCON dealer at the address listed on the back cover. CAUTION •...
  • Page 11 CONTENT INTRODUCTION ....................1 HOW TO READ THIS MANUAL................3 DISPLAYS FOR SAFE USE..................4 SAFETY PRECAUTIONS..................5 USAGE AND MAINTENANCE ................7 DISCLAIMERS ......................7 WARNING INDICATIONS AND POSITIONS ............8 COMPONENTS COMPONENT NAMES..................12 COMPOSITION OF PARTS WHICH CONTACT THE HUMAN BODY ....12 OPERATION METHOD OF CONTROL PANEL..........13 CONTROL PANEL COMPONENTS (REF/KRT MODE) ........14 CONTROL PANEL COMPONENTS (MEASUREMENT RESULT LIST SCREEN)......................16...
  • Page 12 IN A CASE LIKE THIS .....................48 TO STOP AUTO ALIGNMENT MEASUREMENT IN THE MIDDLE....48 TO MEASURE THE RIGHT/LEFT EYE ONLY............48 ALIGNMENT DOES NOT START ...............49 INDIVIDUAL OPERATIONS PROGRESS MEASUREMENT ................51 PUPILLOMETRY ....................53 DISPLAYING ALL MEASUREMENT DATA ............55 PRINTING MEASUREMENT VALUES ...............56 INPUT/OUTPUT ....................58 DISPLAYING THE MEASUREMENT RESULT MEASUREMENT RESULT LIST SCREEN ..............59...
  • Page 13 BEFORE REQUESTING SERVICE CHECKING OPERATIONS ................157 REFERENCES MESSAGE LIST ....................158 OPTIONAL ACCESSORIES................160 ORDERING CONSUMABLE SUPPLIES............160 SHAPE OF PLUG....................161 RS232C COMMUNICATION SPECIFICATIONS ..........162 SPECIFICATIONS SPECIFICATION AND PERFORMANCE............164 ELECTROMAGNETIC COMPATIBILITY ............166 DIMENSIONS AND WEIGHT ................170 PURPOSE OF USE...................170 OPERATIONS AND PRINCIPLE OF OPERATION ..........170 ELECTRIC RATING ..................170 LASER ILLUMINATION SYSTEM ..............170 SAFETY DESIGNATIONS PER IEC 60601-1 STANDARD ......171...

  • Page 14: Components

    COMPONENTS COMPONENT NAMES Main body Section Measuring head Control panel Measurement switch Control lever Chinrest up/down button Power lamp External I/O terminal Power supply Section Placido ring Forehead rest Measuring window Height mark Chinrest tissue stopper pin Chinrest Printer cover open button POWER switch Inlet cover Chinrest Section...

  • Page 15: Operation Method Of Control Panel

    OPERATION METHOD OF CONTROL PANEL When operating the control panel, do not use any sharp tools; e.g. ball MEMO point pen. To select any relevant item. Drag Used to change images. (Overlay, Reduction of image size, etc.) Touch the screen softly with a finger. Touch the screen softly and move the finger.

  • Page 16: Control Panel Components (Ref/Krt Mode)

    CONTROL PANEL COMPONENTS (REF/KRT MODE) AUTO MEASUREMENT SCREEN The control panel displays observation images and shows set conditions and measure- ment results. The control panel is also used as a touch panel for performing various oper- ations and settings. (8) AUTO/AUTO TRACKING/MANUAL button (9) Measurement Data List button (3) Patient ID (2) Machine No.
  • Page 17 (11) Progress measurement function ON display Displayed when the progress measurement function is ON. (see page 51) DETAILS OF FUNCTION BUTTONS (2) SETTINGS button (4) DATA OUT button (1) MODE button (3) ALL CLEAR button (5) ANALYZE button MODE button Measurement mode is changed.

  • Page 18: Control Panel Components (Measurement Result List Screen)

    CONTROL PANEL COMPONENTS (MEASUREMENT RESULT LIST SCREEN) MEASUREMENT RESULT LIST SCREEN On the Measurement Result List screen, a list of measurement results can be confirmed. By selecting the data to be displayed, data output to the external PC, printing data, initial display on the Analysis screen, and clearing data can be done.

  • Page 19: Control Panel Components (Analysis Result Screen)

    CONTROL PANEL COMPONENTS (ANALYSIS RESULT SCREEN) ANALYSIS RESULT SCREEN The KR-1W can perform REF/KRT measurements and aberration measurements by capturing Hartmann Shack and Mire images of the patient's eye. After the measurement, tap the ANALYZE button to display analysis results on Measurement Result List Screen.

  • Page 20: Other Screen Displays

    RESULT LIST button Changes to Result List display mode. (See page 59.) SETTINGS button Performs various settings. (See page 95.) CLEAR button Clears only the data currently displayed. S ・ ・ ・ C ・ ・ ・ A ・ ・ ・ DATA OUT button When the external printer is set, the displayed analysis result can be outputted to the external printer.

  • Page 21: Printer Output

    (6) Set Condition buttonDisplays the set condition of current set items. When pressed, the color changes to orange and the Setting Change button is dis- played. (7) Setting Change buttonSelect items for changing the setting by pressing the button. When selected, the result is reflected on the Set Condition button.
  • Page 22 When measurement is done under the IOL mode, a reliability factor is printed out following the I mark. The I mark is displayed at IOL mode. COMPONENTS...
  • Page 23 <REF> MODE <KRT> MODE Instrument No. Patient No. VD (vertex distance) Cylindrical power mark Typical measured value Results of 5 refractory power mea- surements of right eye (recordable of right eye corneal up to 10 measurements) curvature Typical value of right eye Typical value of right eye SPHERICAL EQUIVALENT Measured value of right...
  • Page 24 WHEN THE SETTING OF "KRT PRINT TYPE" IS CLASSIC: <R/K> MODE Barcode Typical measured value Work ID No. of right eye corneal Instrument No. curvature Patient No. Cylindrical power mark VD (vertex distance) Right eye measurements Results of 5 refractory power mea- surements of right eye (recordable up to 10 measurements) Results of 5 right eye cor-...
  • Page 25 <REF> MODE <KRT> MODE Patient No. Cylindrical power mark Typical measured value VD (vertex distance) of right eye corneal curvature Results of 5 refractory power mea- surements of right eye (recordable up to 10 measurements) Typical value of right eye Results of 5 refractory power mea- surements of left eye (recordable up to 10 measurements)
  • Page 26 WHEN THE SETTING OF "KRT PRINT TYPE" IS CLASSIC2: <R/K> MODE Barcode Instrument No. Work ID No. Patient No. VD (vertex distance) Cylindrical power mark Right eye measurement REF Measurement Results of 5 right eye measurements (recordable up to 10 measurements) Typical value of right eye SPHERICAL EQUIVALENT of right eye The I mark is displayed at IOL mode.

  • Page 27: Standard Accessories

    Power cable (1) Chinrest tissue pin (2) Printer paper (2) Monitor cleaner (1) Chinrest tissue (1) Dust cover (1) Fuse (2) Instruction manual, unpacking and assembling (1 each) KR-1W KR-1W Accessory case (1) Model eye (1) Measuring window lens cap (1) COMPONENTS...

  • Page 28: To Prevent Damage And Injuries, Do Not Install The Instrument On An Uneven, Unsteady Or Sloped Surface

    PREPARATIONS INSTALLING THE INSTRUMENT When moving the instrument, be sure to hold it at the base with two persons. Carrying by one person may cause harm to his back or injury by falling parts. Also, holding areas other than CAUTION the base may cause injury, as well as damage to the instru- ment.

  • Page 29: To Avoid Electrical Shock, Do Not Handle The Power Plug With Wet Fingers

    CONNECTING THE POWER CABLE To avoid fire and electric shocks by short circuiting, be sure to WARNING connect the instrument into a grounded outlet. To avoid electrical shock, do not handle the power plug with CAUTION wet fingers. Make sure the power switch of the instrument is OFF. Make sure you can see the mark "O"...

  • Page 30: Connecting External I/O Terminals

    DATA INPUT This instrument is provided with a USB IN terminal For inquiries about the USB in terminal, call your dealer or TOPCON at the address printed on the back cover of this manual. LAN OUTPUT This instrument can be connected to a PC on local area network (IMAGEnet etc.) via the LAN...

  • Page 31: To Avoid Failure Or Potential Injury, Do Not Open The Printer Cover

    SETTING THE PRINTER PAPER To avoid potential injury, do not touch the internal printer body while the printer is in operation or when replacing the printer CAUTION paper. To avoid failure or potential injury, do not open the printer cover CAUTION while the printer is in operation.
  • Page 32 Set the paper into the shaft support; pay attention to the roll direction of paper. Pull the paper 2 to 3cm forward. Roll direction Roll direction Pull the paper along the paper guide and draw it out straightly from the cover. Paper guide Close the printer cover with the paper drawn out.

  • Page 33: Resetting From Power Save Status

    RESETTING FROM POWER SAVE STATUS This instrument uses the power save system for saving electric power. When the machine is not in use for approximately 10 minutes, the monitor screen becomes dark and the screen saver is displayed. Under the power save condition, only the POWER lamp is lit and the con- trol panel screen is off.
  • Page 34 Measurement operation Measurement starts by pressing the MEASUREMENT switch at the top of the control lever. PREPARATIONS...

  • Page 35: Basic Operations

    BASIC OPERATIONS CHANGING THE MEASUREMENT MODE MEASUREMENT MODE Select the desired measurement mode by pressing the Mode button of the control panel. Patient AUTO TRACKING DATA LIST AUTO MANUAL COUNT COUNT [ - ] VD 12.00 Fixed Target Brightness S ・ ・ ・ C ・...

  • Page 36: Selection Of Auto Measurement/Auto Tracking Measurement/Manual Measurement

    Tap a button of the popup menu and select the measurement mode. In the initial setting KREF/KRT continuous measurement mode is the default set- ting, but this can be changed. For details see page 111. SELECTION OF AUTO MEASUREMENT/AUTO TRACKING MEASUREMENT/ MANUAL MEASUREMENT Select auto measurement or manual measurement by tapping the AUTO button / AUTO TRACKING button / MANUAL button of the control panel.

  • Page 37: Setting The Brightness Of Fixation Target

    SETTING THE BRIGHTNESS OF FIXATION TARGET Select the brightness of fixation target: Tap the display of control panel while it is displayed for approx. 3sec. Patient AUTO AUTO TRACKING MANUAL DATA LIST COUNT COUNT [ - ] VD 12.00 Fixed Target Brightness S ・...
  • Page 38 MEASURING THE RIGHT EYE ONLY Tap the button to move the measuring head to the right. When the movement is finished, tap the button once again: the lock icon is dis- played • When the lock icon is displayed, the measuring head does not move to the other eye even when the measurement of one eye is finished.

  • Page 39: Measurement

    MEASUREMENT The measurement in auto mode may not be possible due to the eyelid and the eyelashes over to the pupil. MEMO If this occurs, the operator should tell the patient to open their eyes wide enough, or lift the eyelid to allow for measurement. The measurement in auto mode may not be possible due to the frequent blinks or existing abnormalities in the corneal surface caused by corneal MEMO...

  • Page 40: Never Insert Your Fingers Under The Chinrest

    POSITIONING THE PATIENT Never insert your fingers under the chinrest. * Inform the patient of this, too. CAUTION Careless insertion of fingers may cause injury by pinching. When operating the instrument, be careful not to touch the patient's face or nose. If touched, clean the instrument following "CLEANING THE MEMO INSTRUMENT"...

  • Page 41: Measurement Under Auto Mode

    Turn OFF the POWER switch and disconnect the power cable: Call your dealer or TOPCON at the address printed on the back cover of this manual.
  • Page 42 • If the image of the pupil is not shown on the screen, use the control lever to move the measuring head into the proper position, locating the patient's pupil. For the operation of the control lever, see "OPERATING THE CONTROL LEVER" on page 31.
  • Page 43 If the alignment position with the patient's pupil is not correct, adjust the alignment by tap- ping on the control screen or by operating the control lever. When realignment is com- plete, the final alignment and focusing operations will start automatically and measurement is done.

  • Page 44: Measurement Under Auto Tracking Mode

    MEASUREMENT UNDER AUTO TRACKING MODE Adjust the height of the automatic instrument table so that the patient can sit on the chair comfortably and correct measurement values can be MEMO obtained. When operating the instrument, be careful not to touch the patient's face or nose.
  • Page 45 When the measuring head comes to the measuring position and alignment is complete, a message "Press MEASUREMENT switch to start measurement." is displayed. By pressing the MEASUREMENT switch , measurement is performed and measure- ment values are displayed. • It will take a few seconds for measurement to be fully complete, and display the final results.

  • Page 46: Measurement Under Manual Mode

    MEASUREMENT UNDER MANUAL MODE Adjust the height of the automatic instrument table so that the patient can sit on the chair comfortably and correct measurement values can be MEMO obtained. When operating the instrument, be careful not to touch the patient's face or nose.
  • Page 47 Tilt the control lever toward the patient and slowly bring the main body into focus with the patient eye. A luminous point and a KRT ring image are reflected off the patient's cornea. Bring the luminous point and KRT ring image into focus by slowly moving the main body toward the patient.

  • Page 48: Displaying Measurement Values

    DISPLAYING MEASUREMENT VALUES Data of the latest measurements are displayed on the control panel screen. Display of measurement values only: Measurement was done correctly. ERROR: Measurement was not done correctly. For messages on the control panel screen, see "MESSAGE LIST" on page 158. It is possible to display all measurement data on the screen.

  • Page 49: Terminating Measurement

    All the measurement values for right and left eyes are cleared, and the main body will return to the initial power on position. When measurement values are cleared by the ALL CLEAR button , the patient ID may reset, depending on the setting of "RESETTING THE PATIENT ID (PATIENT ID RESET)"...

  • Page 50: In A Case Like This

    IN A CASE LIKE THIS TO STOP AUTO ALIGNMENT MEASUREMENT IN THE MIDDLE PRESSING THE MANUAL BUTTON TO STOP AUTO ALIGNMENT AUTO button MEASUREMENT switch : measure- Press the and press the ment operation restarts. To finish measurement, output data by tapping the DATA OUT button , or clear ALL CLEAR button data by tapping the STOP THE MEASUREMENT BY OPERATING THE CONTROL LEVER...

  • Page 51: Alignment Does Not Start

    ALIGNMENT DOES NOT START The measurement in auto mode may not be possible due to the eyelid and the eyelashes over to the pupil. MEMO If this occurs, the operator should tell the patient to open their eyes wide enough, or lift the eyelid to allow for measurement. The measurement in auto mode may not be possible due to frequent blinks or existing abnormalities in the corneal surface caused by corneal MEMO...
  • Page 52 THE IMAGE OF THE PATIENT'S EYE DISPLAYED ON THE MONITOR IS NOT CLEAR Check if the patient's forehead is pressed against the forehead rest. If not, move the fore- head forward. If the patient's eye and the main body are not aligned, tilt the control lever toward the patient, move the main body slowly toward the patient's eye and bring it into focus.

  • Page 53: Individual Operations

    INDIVIDUAL OPERATIONS PROGRESS MEASUREMENT By continuously performing measurement for 10 shots at a rate of 1 shot/1 sec., you can see the condition of aberration changing by elapsed time, such as dry eyes. SETTING THE PROGRESS MEASUREMENT FUNCTION SETTINGS button Tap the of the control panel, the SETTINGS screen is displayed.
  • Page 54 PREPARING FOR THE PROGRESS MEASUREMENT AND PERFORMING THE MEASUREMENT To prepare for the progress measurement, perform measurement once. When a message "Get the eye aligned and press the MEASUREMENT switch" is dis- played, perform alignment and press the MEASUREMENT switch. (Since this is done merely for preparation, the measurement result is not reflected in the result of continuous measurement.) When a message "Press the MEASUREMENT switch again to perform 10 continuous...

  • Page 55: Pupillometry

    PUPILLOMETRY The Pupillometry function is intended to change the pupil size of the patient's eye by changing the brightness of the fixation target, thereby measuring the pupil diameter and wavefront aber- ration. Brightness is changed in steps automatically (under Auto mode and Auto tracking mode), and each time measurement is performed three times.
  • Page 56 (Scotopic: dark place measurement), and three times with the fixation target under the brightest state (Photopic: bright place measurement). To measure the other eye, tap the R-L Change button on the MEASUREMENT screen and change the target eye. ANALYZE button, the "Pupillometry map" is displayed. Result of the By tapping the data measured under the Pupillometry mode can be checked on the Pupillometry map.

  • Page 57: Displaying All Measurement Data

    DISPLAYING ALL MEASUREMENT DATA For measurement values, the latest data is displayed, but it is also possible to confirm and review all measurement data. Select and display measurement data from "REF data" and "KRT data". DATA LIST button Press the of the control panel.

  • Page 58: Printing Measurement Values

    PRINTING MEASUREMENT VALUES • To avoid paper jam in the internal printer, do not feed the paper into the printer if it is partly cut/torn or wrinkled. • To avoid discoloration of the printing paper (particularly the recording area) during storage, use a polypropylene holder; avoid a container made of plasticizer (PVC, etc.).
  • Page 59 When measurement values are printed out, the paper is cut automatically. The user may select which data items are to be printed. Refer page 139 for detail. If the printer paper is not cut automatically at the end of printing the data, hold of the top corner of the paper and cut by pulling the paper down and diagonally.

  • Page 60: Input/Output

    Check settings for data communication. For data communication settings, see "SETTING OF DATA COMMUNICATION (COMM)" on page 148. For the usable external printer, ask your dealer or TOPCON at the address printed on the back cover of this manual. INPUT USING USB This instrument can input data the USB interface.

  • Page 61: Displaying The Measurement Result

    DISPLAYING THE MEASUREMENT RESULT MEASUREMENT RESULT LIST SCREEN On the Measurement Result List screen, a list of measurement results can be confirmed. By selecting the data to be displayed, data output to the external PC, printing data, initial display on the Analysis screen, and clearing data can be done. When plural measurements are performed under Auto mode, the screen is changed automat- ically to the Measurement Result List screen.
  • Page 62 RS-232C or to the connected PC. The following three settings can be assigned to the button: (1) KR-1W data output(1WS data) (2) Print image output (Report image) (3) RS-232C output(STD1) Output data can be set on the SETTINGS screen.
  • Page 63 The following two settings can be assigned to the button: (1) Internal thermal printer (2) Connected external printer Additionally, the data outputted to the external printer are the left eye/right eye data framed in brown of the Measurement Result List screen. Also, by a long pressing of the PRINT button (approx.

  • Page 64: Analysis Result Screen

    ANALYSIS RESULT SCREEN The KR-1W can perform REF/KRT measurements and aberration measurements by capturing Hartmann Shack and Mire images of the patient's eye. After the measurement, tap the ANALYZE button to display analysis results on Measurement Result List Screen. (1) R-L Change button...

  • Page 65: Description Of Map Layout

    MEASURE button Goes to the MEASUREMENT screen. (5) Analysis result Analysis results such as Mire image, Hartmann image and wave- front aberration image are displayed. DESCRIPTION OF MAP LAYOUT In the measurement result display screen for displaying analysis results, various types of map layout are prepared and can be selected.
  • Page 66 This map display facilitates qualitative comparison of aberration due to corneal topography and aberration of total refraction. Changing to other map: Tap the Layout Change button. Description of Each Display (1) Mire image Image by projecting a Placido ring to the cornea. An image of corneal surface;...
  • Page 67 Operation: • When tapped, the image is changed to the ocular aberration map. (See page 66.) • The map display step can be changed. (See "SETTING THE TOTAL ABERRATION MAP DISPLAY STEP (TOTAL ABERRA- TION MAP RANGE)" on page 128.) (6) Ocular HOA map A map to display ocular higher order aberration (e.g.
  • Page 68 OCULAR ABERRATION MAP DISPLAY This map displays information about aberration related to total refraction. Layout Change button (2) Ocular total aberration map (4) Landolt's simulation (1) Hartmann image (3) Ocular HOA map (5) RMS display of ocular aberration To change display to another map: Tap the Layout Change button. (1) Hartmann image (See "Hartmann image"...
  • Page 69 (4) Landolt's ring simulation(See "Landolt's Ring Simulation" on page 65.) Operation: • When tapped, the image is enlarged. (See "ENLARGEMENT DIS- PLAY" on page 79.) • The direction of Landolt's ring can be changed. (See "SETTING THE DIRECTION OF LANDOLT'S RING (LANDOLT DIRECTION)" on page 133.) •...
  • Page 70 (2) Axial Power map (See "Axial Power Map" on page 64.) Operation: • When tapped, the image is enlarged. (See "ENLARGEMENT DIS- PLAY" on page 79.) (3) Instantaneous Power map The corneal refractive power is displayed by a local power distribu- tion.
  • Page 71 COMPONENT MAP DISPLAY This map displays the entire eye, cornea, behind the cornea (internal) and important compo- nents of high order aberration. In the map, components are tabulated; 3rd-order and 4th-order aberrations are displayed ver- tically, and ocular, corneal and internal aberrations vertically. (4) Corneal HOA map (3) Astigmatism map (5) Third-order display...
  • Page 72 (6) Fourth-order display Fourth-order aberrations of Zernike coefficient are displayed (Tet- rafoil, 2nd Astig. and Spherical aberration). (7) Ocular display Aberration of the whole eyeball obtained from the Hartmann image is displayed in 3rd and 4th-order. (8) Corneal display Aberration of the cornea surface obtained from the Placido image is displayed in 3rd and 4th-order.
  • Page 73 (3) Ocular HOA map (See "Ocular High Order Aberration Map" on page 65.) Operation: • When tapped, the image is enlarged. (See "ENLARGEMENT DIS- PLAY" on page 79.) • The map display step can be changed. (See "SETTING THE HIGH ORDER ABERRATION ASTIGMA MAP DISPLAY STEP"...
  • Page 74 (2) Measurement Result Values of aberration in the first and last measurements are dis- played. (3) Total HOA graph The horizontal axis shows the number of measurements and the ver- tical axis the value of HOA (High Order Aberration). The expression at the top right of the graph indicates the approxi- mated primary line.
  • Page 75 (2) Axial Power map (See "Axial Power Map" on page 64.) Operation: • When tapped, the image is enlarged. (See "ENLARGEMENT DIS- PLAY" on page 79.) (3) Ocular total aberration map (See "Ocular Total Aberration Map" on page 64.) Operation: •...
  • Page 76 (11) Display of corneal astigmatic power The value of corneal astigmatic power may be used as information for making a decision in applying a bifocal IOL. The operation image can be enlarged. Operation: • When tapped, the image is enlarged. (See "ENLARGEMENT DIS- PLAY"...
  • Page 77 (3) Ocular HOA map (See "Ocular High Order Aberration Map" on page 65.) Operation: • When tapped, the image is enlarged. (See "ENLARGEMENT DIS- PLAY" on page 79.) • The map display step can be changed. (See "SETTING THE HIGH ORDER ABERRATION ASTIGMA MAP DISPLAY STEP"...
  • Page 78 When the Pupillometry screen is selected, of the data measured by Scotopic, data with the largest change in pupil diameter are selected and displayed. To change the display to other maps: Tap the Layout change button. (1) Mire Image (Scotopic) (See "Mire image"...
  • Page 79 CORNEAL R/L MAP The Corneal R/L map can be displayed. Layout Change button Left eye Right eye Typical KRT value (2) Data Feed button (1) Mire Image (3) KRT value (4) Measurement value To change display: Tap the Layout Select button, the rightmost button of layout change buttons, and tap the CORNEAL R/L MAPS but- ton of the displayed pull-down menu.
  • Page 80 OCULAR R/L MAP The Ocular R/L map can be displayed. Layout Change button Left eye Right eye Typical REF value (1) Data Feed button (2) Ocular HOA map (4) Landolt's ring simulation (5) Hartmann image (3) REF value (6) Measurement value To change display: Tap the Layout Select button, the rightmost button of layout change buttons, and tap the OCULAR R/L MAPS button...

  • Page 81: Enlargement Display

    (5) Hartmann image (See "Hartmann image" on page 64.) Operation: • When tapped, the image is enlarged. (See "ENLARGEMENT DIS- PLAY" on page 79.) • When dragged in the right direction, the overlay can be changed. (See page 83.) (6) Measurement valueThe measured pupil diameter, and the coma aberration, spherical aberration, total high order aberration, and S/C/A values in 4.00mm and 6.00mm analysis zones are displayed.
  • Page 82 EXAMPLE: HIGH ORDER ABERRATION The following items are displayed at the top left Map settings of the screen: • Coordinate values (distance and angular direction from the center) • Aberration value Near the "Map Setting" displayed on the right, the following display setting can be done: •...
  • Page 83 • Display unit By pressing the button, the display unit is changed to "mm" or "D." • Scale type Each time the button is pressed, "Absolute," "Adjustable" and "Normalized" are changed. • Step The display step is set. The contents and method of setting are the same as "Example: Total Aberration." •...

  • Page 84: Analysis Setting Menu

    Near the "Map Setting" displayed on the right, the following display setting can be done: • Hartmann detection point overlay (Hartmann image) When turned on, Hartmann detection point is displayed with a yellow cross scale. • Hartmann detection grid overlay (Hartmann image) When turned on, Hartmann detection grid is displayed with a white square.
  • Page 85 SETTING OVERLAY OF HARTMANN IMAGE, MIRE IMAGE EXAMPLE: HARTMANN IMAGE The image used for point image detection can be confirmed. (Example: Overlay display) Operation: • When the image is tapped and dragged to the right, the overlay condition can be changed as None Cross Enclose with square...

  • Page 86: Topomap Smoothing Function

    TOPOMAP SMOOTHING FUNCTION The Topo-map smoothing function performs analyses by changing the production algorithm of map information of the Axial Power map and Instantaneous Power map. OPERATION Tap the SETTINGS button and enter the SETTINGS screen. Set Condition button Tap the of the set item display "TopoMap Smoothing"...

  • Page 87: Topomap Overlay And Maker Overlay

    TOPOMAP OVERLAY AND MAKER OVERLAY When the corneal Mire image is enlarged and displayed from the Corneal Aberration map and IOL Selection map, the TopoMap overlay and Maker overlay can be set by the "Map Setting" displayed on the right. When the corneal Mire image is enlarged and displayed from the Corneal aberra- tion map and IOL selection map, the overlay cannot be changed by dragging the image.

  • Page 88: Iol Threshold Setting Of Iol Selection Map

    IOL THRESHOLD SETTING OF IOL SELECTION MAP Each of the "Corneal Irregular Astigmatism (high order aberration)," "K Readings," "Corneal SA" and "Corneal Astig." displayed on the IOL Selection map is displayed by changing the character color when the measurement result exceeds the set threshold value. * The character color cannot be specified.
  • Page 89 K Readings: • In each of the following cases, the character color is changed based on the set threshold K value: • When the K value is within the set value range • When the K value is outside the set value range The threshold value can be set between 0.00 and 100.00 in 0.01 unit.

  • Page 90: Description About Measurement Results

    DESCRIPTION ABOUT MEASUREMENT RESULTS Here the data display of measurement results is described. ANALYSIS CENTER In the analysis result, data analyzed with the detected pupil center as the analysis center is displayed. If the pupil is not detected, the pupil diameter is not displayed. In this case, data obtained by analyzing with the mechanical center (the main body's alignment sight) as the analysis center is displayed.

  • Page 91: Description About Rms Display Of Corneal Aberration

    (1) Analysis results in 4mm analysis zone are displayed (up to 4th order). (2) Analysis results in 6mm analysis zone are displayed (up to 6th order). (3) (Green frame) Analysis results with the measured pupil diameter or the specified analysis diameter are displayed (default: pupil diameter). The analysis order can be set between 3rd order and 10th order.
  • Page 92 Diameter S3+S5 S4+S6 Total 3rd-order 4th-order Total higher-order 4.00mm ––– ––– ––– ––– aberration RMS 3rd-order 4th-order 5th-order 6th-order 3rd+5th-or- 4th+6th-or- Total higher-order 6.00mm der RMS der RMS aberration RMS 3rd-order 4th-order Total higher-order (7.00mm) aberration RMS (1) Analysis results in 4mm analysis zone are displayed (up to 4th order). (2) Analysis results in 6mm analysis zone are displayed (up to 6th order).
  • Page 93 DISPLAY OF DIRECTION The direction is defined as follows. Element Example Definition of direction Range of angle Shown by the angle of blue area (direction where wave- front is late). Trefoil 0-120 90° when blue area is higher. Shown by the angle of red area (direction where wave-front is advanced).
  • Page 94 (REFERENCE) WAVEFRONT AND ZERNIKE COEFFICIENTS Zernike coefficients, meaning and classification are shown below. Coefficient Meaning/Classification sin2ϕ order Astigmatism Defocus cos2ϕ order Astigmatism sin3ϕ Trifoil - 2r) sinϕ Coma Y - 2r) cosϕ Coma X cos3ϕ Trifoil sin4ϕ - 3r ) sin2ϕ Order Astigmatism - 6r Spherical aberration...
  • Page 95 SHAPE OF ABERRATION Map shapes as aberration of each coefficient are shown. Z1-1 Z2-2 Z2-2 Z3-3 Z3-1 Z3-1 Higher order aberration Coma aberration Z4-2 Z4-4 Z4-2 Spherical aberration DISPLAYING THE MEASUREMENT RESULT...
  • Page 96 REFERENCE • PSF (Point Spread Function) PSF is defined as the power distribution of a point image, and in this simulation it shows a focused image of light on the retina. Ideally, the image is focused on one point, but actu- ally due to aberrations in the optical system of the eye, including diffraction, it is not focused on one point and observed with extension, even using an ideal lens.

  • Page 97: Function Setting Using Settings Screen

    FUNCTION SETTING USING SETTINGS SCREEN OPERATION METHOD OF SETTINGS SCREEN Various functions can be set on the SETTINGS screen. PREPARATIONS FOR SETTING Make sure that the power cable is connected. For connection, see "CONNECTING THE POWER CABLE" on page 27. Turn ON the POWER switch .
  • Page 98 OUTLINE OF SETTINGS SCREEN OPERATIONS Tap the Index and select a relevant subject. 1/ 3 MEASURE Init Measure Mode Init Auto INITIAL R-L Measure DISPLAY Cont. Cycle PRINT INT Cont. Fog PRINT EXT Finish Mode COMM Target Brightness NETWORK SPECIAL ZernikePD EXIT Page Feed button...
  • Page 99 RETURNING TO THE MEASUREMENT SCREEN Tap the EXIT button. Finish Mode COMM Target Brightness NETWORK SPECIAL ZernikePD EXIT The MEASUREMENT screen is displayed. FUNCTION SETTING USING SETTINGS...

  • Page 100: List Of Setup Items

    LIST OF SETUP ITEMS Setup items are formed with eight indexes for each subject. "MEASURE" Set items related to measurement functions "INITIAL" Set items related to the initial status after power on "DISPLAY" Set items related to screen display "PRINT INT" Set items related to output from the internal printer "PRINT EXT"...
  • Page 101 INITIAL (INITIAL SETTING) INITIAL contains settings related to the initial status after power on, clearing all measure- ment values, etc. Set item display Setting Change button Set contents Initial value Page Init Measure MEASUREMENT mode upon power on is set to REF/KRT Mode REF/KRT mode.
  • Page 102 Set item display Setting Change button Set contents Initial value Page Auto Print After finishing R-L auto measurements, results are printed out automatically. Not printed automatically. Internal Printer Internal printer is used. Internal printer is not used. External Printer External printer is used. External printer is not used.
  • Page 103 DISPLAY (DISPLAY SETTING) DISPLAY performs setting related to screen display. Set item display Setting Change button Set contents Initial value Page Custom map Set by special input Layout used for screen display and printing can be screen. set/registered up to 4 types. Change D/mm Results of KRT measurement is displayed in D (diopter).
  • Page 104 Set item display Setting Change button Set contents Initial value Page Total Aberration When analysis results are initially displayed, total Map Overlay - aberration map overlay (mm grid scale) is displayed. mm Grid Scale When analysis results are initially displayed, total aberration map overlay (mm grid scale) is not displayed.
  • Page 105 Set item display Setting Change button Set contents Initial value Page Optotype of Set by ten-key display. Optotype of Landolt's ring simulation 1 (upper) is set. Landolt's ring 10 to 200 (changeable with 10 steps) simulation 1 (Upper) Optotype of Set by ten-key display.
  • Page 106 Set item display Setting Change button Set contents Initial value Page Map of analysis Multi map Layout 1 of measurement result screen is set to Multi Maps screen layout Multi Maps. button 1 Ocular aberration map Layout 1 of measurement result screen is set to ocular aberration maps (Ocular Maps).
  • Page 107 TOPCON Logo TOPCON logo is displayed in printout. TOPCON logo is not displayed in printout. SETTING OF EXTERNAL PRINTER (PRINT EXT) PRINT EXT contains settings related to output from the external printer. For details, see page 147.
  • Page 108 When DATA OUT button is pressed, internal printing is done, but REF/KER data are not outputted to the connected PC. KR-1W Set by ten-key display. IP address of KR-1W is set. NONE IP address KR-1W Set by ten-key display. Subnet mask of KR-1W is set.

  • Page 109: Measure (Temporary Setting)

    MEASURE (TEMPORARY SETTING) MEASURE contains settings related to measurement functions that may be temporarily changed. Unlike initial setting, this function is used for performing measurements temporarily under cer- tain conditions. After power on or after clearing all measurement values, the system returns to the initial sta- tus.
  • Page 110 SETTING OF AUTO MODE Measurement by Full Auto, Auto Tracking or Manual mode can be set. Before shipment the setting is Full Auto. Tap the Set Condition button of the set item display "Auto Mode" of "MEASURE." Tap the Setting Change button and select either "FULL AUTO," "AUTO TRACKING" or "MANUAL."...
  • Page 111 SETTING OF IOL MODE (ERROR-FREE MODE) Whether to set the IOL mode for each exposure time or not to set the IOL mode can be selected. Before shipment, the default setting is OFF. Tap the Set Condition button of the set item display "IOL Mode" of "MEASURE." Tap the Setting Change button and select either "OFF,"...
  • Page 112 CHANGING THE ASTIGMA SIGN The display style of astigma sign can be changed. Before shipment, the default setting is "-." Tap the Set Condition button of the set item display "Cyl Sign" of "MEASURE." Tap the Setting Change button and select the applicable astigma sign. Setting is done.

  • Page 113: Initial Setting (Initial)

    INITIAL SETTING (INITIAL) INITIAL contains settings related to the initial status upon power on. Measurement functions including measurement mode, auto mode and the number of continuous measurements, as well as the display of the measurement results, the date and language can be set. Tap the index "INITIAL"...
  • Page 114 SETTING OF AUTO MODE (INIT AUTO) The initial start mode, at power on, can be set. Before shipment, the default setting is "FULL AUTO." Tap the Set Condition button of the set item display "Init Auto" of "INITIAL." Setting Change button Tap the and select "Full Auto,"...
  • Page 115 FOGGING DURING CONTINUOUS MEASUREMENT (CONT. FOG) When multiple measurements are selected for setting the number of continuous measure- ments, the option to perform fogging in ONLY the first measurement or to perform fogging for each measurement may be selected. Before shipment, the default setting is "ALWAYS." Tap the Set Condition button of the set item display "Cont.
  • Page 116 SETTING THE BRIGHTNESS OF FIXATION TARGET (TARGET BRIGHTNESS) The brightness of fixation target can be set at 4 different steps. Before shipment, the default setting is Level 3. Tap the Set Condition button of the set item display "Target Brightness" of "INITIAL." Setting Change button Tap the and select the brightness of fixation target.
  • Page 117 SETTING THE ZERNIKE PD The Zernike PD can be set. Before shipment, the default setting is "Use pupil." Tap the Set Condition button of the set item display "Zernike PD" of "INITIAL." Enter the number by the ten-key display of the Setting Change button . Setting is done by tapping the OK button .
  • Page 118 SETTING AUTO PRINT After measuring the right and left eyes under auto mode, the results can be printed automati- cally by the internal printer. Before shipment, the default setting is "ON" (Auto Print). Tap the Set Condition button of the set item display "Auto Print" of "INITIAL." SETTINGS 2/ 3 MEASURE...
  • Page 119 KR Out TV EXIT Setting is complete. For the available external printers, contacts your dealer or TOPCON as shown on the back cover. RESETTING THE PATIENT ID (PATIENT ID RESET) It is possible to set whether or not to reset the patient ID upon power on. Before shipment, the default setting is "ON."...
  • Page 120 SETTING THE PATIENT ID It is possible to set the initial value for patient ID (which is set upon power on, when tapping the CLEAR button when the setting of "Resetting the Patient ID" is "ON," or when pressing the MEASUREMENT switch after printing/outputting measurement values).
  • Page 121 SETTING THE BUZZER SOUND (BUZZER) The buzzer sound can be set. Before shipment, the default setting is "ON" (Buzzer sounds). Tap the Set Condition button of the set item display "Buzzer" of "INITIAL." Setting Change button Tap the and select "ON" (Buzzer sounds) or "OFF" (Buzzer does not sounds).
  • Page 122 SETTING THE DATE AND TIME (DATE/TIME) Date and time can be set. Tap the Set Condition button of the set item display "Date/Time" of "INITIAL." Tap and select the item to be set (year, month, day, hour, minute, second), and enter the number from the ten-key display shown below.
  • Page 123 SETTING THE LCD BRIGHTNESS Brightness of the LCD can be set. Before shipment, the default setting is "0." Tap the Set Condition button of the set item display "LCD Brightness" of "INITIAL." Down Setting Change button of the and set the brightness. Setting is done by tapping the OK button .
  • Page 124 PACKING MODE Set the instrument (KR-1W) to the packing position (as-delivered condition). Tap the Set Condition button of the set item display "Packing Mode" of "INITIAL." A message "Run the Packing mode?" is displayed. When "Yes" is selected, the operation starts automatically. A message "Wait until the packing operation is completed."...
  • Page 125 PROGRESS MEASUREMENT Progress measurement can be set. Before shipment, the default setting is OFF (Do not per- form progress measurement). Tap the Set Condition button of the set item display "Progress Measure" of the SET- TINGS screen "INITIAL." Setting Change button Tap the and select "ON"...

  • Page 126: Display Setting (Display)

    DISPLAY SETTING (DISPLAY) Display menu contains settings related to screen display. Tap the index "DISPLAY" of the "SETTTINGS screen." To quit the screen: EXIT button . • Tap the • The "SETTTINGS screen" is quitted and the "MEASUREMENT screen" is returned.
  • Page 127 Select the map(s) to be placed in the preview display. Touch the Layout candidate item display scroll bar and display the items to be placed in the Layout candidate item display area . Place the items selected onto the preview display by direct tap & drag from the Layout candidate item display area .
  • Page 128 CHANGING THE D/mm DISPLAY (CHANGE D/mm) The display sequence of the KRT measurement result displayed on the control panel screen can be selected from D (cornea refractory power) or mm (cornea radius curvature). Before shipment, the default setting is "D." Tap the Set Condition button of the set item display "Change D/mm"...
  • Page 129 SETTING THE PLACID RING DETECTION OVERLAY (PLACID OVERLAY) When analysis results are initially displayed, Placido Ring Detection Overlay can be set to ON or OFF. Before shipment, the default setting is "OFF." Tap the Set Condition button of the set item display "Placid Overlay" of "DISPLAY." Setting Change button Tap the and select "ON"...
  • Page 130 SETTING THE HARTMANN DETECTION POINT OVERLAY (HARTMANN POINT OVERLAY) When analysis results are initially displayed, Hartmann Detection Point Overlay can be set to ON or OFF. Before shipment, the default setting is "OFF." Tap the Set Condition button of the set item display "Hartmann Detection Point Overlay" of "DISPLAY."...
  • Page 131 Setting Change button Tap the and select "ON" or "OFF." Setting is complete. SETTING THE TOTAL ABERRATION MAP OVERLAY - mm GRID SCALE When analysis results are initially displayed, Total Aberration Map Overlay - mm Grid Scale can be set to ON or OFF. Before shipment, the default setting is "OFF." Tap the Set Condition button of the set item display "Total Aberration Map Overlay - mm Grid Scale"...
  • Page 132 SETTING THE HIGH ORDER ABERRATION ASTIGMA MAP OVERLAY - ANGLE SCALE When analysis results are initially displayed, Higher Order Aberration Astigma Map Overlay - Angle Scale can be set to ON or OFF. Before shipment, the default setting is "ON." Tap the Set Condition button of the set item display "HOA.
  • Page 133 SETTING THE CENTER VALUE WHEN TOPOMAP SCALE TYPE IS ADJUSTABLE (TOPOMAP SCALE - ADJUSTABLE) The center value when the TopoMap scale type is Adjustable is set. The value can be set between 30.00D and 50.00D with 0.50D steps. Before shipment, the default setting is "47.50." Tap the Set Condition button of the set item display "TopoMap Scale - Adjustable"...
  • Page 134 SETTING THE TOPOMAP OVERLAY - ANGLE SCALE When analysis results are initially displayed, TopoMap Overlay - Angle Scale can be set to ON or OFF. Before shipment, the default setting is "ON." Tap the Set Condition button of the set item display "TopoMap Overlay - Angle Scale" of "DISPLAY."...
  • Page 135 SETTING THE OPTOTYPE OF LANDOLT'S RING SIMULATION 2 (MIDDLE) The optotype of Landolt's Ring Simulation 2 (Middle) is set. Before shipment, the default set- ting is "40 (20/40)." Tap the Set Condition button of the set item display "Optotype of Landolt's Ring Simula- tion 2 (Middle)"...
  • Page 136 SETTING THE DISPLAY STEP OF SPHERICAL/CORNEAL REFRACTIVE POWER (SPH STEP) The display step of spherical/corneal refractive power can be set to 0.01D, 0.12D or 0.25D. Before shipment, the default setting is 0.25D. Tap the Set Condition button of the set item display "Sph Step" of "DISPLAY." Tap the Setting Change button and select "0.25D,"...
  • Page 137 TOPOMAP SMOOTHING To perform topo-map smoothing or not is set. Before shipment, the default setting is "OFF." Tap the Set Condition button of the set item display "TopoMap Smoothing" of the SET- TINGS screen "DISPLAY." Tap the Setting Change button and select "ON" or "OFF." The setting is complete.
  • Page 138 SETTING THE MAP OF ANALYSIS SCREEN LAYOUT BUTTON 2 The map to be placed in the Layout Change button of the Analysis Result screen can be selected. Before shipment, the default setting is "Ocular Maps." Tap the Set Condition button of the set item display "Map of analysis screen layout but- ton 2"...
  • Page 139 • When the measurement value is more than the threshold value of Corneal Irregular Astig- matism 2 Threshold value of Corneal Irregular Astigmatism 1: Lowest setting of corneal irregular astig- matism threshold value Threshold value of Corneal Irregular Astigmatism 2: Highest setting of corneal irregular astig- matism threshold value The threshold value can be set between 0.00 and 100.00 in 0.01 unit.
  • Page 140 SETTING THE THRESHOLD VALUE OF CORNEAL SPHERICAL ABERRATION The threshold value of corneal spherical aberration in the IOL Selection map is set: • In the following case, the character color is changed based on the set threshold value of corneal spherical aberration: •...

  • Page 141: Setting Of Internal Printer (Print Int)

    SETTING OF INTERNAL PRINTER (PRINT INT) PRINT INT menu contains settings related to output from the internal printer. Tap the index "PRINT INT" of the "SETTTINGS screen." Set items of "PRINT INT" are dis- played. SETTINGS MEASURE Barcode Print Name INITIAL Date DISPLAY...
  • Page 142 Tap the Setting Change button and select "ON" (Print date) or "OFF" (Do not print date). When the built-in battery runs out, the date is not printed and "DATE" is printed instead. For battery change, contact your dealer or TOPCON shown on the back cover.
  • Page 143 PRINTING THE PATIENT ID (PATIENT ID OUT PRINT) The patient ID can be displayed on the printout. Before shipment, the default setting is "ON" (Print patient ID). Tap the Set Condition button of the set item display "Patient ID Out Print" of "PRINT INT."...
  • Page 144 PRINTING THE VD VALUE (VD) The VD value (vertex distance) can be displayed on the printout. Before shipment, the default setting is "ON" (Print VD value). Tap the Set Condition button of the set item display "VD" of "PRINT INT." SETTINGS MEASURE Barcode Print...
  • Page 145 PRINT SEQUENCE (PRINT R/L) The print sequence can be selected. Before shipment, the default setting is "DATA" (Print REF and KRT measurement values separately). Tap the Set Condition button of the set item display "Print R/L" of "PRINT INT." SETTINGS MEASURE Barcode Print DATA...
  • Page 146 KRT Average PRINT INT D/mm Data Order PRINT EXT KRT CYL COMM TOPCON Logo NETWORK SPECIAL EXIT Tap the Setting Change button and select "ON" (Print SE values) or "OFF" (Do not print SE values). Setting is complete. PRINTING PD VALUES (PD DATA) PD values (cornea peak distance) can be printed.
  • Page 147 KRT Average PRINT INT D/mm Data Order PRINT EXT KRT CYL COMM TOPCON Logo NETWORK SPECIAL EXIT Tap the Setting Change button and select "ON" (Print average values) or "OFF" (Do not print average values). Setting is complete. FUNCTION SETTING USING SETTINGS...
  • Page 148 TOPCON logo can be printed. Before shipment, the default setting is "ON" (Print TOPCON logo). Tap the Set Condition button of the set item display "TOPCON Logo" of "PRINT INT." Tap the Setting Change button and select "ON" or "OFF."...

  • Page 149: Setting Of External Printer (Print Ext)

    SETTING OF EXTERNAL PRINTER (PRINT EXT) PRINT EXT menu contains settings related to output layout of the external printer. The output layout can be registered up to 4 types. Before shipment, Multi map is placed at the upper stage and Component map is placed at the lower stage. Tap the index "PRINT EXT"...

  • Page 150: Setting Of Data Communication (Comm)

    SETTING OF DATA COMMUNICATION (COMM) COMM menu contains settings related to data input/output with the external device via the RS232C. Tap "COMM" of the index of the "SETTTINGS screen." The Data communication setting screen is displayed. SETTINGS 1/ 1 MEASURE RS-232C Output Data INITIAL...
  • Page 151 To output all data of REF and KRT measurements, select "STD2." Setting is complete. For questions about the RS-232C communication format, contact your dealer or TOPCON, as shown on the back cover. To output data from the USB output terminal, STD1 or STD2 is used regardless of the setting here.
  • Page 152 SETTING THE SPEED OF RS-232C COMMUNICATION (RS BAUDRATE) The speed (baud rate) of RS-232C communication can be set. Before shipment, it is set to "2400" (baud rate 2400). Tap the Set Condition button of the set item display "RS Baudrate" of "COMM." SETTINGS 1/ 1 MEASURE...

  • Page 153: Lan Connection (Network)

    LAN CONNECTION (NETWORK) NETWORK menu contains settings related to data input/output of the LAN. Tap the index "NETWORK" of the "SETTTINGS screen." The LAN Connection screen is displayed. SETTING THE DATA TRANSFER METHOD The data transfer method can be set. Before shipment, the default setting is "TCP/IP Trans- fer".
  • Page 154 SETTING THE SCREEN SHOT OUTPUT Screen shot is a function that allows the Analysis Result screen to be output. In KR-1W, the Analysis Result screen displayed on the main body is outputted in the bit map style. DATA OUT button...
  • Page 155 SETTING THE KR-1W SUBNET MASK The subnet mask of KR-1W can be set. Tap the Set Condition button of the set item display "KR-1W Subnet Mask" of "NET- WORK. " Using the ten-key display of the Setting Change button , enter the same subnet mask as that of the PC to be connected.

  • Page 156: Maintenance And Checking

    MAINTENANCE AND CHECKING DAILY MEAINTENANCE CHECKING THE MEASURING ACCURACY Using the model eye provided with the instrument, check the measurement accuracy at regu- lar intervals. Keep this instrument free of dust. When not in use, put the measuring lens cap and dust cover on.

  • Page 157: Replacing The Fuse

    REPLACING THE FUSE To avoid electric shock when replacing the fuse, be sure to unplug the instrument before removing the fuse cover. Do not WARNING use ungrounded outlets. Do not plug in the instrument without the fuse cover. Make sure the power is OFF and the power cable is unplugged. Press the fuse holder with a screwdriver and turn it counterclockwise.

  • Page 158: Special Note Of Cleaning

    SPECIAL NOTE OF CLEANING CLEANING THE OUTER COVER AND MONITOR SCREEN Do not use or apply any spray-type cleaner near the instrument. If the cleaner remains inside the measuring nozzle, the CAUTION patient's eye may be injured during measurement. If outer covers, control panel screen and the operation panel are stained, clean them with a soft dry cloth.

  • Page 159: Before Requesting Service

    If a problem is suspected, perform checks following the Check List shown below. If the problem does not improved by the suggested remedy or if it is not described in the list, call your dealer or TOPCON, printed on the back cover of this manual. CHECK LIST...

  • Page 160: Message List

    OK button and DATA OUT button after you set the paper." "Unable to connect the Displayed when the KR-1W data output is turned ON and the network." DATA OUT button is pressed, without connecting the PC. "Failed to send the data via Ethernet data transmission has failed.
  • Page 161 "Unable to set KR1W IP address of KR-1W could not be changed. network setting." "The specified IP address Change the IP address of KR-1W to another address. already exists. please change to another address." "Unable to write the setting Displayed when the saving of setting was not successful. (Setup) data."...

  • Page 162: Optional Accessories

    OPTIONAL ACCESSORIES Automatic instrument table AIT-16 Because the instrument height can be adjusted to the desired position, you can take a picture more easily. Specification • Dimensions ....525(W)x490(D)mm • Table height....660 - 880mm • Table size ....490 x 500mm • Weight ......Approx. 23kg (only the instrument body) •...

  • Page 163: Shape Of Plug

    SHAPE OF PLUG Country Voltage/frequency Shape of plug Mexico 110V/50Hz Type C&E Argentina 220V/60Hz Type A Peru 220V/60Hz Type A Venezuela 110V/50Hz Type C&E Bolivia & Paraguay Type A (Most common) 220V/60Hz Type H (infrequently) Chile 220V/60Hz Type A Colombia 110V/50Hz Type C Brazil...

  • Page 164: Rs232C Communication Specifications

    RS232C COMMUNICATION SPECIFICATIONS BASIC SPECIFICATION EIA RS232C CONNECTOR TYPE DIN 8-pin TCS0838-0120577 (HOSIDEN): Instrument side INPUT TERMINAL PIN ARRANGEMENT DIN 8pin - D-sub 9pin connection KR-1W side External Code Description device side SD (TXD) Data transmission RD (RXD) Data receiving...
  • Page 165 DIN 8pin - DIN 8pin connection KR-1W side External Code Description device side SD (TXD) Data transmission RD (RXD) Data receiving RS (RTS) Request transmission CS (CTS) Transmission ready DR (DSR) Data set ready SG (GND) Signal grounding ER (DTR)

  • Page 166: Specifications

    SPECIFICATIONS SPECIFICATION AND PERFORMANCE Range of Refractory Measurement Spherical refractive power: -25 to +22D (0.01D/0.12D/0.25D steps) ± Cylindrical refractive power: 0D to 10D (0.01D/0.12D/0.25D steps) ° ° ° Direction of astigmatic axis: 0 to 180 steps) (where, spherical refractive power + cylindrical refractive Range of Cornea Curvature ≤...
  • Page 167 ENVIRONMENTAL CONDITIONS FOR PACKAGING IN STORAGE ENVIRONMENTAL CONDITIONS (WITHOUT PACKAGE) Temperature: +10°C to +40°C Humidity: 30% to 90%RH (without condensation) Atmospheric pressure: 700hPa to 1060hPa ENVIRONMENTAL CONDITIONS OF STORAGE (Product unprotected, ready for operation, power supply not connected) *Temperature: +10°C to +40°C Humidity: 10% to 95%RH (without condensation) Atmospheric pressure: 700hPa to 1060hPa * THIS INSTRUMENT DOES NOT MEET THE TEMPERATURE REQUIREMENTS OF ISO...

  • Page 168: Electromagnetic Compatibility

    Guidance and manufacturer's declaration - electromagnetic emissions The KR-1W is intended for use in the electromagnetic environment specified below. The customer or the user of the KR-1W should assure that it is used in such an environment. Emissions test Compliance...
  • Page 169 Guidance and manufacturer's declaration - electromagnetic immunity The KR-1W is intended for use in the electromagnetic environment specified below. The customer or the user of the KR-1W should assure that it is used in such an environment. Immunity test IEC 60601...
  • Page 170 Guidance and manufacturer's declaration - electromagnetic immunity The KR-1W is intended for use in the electromagnetic environment specified below. The customer or the user of the KR-1W should assure that it is used in such an environment. Immunity test IEC 60601...
  • Page 171 Recommended separation distance between portable and mobile RF communications equipment and the KR-1W The KR-1W is intended for use in an electromagnetic environment in which radiated RF distur- bances are controlled. The customer or the user of the KR-1W can help prevent electromag-...

  • Page 172: Dimensions And Weight

    DIMENSIONS AND WEIGHT Dimensions: 304(W)x521(D)x474-504(H)mm Weight: 23kg PURPOSE OF USE To measure the refractive power of the eye with a function of cornea topography, and to present the measurement data to the eye care professional. OPERATIONS AND PRINCIPLE OF OPERATION To receive light flux from a secondary light source, projected from a light source (point light source) placed at a position conjugate to the eyeground and formed on the retina, by a CMOS sensor through a Hartmann board (formed with a two-dimensionally lined small lens array), and...

  • Page 173: Safety Designations Per Iec 60601-1 Standard

    SAFETY DESIGNATIONS PER IEC 60601-1 STANDARD • Type of protection against electric shocks: Class The Class equipment provides means to connect itself to the protective grounding system of utilities to thereby independently provide protection against electric shocks by keeping con- nectable metal components nonconductive in case of a failure in the basic insulation.

  • Page 174: Terminology

    If pupil is detected, the pupil center is used. If pupil is not detected, mechanical center (cornea vertex) is used for analysis. Angle Scale Overlay KR-1W can display angles, horizontal direction as 0°, in 79,128, the aberration map. 130,132 Astig (4mm) Low order astigmatism (with 4mm analysis diameter).
  • Page 175 Used when measuring patient manually. Measuring head can be moved up/down, right/left and back/forth, and a measurement switch is attached. Control Panel Monitor screen to display patient's condition and analysis 12,14 results. As KR-1W adopts touch panel system, it is also used for operation. TERMINOLOGY...
  • Page 176 D (diopter, corneal refractive power) and mm (corneal curvature radius). DATA OUT button Function button on the measurement screen of main body. In KR-1W, this is used for printing measurement result by internal printer, or for transmitting data via net- work. Diameter Pupil diameter.
  • Page 177 IOL Mode Hartmann image may become unmeasurable on eyes wearing IOL and eyes suffering cataract. In this case, KR-1W, using IOL mode, can change cam- era's exposure time and lower error rate. IOL Selection Map (anal- Map displaying analysis information necessary for pre- ysis result display map) scribing IOL.
  • Page 178 Mire Image Image taken by CCD camera by projecting ring beam 64,81 from Placido ring to patient. mm Grid scale KR-1W can display grid on maps of measurement 81,129, results. 130,132 MTF Image Short for Modulation Transfer Function, showing the con- 74,94 trast sensitivity of eye having aberration.
  • Page 179 Page Placido ring Ring-shaped part around the measuring window of main body. In KR-1W, measuring beam is projected from Placido ring, and the measured cornea shape is calculated by receiving the ring beam reflected by patient's cornea sur- face. Power save When not used for certain period, screen saver is actu- ated and main body gets into power save status.
  • Page 180 Means dark place measurement. Screen Layout Custom layout to select and display maps and RMS as desired. In KR-1W, screen layout can be prepared up to four types. Screen Shot Output Function to data-output analysis result screen. KR-1W outputs the analysis result screen displayed in main body in bit map style.
  • Page 181 KR-1W can select the waiting position of measuring head Measurement after finishing auto mode measurement. Wave-front/PSF Image PSF is short for Point Spread Function. In the KR-1W, it is possible to see how the point light source is focused, after being completely corrected and affected by aberra- tion.

  • Page 182: End User License Agreement

    • RESTRICTED FUNCTIONALITY. You are licensed to use the SOFTWARE to provide only the limited functionality (spe- cific tasks or processes) for which the DEVICE has been designed and marketed by TOPCON. This license specifically prohibits any other use of the SOFTWARE programs or functions, or inclusion of additional software programs or func- tions that do not directly support the limited functionality on the DEVICE.
  • Page 183 that provides any of the following functionality: consumer or business tasks or processes performed by a computer or computing device, including email, word processing, spreadsheets, database, scheduling, or personal finance. • DEVICE CONNECTIONS. The SOFTWARE may not be used by more than two (2) processors at any one time on the DEVICE.
  • Page 184 For product support, please refer to TOPCON support number provided in the documentation for the DEVICE. Should you have any questions concerning this EULA, or if you desire to contact TOPCON for any other reason, please refer to the address provided in the documentation for the DEVICE.
  • Page 185 Recovery Media solely to restore or reinstall the SOFTWARE originally installed on the DEVICE. • TERMINATION. Without prejudice to any other rights, TOPCON or MS may terminate this EULA if you fail to comply with the terms and conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.
  • Page 187 When calling please give us the following information about your unit: • Instrument type: KR-1W • Manufacturing No. (Shown on the rating plate on the back of the instrument) • Period of Usage (Please give us the date of purchase.) •...
  • Page 188 WAVE-FRONT ANALYZER KR-1W 41835 97992 Printed in Japan 2010.02-100LW2...

Table of Contents
