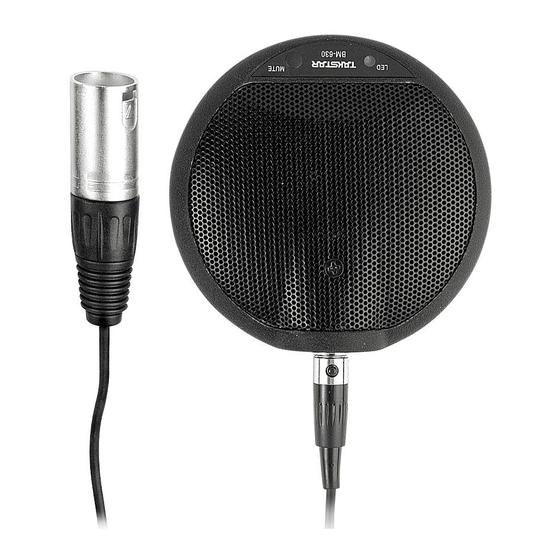

soundsation BM-630 Manual

its exceptional flat housing is a
professional boundary microphone
which is specially designed to be
incorporated in different conference
projects as well as theatre stages.
Due to a small and exquisite
modeling the microphone can be
hidden in the walls or tables. The
microphone applies a standard XLR connector and is
powered by 9V-52V phantom in order to match all kind of
audio equipment.
Specifications:
Element: Back Electret Condenser
Polar Pattern: Uni-directional
Frequency Response: 40Hz-16kHz
Sensitivity: -33dB±3dB (0dB=1V/Pa at 1kHz)
Output Impedance: 100Ω±30% (at 1kHz)
Bass Filter: 80Hz 10dB/octave
Operating Voltage：9V-52V DC Phantom
Frequency response graph:
-20
-30
-40
-50
(dBV/Pa)
-60
20 50 100 200
(Hz)
Frequency Response Graph
Connecting and disconnecting the microphone
cable:
1. Insert the XLR connector into the microphone. If
necessary, rotate the connector to align the key on the
connector and the groove in the microphone. Push the
connector into the microphone until it clicks.
To disconnect the cable and microphone, grasp the
2.
connector while depressing the tab. Pull the connector
away from the microphone.
SOUNDSATION BM-630 with
500 1K 2K 5K
BOUNDARY MICROPHONE
Usage:
1. If the head of the microphone is covered by hand or
brought close to the speaker, a howling sound may be
generated. To prevent this, first decrease the volume,
then place the microphone so that it is not pointed to the
speaker and that there is a sufficient distance between
the microphone and speaker.
2. Due to the high sensitivity of the cartridge, do not drop it
from high or apply strong shock to it.
3. To maintain the sensitivity and quality of sound
reproducing, avoid exposing it to moisture and extreme
temperatures.
Available finishing :
Black
White
20K
BM630B
BM630W
