soundsation TG100 Quick Start Manual

1.

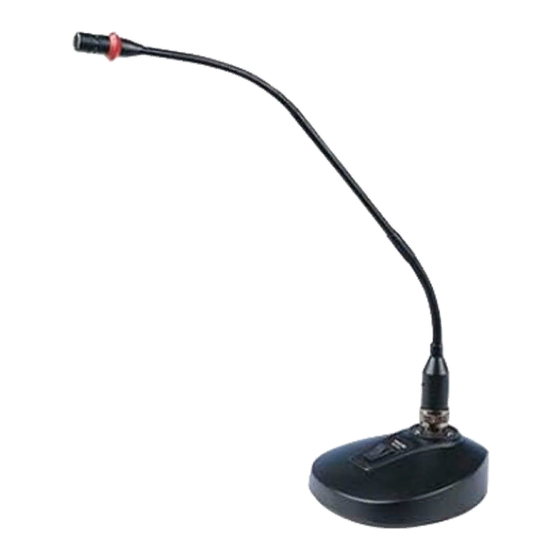

SOUNDSATION TG100 is a desktop gooseneck
microphone is a professional microphone designed
for applications such as large-scale conferences,
public addresses, outdoor speeches etc.
It adopts a back electret condenser cartridge,
which delivers bright and clear sound. This
uni-directional microphone featuring high sensitivity
and low self-noise can operate by battery power or
via phantom power received from an external device
like a mixer . Its flexible gooseneck can be adjusted
smoothly and quietly to fit any needs and situations
and a red LED conveniently mark the on-off state.
The zinc base of the microphone has been designed
with focus on stability and duration over time.

TECHNICAL SPECIFICATIONS

Element：φ9.7mm Back Electrect Condenser
Polar Pattern: Uni-directional
Frequency Response: 100Hz-13kHz
Sensitivity: -38dB±3dB(0dB=1V/Pa at 1kHz)
Output Impedance: 200Ω±30%(at 1kHz)
Operating Voltage: Phantom Power 9-52V or 3V Battery
Battery Type: AA/UM3,1.5V
-30
-40
-50
-60
(dBV/Pa)
-70
20
(Hz)

WARNING

1. Do not cover the microphone cartridge by hands or install the unit close to speakers as it may cause howling noise. If this happens, simply turn down the volume,
take the microphone further away from the speakers, and let the cartridge not face the speakers
2. Only use attachments/accessories specified by the manufacturer.
3. Unplug this apparatus during lightning storms or when unused for long periods of time.
4. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
