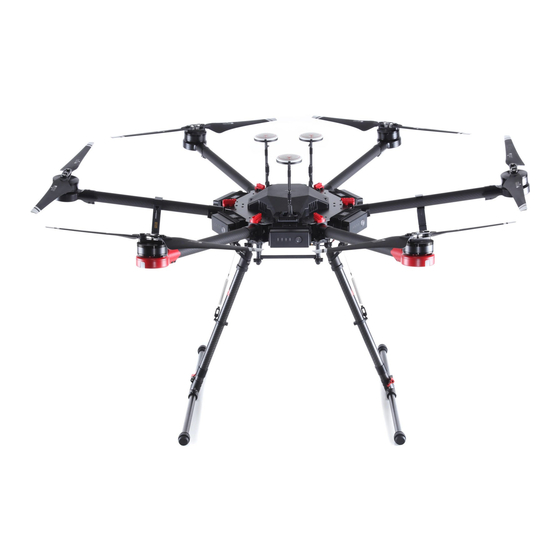

DJI MATRICE 600
User Manual
V 1.0
2015.12

Advertisement

loading
Need help?

Need help?

Do you have a question about the MATRICE 600 and is the answer not in the manual?

Questions and answers

Related Manuals for dji MATRICE 600

Summary of Contents for dji MATRICE 600

  • Page 1 DJI MATRICE 600 User Manual V 1.0 2015.12...
  • Page 2 3. Pull the cables of the frame arm through the arm stopper and the wire outlet on the lower plate of the center frame. Then insert the stopper into the arm connector. 4. Gently lift the frame arm. ©2015 DJI. All Rights Reserved.
  • Page 3 11. Double check all frame arms. Frame arms M1 and M2 are the forward facing (nose direction), frame arms M4 and M5 are facing backward. Seen from the top, motors on arms M1, M3 and M5 rotate counter clockwise while those on arms M2, M4 and M6 rotate clockwise. ©2015 DJI. All Rights Reserved.
  • Page 4 (seeing from tail)of the aircraft. 2. Align the screw holes of the connector on the center frame and the screw holes on the middle of the servo set. Insert and tighten two M3x6.5 screws (thumb). ©2015 DJI. All Rights Reserved.
  • Page 5 5. Connecting the Servo Cables. 1) Connect the left servo cable to “L” port on the control board. 2) Connect the right servo cable to “R” port on the control board. Right Servo Cable Left Servo Cable ©2015 DJI. All Rights Reserved.

  • Page 6: Mounting The Landing Gear

    Note the initial length of spring is 58.5 mm and it is stretched to 70 mm in its final position. Mounting the Lightbridge 2 Air System 1. Remove the upper cover of the center frame, four M3x6.5 screws (thumb), mounting plate and the flight controller. ©2015 DJI. All Rights Reserved.
  • Page 7 Mounting the Flight Controller 1. Connect the F1 port of the flight controller to the “IN” port of the landing gear control board via the servo cable. ©2015 DJI. All Rights Reserved.
  • Page 8 Use the included DBUS cable ONLY. Otherwise the Lightbridge 2 air system cannot function properly. 5. If using a DJI gimbal, refer to the corresponding user manual for more information on how to connect. 6. Re-mount the flight controller mounting plate with four M3x6.5 screws (thumb).
  • Page 9 2. Re-mount the lower cover of the center frame. Note that the two square holes are aligned to the two XT30 ports on the lower plate of the center frame. DO NOT damage the cables. 3. Connect the servo power cable to the XT30 port (6S LiPo) on the lower plate of the center frame. ©2015 DJI. All Rights Reserved.
  • Page 10 If the power supply is OK, other batteries will power on automatically. Otherwise, there will be a prompt on the DJI GO app. Power off just one of the batteries, and then other batteries will power off automatically. If there is a prompt on the DJI GO app, follow the tips to adjust your batteries.
  • Page 11 Press and hold the button to initiate Return to Home (RTH). [5] Transformation Switch Toggle the switch up or down to raise of lower the landing gear. [6] Battery Level LEDs Displays the current battery level. ©2015 DJI. All Rights Reserved.
  • Page 12 Circular LED around the RTH button displays RTH status. [10] Camera Settings Dial Turn the dial to adjust camera settings. Only functions when the remote controller is connected to a mobile device running the DJI GO app. [11] Playback Button Playback the captured images or videos.
  • Page 13 [18] HDMI OUT Port Connect an HD compatible monitor. [19] USB Port Connect to mobile device to access all of the DJI GO app controls and features. [20] GPS Module Used to pinpoint the location of the remote controller. [21] Back Left Button Customizable button in DJI GO app.
  • Page 14 Press to view images or videos that have already been captured. [3] Shutter Button Press to take a photo. If burst mode is activated, multiple photos will be taken with a single press. [4] Recoding Button ©2015 DJI. All Rights Reserved.
  • Page 15 The Status LED reflects connection status between Remote Controller and aircraft. The RTH LED shows the Return to Home status of the aircraft. The table below contains details on these indicators. RTH LED Status LED ©2015 DJI. All Rights Reserved.
  • Page 16 — Solid White chime Return to Home procedure begins. Blinking White D . . . Sending Return to Home command to the aircraft. Blinking White DD ..Aircraft Return to Home in progress. ©2015 DJI. All Rights Reserved.
  • Page 17 : This icon shows current aircraft system status, such as GPS signal health. [4] Battery Level Indicator : The battery level indicator dynamically displays the battery level. The color zones on the battery level indicator represent different battery levels. [5] Remote Controller Signal ©2015 DJI. All Rights Reserved.
  • Page 18 : Tap to enter the Camera Settings page and switch from camera shooting mode from manual to auto. [10] Map Display the flight path of the current mission. Tap to switch from the Camera GUI to the Map GUI. [11] Flight Telemetry ©2015 DJI. All Rights Reserved.
  • Page 19 Library Director is an intelligent video editor built into the DJI GO app. After recording several video clips and downloading them to your mobile device, go to Director on the home screen. You can then select a template and a specified number of clips which are automatically combined to create a short film that can be shared immediately.
  • Page 20 If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the DJI Store, and share your artwork with the community. ©2015 DJI. All Rights Reserved.
  • Page 21 — Solid Red Critical Error Red and Yellow Flash Alternatively Compass Calibration Required Starting/Stopping the Motors Starting Motors The Combination Stick Command (CSC) listed below are used to start the motors instead of simply pushing the stick ©2015 DJI. All Rights Reserved.
  • Page 22 Method 2: When the aircraft has landed, push the throttle down and hold. The motors will stop after 3 seconds. DO NOT perform CSC when aircraft is in midair, otherwise the motors will be stopped. ©2015 DJI. All Rights Reserved.
  • Page 23 No payload: 45 min, with payload of 5.5 kg: 18 min Hovering Time (with six TB48S batteries) * The hovering time data is based on no-wind environment, hovering at 10 m above the sea level until landing with a battery level of 10% ©2015 DJI. All Rights Reserved.
  • Page 24 10 dBm @ 900 m, 13 dBm @ 5.8 G, 20 dBm @ 2.4 G Video Output Port USB, Mini-HDMI Power Supply Built-in battery Charging DJI charger Mobile Device Holder Tablet or Smart Phone Output Power Operating Temperature Range -10 to 40°C ©2015 DJI. All Rights Reserved.
  • Page 25 Less than 3 months: -20 to 45°C Storage Temperature Range More than 3 months: 22 to 28°C Charging Temperature Range 0 to 40°C Max Charging Power 180 W Battery (Optional) Name Intelligent Flight Battery Model TB48S Capacity 5700 mAh ©2015 DJI. All Rights Reserved.
  • Page 26 680 g Operating Temperature Range -10 to 40°C Less than 3 months: -20 to 45°C Storage Temperature Range More than 3 months: 22 to 28°C Charging Temperature Range 0 to 40°C Max Charging Power 180 W ©2015 DJI. All Rights Reserved.
  • Page 27 L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ©2015 DJI. All Rights Reserved.
  • Page 28 The said legal communications means radio communications is operated in compliance with the Telecommunications Act. The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices. ©2015 DJI. All Rights Reserved.
