- Page 1 Documentation Mains choke AX2090-ND80 Accessories for multi axis servo system AX8000 Version: Date: 2018-02-26...
-
Page 3: Table Of Contents
Table of content Table of content 1 Foreword .............................. 5 Notes on the documentation...................... 5 Documentation issue status...................... 6 2 Device description............................. 7 3 Intended use .............................. 8 4 Special safety notes on brake resistors.................... 9 5 Product identification.......................... 10 6 Installing the mains chokes........................ 11 Circuit diagram and installing...................... - Page 4 Table of content Version: 1.0 Mains choke AX2090-ND80...
-
Page 5: Foreword
EP0851348, US6167425 with corresponding applications or registrations in various other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Documentation Issue Status
Foreword Documentation issue status Version Comment First publication 0.0.1 internal version Version: 1.0 Mains choke AX2090-ND80... -
Page 7: Device Description

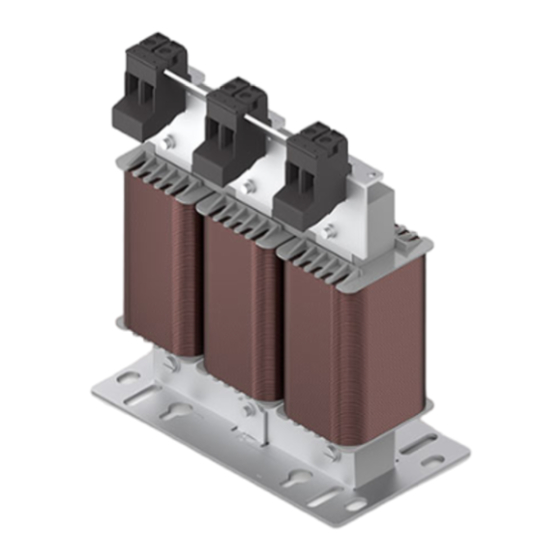

Device description Device description Infographic Article no. Description AX2090-ND80 The external mains chokes of the AX2090-ND80 series are made for minimize mains perturbation and reduce reactive power components. In addition, the mains chokes reduce charging currents in the DC link capacitor and contribute to an improvement of the cos (phi) at. -
Page 8: Intended Use
Intended use Intended use The mains chokes from the AX2090-ND80-xxxx series are intended exclusively for use directly on a supply module from the AX86xx series. They are installed together with the AX86xx supply module on a multi-axis servo system as components in control cabinets of electrical systems and machinery and may only be operated there. -
Page 9: Special Safety Notes On Brake Resistors
40 °C before touching it. WARNING UL- recognized component The mains chokes from the AX2090-ND80 series are certified according to applicable UL and CSA safety requirements. They may therefore be used in products, plants or systems bearing the UL-Listing test mark. -
Page 10: Product Identification
Product identification Product identification Name plate Pos. no. Description Article no. (Order code) Article name / product type cRUus certification logo under specification of the E no. Data matrix code CE certification logo Country of manufacture Pre-fuse European norm EN 61558 Inductance Resistance Serial no. -
Page 11: Installing The Mains Chokes
Installing the mains chokes Installing the mains chokes Caution - Risk of injury through electric shock! De-energize all electrical components (servo drive, control cabinet etc.) before commenc- ing the installation or deinstallation of the mains choke. WARNING Caution - risk of injury through high voltages! Mains chokes contain components that can store electrical charge. - Page 12 Installing the mains chokes Mechanical data AX2090-ND80- 0020 0030 Phase connection terminal screw, 4 mm² terminal screw, 10 mm² PE connection for M5 for M6 Mounting foot angle Mounting screws Version: 1.0 Mains choke AX2090-ND80...
-
Page 13: Technical Data
Technical data Technical data Environmental conditions Three-phase mains chokes AX2090-ND80 Rated voltage 3 x 400 V, -25% +10%, 50/60 Hz Overload factor 2.0 x I for 30 s Ambient temperature -10 °C to +40 °C, with 1.3% (/°C) power derating to +60 °C Mounting height 1000 m, with 6% (/1000 m) power derating to 4000 m Relative humidity... -
Page 14: Dimensional Drawing
Technical data Dimensional drawing AX2090-ND80-0020 AX2090-ND80-0040 Version: 1.0 Mains choke AX2090-ND80... -
Page 15: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
