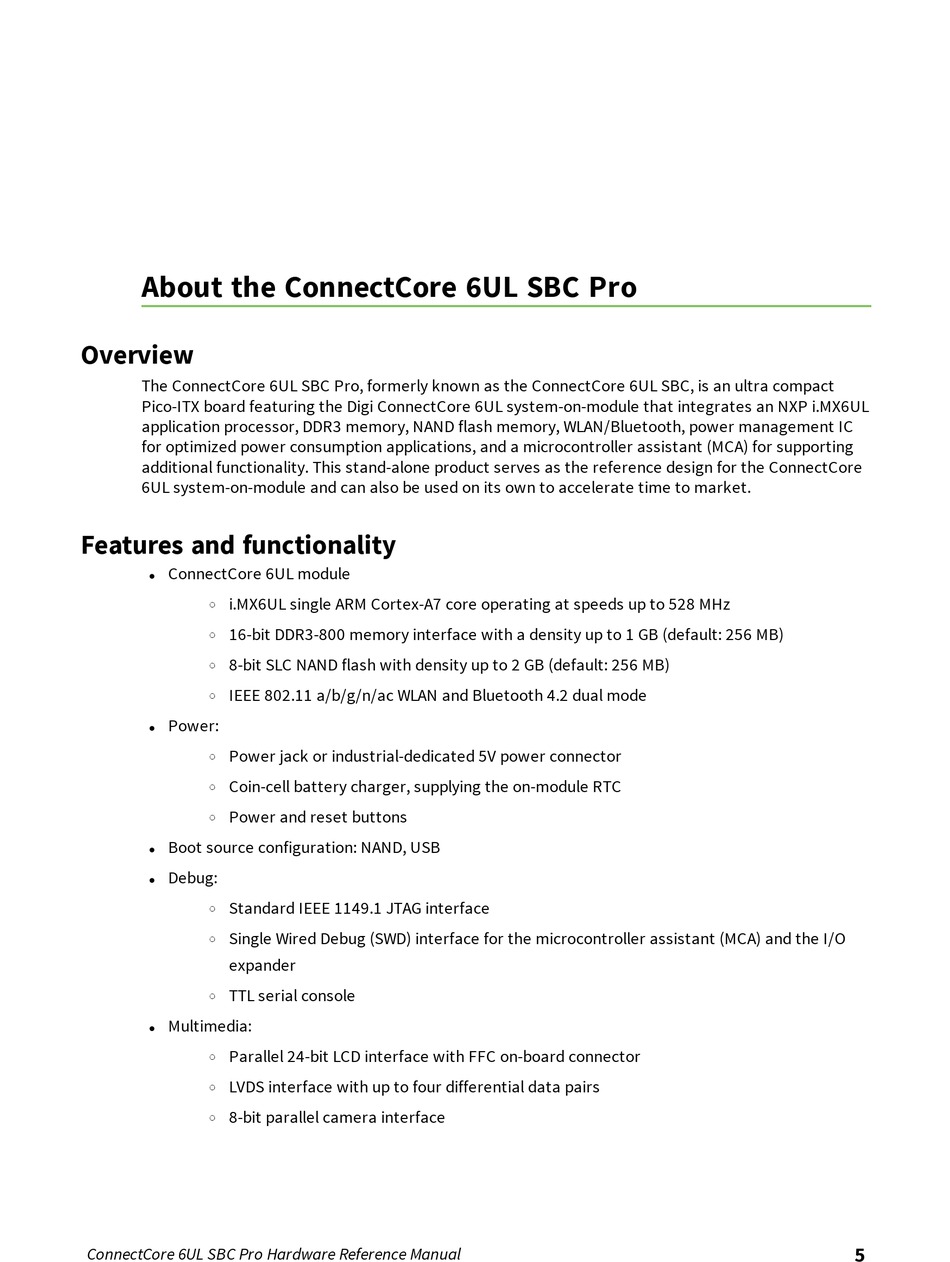

About the ConnectCore 6UL SBC Pro

Overview

The ConnectCore 6UL SBC Pro, formerly known as the ConnectCore 6UL SBC, is an ultra compact
Pico-ITX board featuring the Digi ConnectCore 6UL system-on-module that integrates an NXP i.MX6UL
application processor, DDR3 memory, NAND flash memory, WLAN/Bluetooth, power management IC
for optimized power consumption applications, and a microcontroller assistant (MCA) for supporting
additional functionality. This stand-alone product serves as the reference design for the ConnectCore
6UL system-on-module and can also be used on its own to accelerate time to market.

Features and functionality

ConnectCore 6UL module
l
i.MX6UL single ARM Cortex-A7 core operating at speeds up to 528 MHz
o
16-bit DDR3-800 memory interface with a density up to 1 GB (default: 256 MB)
o
8-bit SLC NAND flash with density up to 2 GB (default: 256 MB)
o
IEEE 802.11 a/b/g/n/ac WLAN and Bluetooth 4.2 dual mode
o
Power:
l
Power jack or industrial-dedicated 5V power connector
o
Coin-cell battery charger, supplying the on-module RTC
o
Power and reset buttons
o
Boot source configuration: NAND, USB
l
Debug:
l
Standard IEEE 1149.1 JTAG interface
o
Single Wired Debug (SWD) interface for the microcontroller assistant (MCA) and the I/O
o
expander
TTL serial console
o
Multimedia:
l
Parallel 24-bit LCD interface with FFC on-board connector
o
LVDS interface with up to four differential data pairs
o
8-bit parallel camera interface
o
