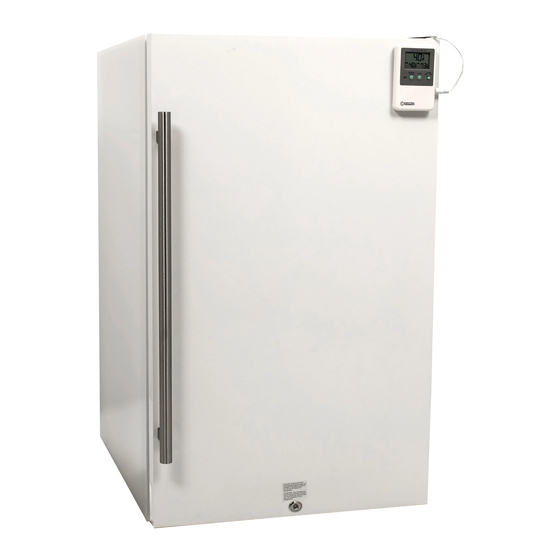

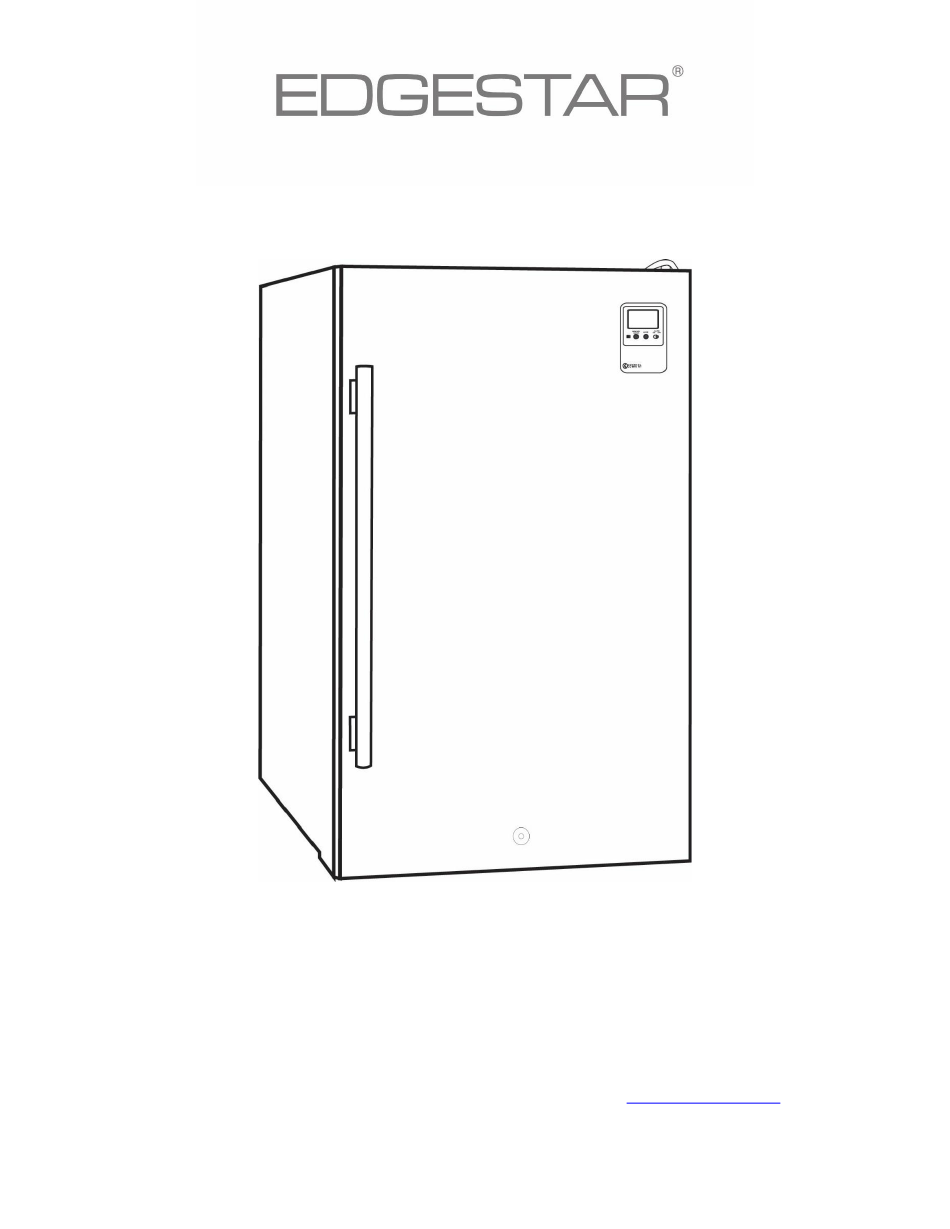

- Page 1 Precision Cooled Refrigerator RP401MED Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com V1.1 04092020...
- Page 2 Important Safety Information Improper handling can cause serious damage to the EdgeStar medical refrigerator and / or injury to the user. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit. The unit must be used in a properly grounded wall outlet.
- Page 3 General Safety • To prevent injuries, use at least two people to move and install the beverage refrigerator. • Install the beverage refrigerator in a well-ventilated area where the ambient temperature is above 50° F and below 90° F. • The temperature range for this refrigerator is optimized for beverage storage. Perishable food items may require a different storage environment.
-
Page 4: Table Of Contents
Resetting Min / Max Memories………………………………………………………………………………………………... 9 Other……………………………………………………………………………………………………………………………... 9 ………………………………………………………………………………………………………………… 9 ORMAL OUNDS ……………………………………………………………………………………………………………………… 10 EFROSTING …………………………………………………………………… 10 REPARING THE EDICAL EFRIGERATOR FOR TORAGE CLEANING AND MAINTENANCE…………………………………………………………………………………………… 10 …………………………………………………………………………………………………………….. 10 XTERIOR LEANING ……………………………………………………………………………………………………………… 10 NTERIOR LEANING TROUBLESHOOTING………………………………………………………………………………………………………… 11 SPECIFICATIONS……………………………………………………………………………………………………………… 13 EDGESTAR LIMITED WARRANTY…………………………………………………………………………………………. 14... -
Page 6: First Time Operating Instructions
Thank you for purchasing this EdgeStar medical refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 7: Parts Identification
Parts Identification Front View Back View... -
Page 8: Installing The Refrigerator
Installing the Refrigerator The refrigerator should be installed in accordance with local electrical code requirements. The unit should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. Before you plug the medical refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 9: Installation Clearance Requirements
Installation Clearance Requirements To ensure proper ventilation and service access, allow at least 3” of clearance at the sides and top of the medical refrigerator, and at least 5” of clearance at the back. Do not install this unit in a built in undercounter setting. Electrical Requirements ELECTRIC SHOCK HAZARD! •... -
Page 10: Leveling The Medical Refrigerator
Leveling the Medical Refrigerator It is important for the medical refrigerator to be level in order to work properly. It can be raised or lowered by rotating the plastic sheaths around each of the feet on the bottom of the machine. If you find that the surface is not level, rotate the feet until the medical refrigerator becomes level .You may need to make several adjustments to level it. -
Page 11: Installing And Removing The Shelves
Installing and Removing the Shelves Installing the Shelves Open the door completely. Ensure that the plastic posts are installed on the left and right sides of the shelf track onto which you are attempting to install the shelf. Lifting the rear of the shelf upwards above the shelf track, align the left and right sides of the shelf over the plastic posts mounted to the inner cabinet. -
Page 12: Using The Temperature Control Panel
Using the Temperature Control Panel Use the up and down buttons to adjust the temperature. The temperature displayed can be in Fahrenheit or Celsius. This medical refrigerator has a temperature range from 32° F to 50° F. The Temperature Display will show the unit’s set temperature. Note: Whether your precision refrigerator can reach the actual set temperature depends on the ambient environmental conditions. -
Page 13: Using The Refrigerator Thermometer And Alarm
Using the Refrigerator Thermometer and Alarm (BACK VIEW) Sampling Rate: Fast: 10 seconds Normal: 60 seconds Temperature Range: -58° F to 158° F -50° F to 70° F Note: Make sure the battery is installed before beginning operation. Operation Modes This unit has two operating modes: NORMAL DISPLAY MODE and ALARM DISPLAY MODE. -
Page 14: Resetting Min / Max Memories
If the inner temperature is lower than 23°F (-5°C), “LO” is shown on the display panel and the temperature alarm will sound continuously after one hour. If one of these situations occurs please reference the troubleshooting section found in this manual or contact EdgeStar support. -
Page 15: Defrosting
Defrosting Note that under most refrigerating settings, the unit will automatically defrost under most ambient conditions. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up. -
Page 16: Troubleshooting
Troubleshooting Before Calling for Help If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions... - Page 17 Symptoms Possible Causes Solutions The body of the refrigerator is The unit is not grounded Contact your local electrician electrified. properly. to test your electrical grounding system. Frost is forming in the The environment is humid. Though the unit uses an “auto-defrost”...
-
Page 18: Specifications
Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the precision refrigerator for the most accurate information. Description of product Medical Refrigerator Model RP401MED Voltage / Frequency AC 115V~60Hz Amperage 1.5A Input Power... -
Page 19: Edgestar Limited Warranty
WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge.
