The length and width of the upper and lower bunk mattress and foundation are as follows :
Size
Twin
Full
You must use only this size mattress.
Ensure thickness of upper and lower mattress and foundation combined does not exceed 9 ½"
and that the mattress is at least 5" below upper edge of guardrails.
This Bunk Bed uses a slat kit for mattress foundation.
Replacement parts, including additional guardrails, may be obtained from any
!
Follow the information on the warnings appearing on the upper bunk end structure
( 1 )
and on the carton. Do not remove warning label from bed.
( 2 )
Always use the recommended size mattresses or mattress support, or both,
to help prevent the likehood of entrapment or falls.
( 3 )
Surface of mattress must be at least 5 in. (127mm) below the upper edge of guardrails.
( 4 )
Do not allow children under 6 years of age to use the upper bunk.
( 5 )
Periodically check and ensure that the guardrail, ladder, and other component are
in their proper position, free from damage, and that all connectors are tight.
( 6 )
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
( 7 )
Always use ladder for entering or leaving upper bunk.
( 8 )
Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
( 9 )
Use of a night light may provide added safety precaution for a child using the upper bunk.
(10)
Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed
next to the wall, the guardrail that runs the full length of the bed should be placed against
the wall to prevent entrapment between the bed and the wall.
(11)
The use of water or sleep flotation mattresses is prohibited.
(12)
STRANGULATION HAZARD : Never attach or hang items to any part of the bunk bed
that are not designed for use with the bed; for example, but not limited to, hooks, belts
and jump ropes.
(13)
Keep these instructions for future reference.
BUNK SAFETY WARNING
Size of Mattress and Foundation
Length
74"- 75"
74"- 75"
Replacement Parts
Atlantic Furniture dealer
SAFETY WARNINGS
Width
37 ½"- 38 ½"
52"- 53"
Thickness
9 ½" max
9 ½" max
!
Page 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the WESTBROOK STAIRCASE BOOKSHELF and is the answer not in the manual?

Questions and answers

Related Manuals for Atlantic WESTBROOK STAIRCASE BOOKSHELF

Summary of Contents for Atlantic WESTBROOK STAIRCASE BOOKSHELF

  • Page 1 This Bunk Bed uses a slat kit for mattress foundation. Replacement Parts Replacement parts, including additional guardrails, may be obtained from any Atlantic Furniture dealer SAFETY WARNINGS Follow the information on the warnings appearing on the upper bunk end structure ( 1 ) and on the carton.

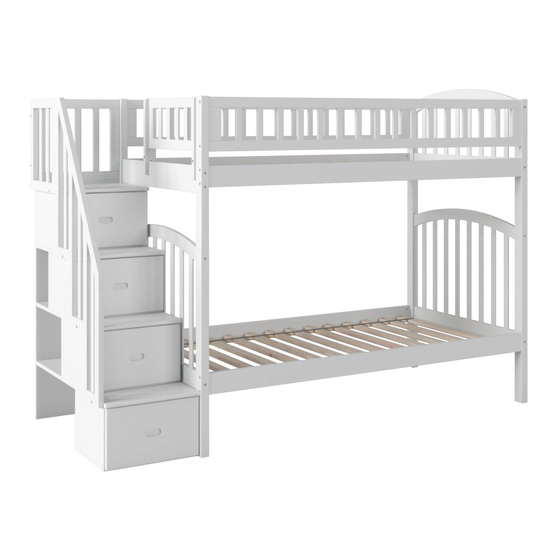

  • Page 2 Thank you for choosing our new bunk bed. This practical design offers the utmost in versatility. Before assembling your Westbrook staircase bookshelf bunk bed, please read through these instructions carefully and familiariz yourself with the different parts. Please note that you will require a Phillips head screwdriver and an Allen wrench.

  • Page 3: Parts List

    WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN PARTS LIST HARDWARE A UPPER PANEL B UPPER PANEL LEFT, RIGHT END CAP 1 BOX SHORT GUARD RAIL LOWER PANEL FRONT, BACK GUARD RAIL 1 BOX LONG RAIL DRAWERS 2 BOX HARDWARE BACK PANEL...
  • Page 4 WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN STEP Attach the long rails (0 ) to the upper panels (02) (03) , using JCB M6 X 3 ” (A) and barrel nut ( ). Tighten with the Allen wrench (M). JCB M6 X 3 ”...
  • Page 5 WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN STEP Attach the front, back guard rails ( ) to the upper panel assemblies using Allen screw Tighten with the Allen wrench (M). Adult assembly Allen crew ” Allen wrench STEP Insert wooden dowel (C) to the locator holes will receive C as shown below.
  • Page 6 WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN Attach the short guard rail assemblies to the upper panel assemblies as shown below, using wood screw (I), STEP tighten with the Phillips head screwdriver. (customer supplied) INSIDE VIEW Adult assembly WOOD SCREW 1 1/4”...
  • Page 7 WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN Lay the twin slat kit (18) onto the bed. Fix in place using wood screws provided in the slat kit box. STEP FOR SLAT KIT ASSEMBLY follow assembly instructions included with slat kit. Adult assembly...
  • Page 8 WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN STEP Insert wooden dowel (C) to the locator holes will receive C as shown below. Wooden owel Adult assembly STEP Attach top panels (1 ) 1 (12)(13)(14) drawers (09) as shown below. Using allen screw ( ).

  • Page 9: Back View

    WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN STEP Attach drawer assemblies back panel (10) as shown below. Using allen screw ( ). D Tighten with Allen wrench (M). Adult assembly Allen crew 1 5/8” Allen wrench BACK VIEW STEP Remove drawers and install wood screw (I) to bottom rail as shown below. Tighten with Phillips head screwdriver.
  • Page 10 WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN Attach side short guardrail (16) to the staircase bookshelf assemblies. U sing allen screw E . STEP Tighten with llen wrench ( ). Adult assembly Allen crew 2 ” Allen wrench Attach hand guard rail (15) to the staircase bookshelf assemblies.
  • Page 11 WESTBROOK STAIRCASE BOOKSHELF TWIN - TWIN Move the bunk bed and staircase bookshelf assemblies where you want to place them in the room. STEP Attach staircase bookshelf assembly to the bunk bed assembly as shown below. Fix L bracket ( )
