PARTS LIST
1
HEADBOARD PANEL 1 PC
2
LEFT LEG
3
RIGHT LEG
4
SPACER BLOCK
NOTE: WE INCLUDE SPARE HARDWARE IN CASE THE ALLEN WRENCH, JCB, BARREL NUT, WOODEN DOWEL, WOOD SCREW, SPLIT OR FLAT WASHER ARE DAMAGED DURING ASSEMBLY.

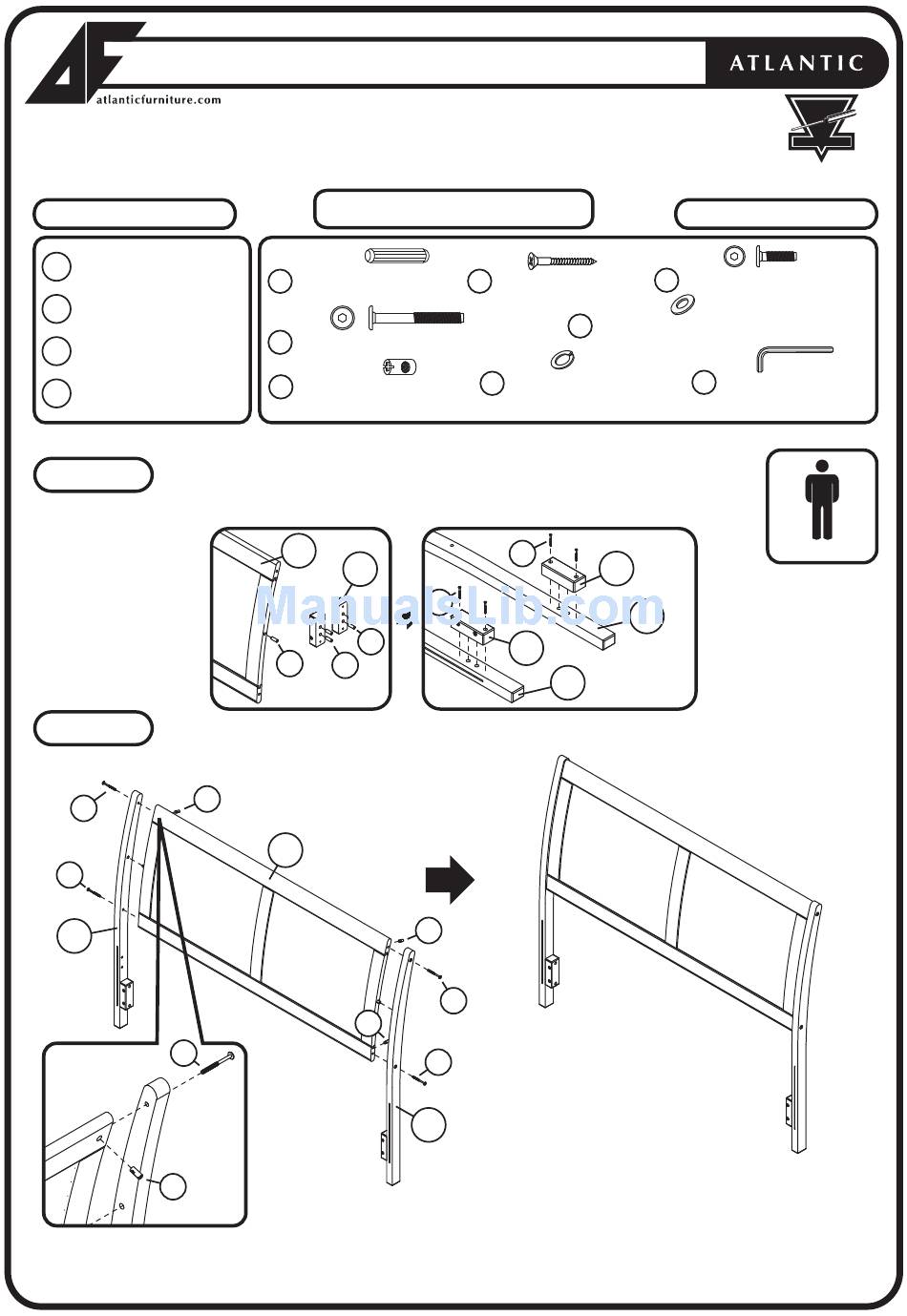

Step 1
Insert wooden dowels (A) to the locator holes on (1) and (4). Attach the spacer
blocks (4) to the legs (2) and (3), using wood screws (D), as shown below.
Tighten with Phillips head screwdriver. (Customer Supplied)
Step 2
Attach the legs (2) and (3) to the headboard panel (1),
using JCB (B) and barrel nut (C). Tighten with the
Allen wrench (H).
C
B
B
2
B
BACK VIEW
C
Portland Headboard & Bed
PORTLAND HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your Headboard, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
Instructions apply for all bed sizes
TWIN > FULL > QUEEN > KING
Wooden Dowel - 6 pcs
A
Spare - 2 pcs
1 PC
B
JCB M6 X 70mm (2 3/4") - 4 pcs
1 PC
C
Barrel Nut - 4 pcs
2 PCS
Spare - 1 pc
1
4
A
A
A
1
C
Congratulations!
Your Portland Headboard is now ready to assembe.
To ensure lasting safety, we recommend that you periodically check
that all screws are tight and all parts are secure.
D
Wood Screw - 4 pcs
Spare - 1 pc
F
Spare - 1 pc
Split Washer - 4 pcs
G
Spare - 1 pc
D
D
4
2
C
B
B
3
HARDWARE
E
JCB M6 X 25mm (1") - 4 pcs
Flat Washer - 4 pcs
Spare - 1 pc
Allen Wrench - 1pc
H
4
3
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1pc
Adult Assembly
Page 1 of 5
