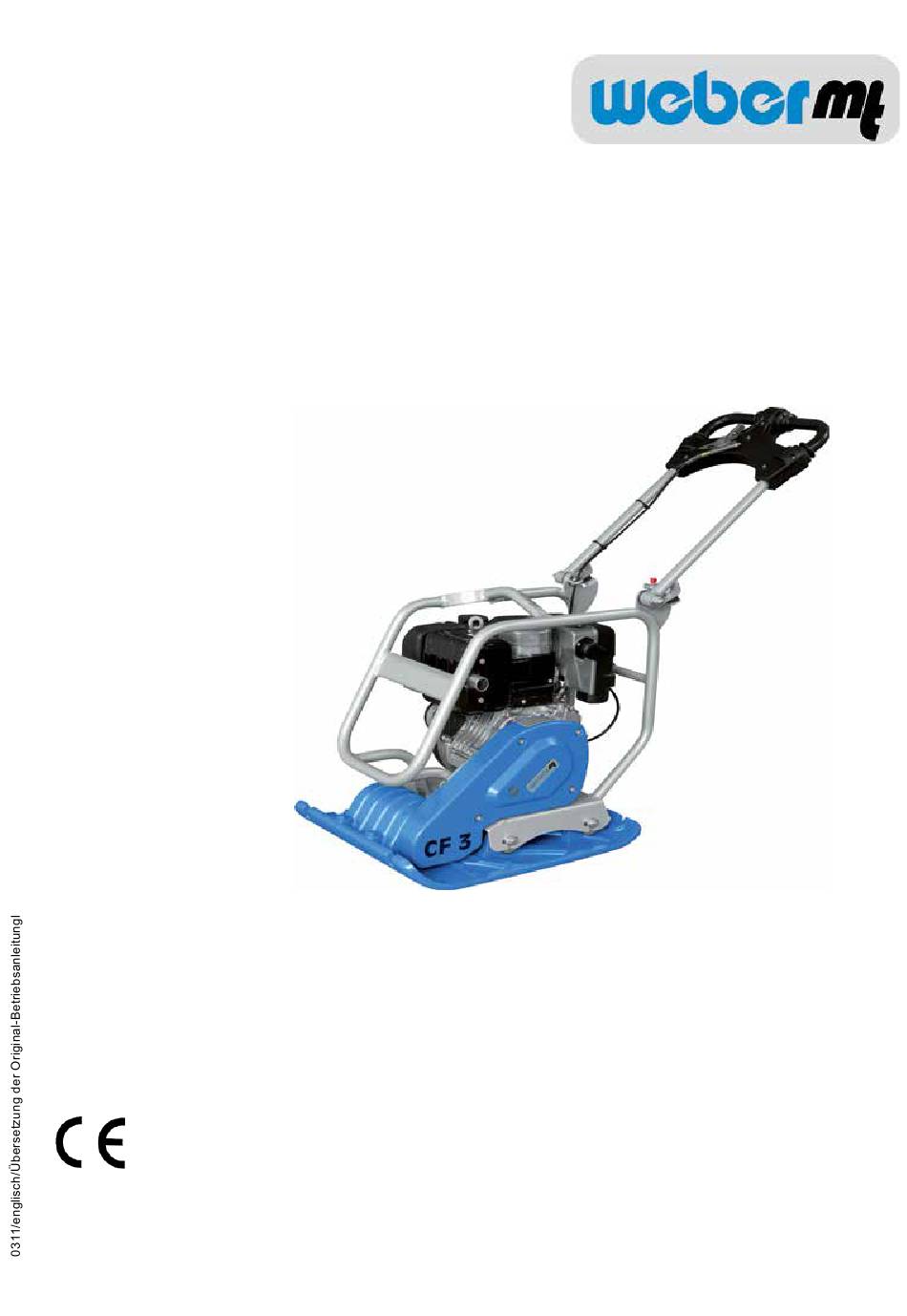

- Page 1 Weber Maschinentechnik GmbH Im Boden 5 - 8 , 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: + 49 (0) 27 54 / 398 0 Fax: + 49 (0) 27 54 / 398 101 E-Mail: info@webermt.de Web: www.webermt.de CF 3 L...
- Page 2 CF 3 L...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Taking out of operation Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CF 3 L... -
Page 4: Introduction
This operating and maintenance manual must always be available at the implementation site of the soil compactor. If necessary you can obtain additional information from your authorized WEBER dealer, or you can obtain information from one of the contact addresses on the last page. -
Page 5: Safety Guidelines
The soil compactor should only be used in technically faultless condition, as intended, in a safety- conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CF 3 soil compactor is designed exclusively for compacting - Sand - Gravel... - Page 6 Prior to maintenance and repair work Only use original Weber spare parts for maintenance or repair work to ensure reliable and safe operation. Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant defects are present.
- Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CF 3 L...
-
Page 8: Graphic Presentation

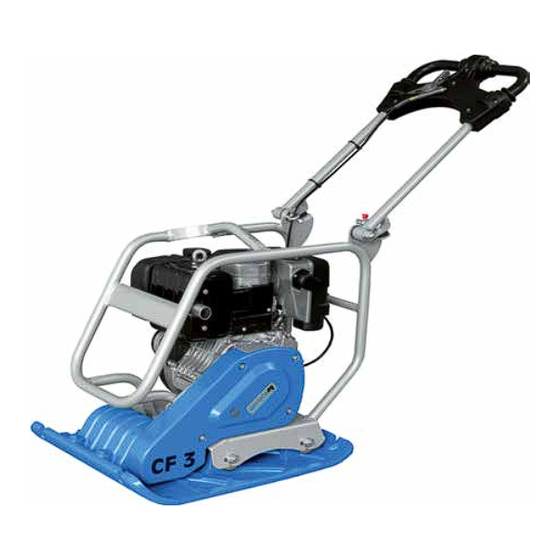

Graphic presentation Overall view CF 3 1 Water tank (no image) 2 Engine 3 Hand guide bracket 4 Chassis (accessory) (no image) 5 Engine console 6 Base plate 7 Hearing protection (sticker) 8 Gas lever 9 Poly pad (no image) -
Page 9: Device Description
Device description The CF 3 compactor is used for road-building and landscaping compaction tasks. Drive The compactor is powered by an air-cooled Lombardini diesel engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Lombardini diesel engine with the attached reversing starter. Use the gas lever to vary the engine rpm between idle and full throttle. -
Page 10: Technical Data
EN ISO 3744 and EN 500, in dB Vibration values Root-mean-square acceleration value for hand-arm vibration ascertained in accordance with EN 500 in m/s² In accordance with directive 2006/42/EC, complying with the vibration values is the owner‘s responsibility. CF 3 L... - Page 11 1 Description 2 Type ....................... 3 Serial number 4 Year of manufacture ......................5 Weight 6 Rated power kW CF 3 L...
-
Page 12: Activities Prior To Starting Work
Use the screws (2) to fasten the chassis (1) to the engine console. Arrest the manual guidance rod (1) with the spring bolt (2). Pivot the hand truck under the base plate. The manual guidance rod must be locked during transport. CF 3 L... - Page 13 Mounting the Poly pad Hook in the Poly pad (1) at the rear. Fasten with holder, screws, spring-lock washers and nuts (1) on the base plate front. Ensure that the Poly pad rests under the base plate. CF 3 L...
-
Page 14: Starting
Allow the handle (1) to glide back into the initial position, and then forcefully and completely pull it through with both hands. If ambient temperatures are below minus 5 degrees Celsius comply with the instructions in the operating manual provided by the engine manufacturer. CF 3 L... -
Page 15: Compacting
Shutdown Switch off the engine using the gas lever (1). During breaks — even if they are short — the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against conspicuously. CF 3 L... -
Page 16: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CF 3 L... -
Page 17: Maintenance Work
Change engine oil filter Completely drain the engine oil as previously described. Remove the cover cap (1). Replace oil filter (1) with a new element. After replacing the filter element seal the filter enclosure with the cover cap. CF 3 L... - Page 18 Checking the V-belt Remove the V-belt guard. Check the V-belt (1) for cracks, damaged flanks, and wear. If there is excessive wear - replace the V-belt as specified in the repair manual. CF 3 L...
-
Page 19: Operating Fluids And Fill Levels
Lack of fuel Check the fuel level Fuel filter fouled Change the fuel filter Air filter fouled Clean/change air filter cartridge No vibration / no forward motion or Vibrator V-belt Change vibrator V-belt insufficient forward defective motion CF 3 L... -
Page 20: Storage
Check fuel filter, change if necessary All bare parts/accelerator/accelerator - Oil/grease control cable/fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organi- zation to discuss additional measures. CF 3 L... - Page 21 CF 3 L...
- Page 22 CF 3 L...
-
Page 23: Contact Addresses
+ 1(207) - 947 – 5452 Canada Bangor, ME 04401 E-Mail sales@webermt.us service@webermt.us in South - WEBER Maschinentechnik do Brasil Telefon + 55 (0) 51- 587 3044 America Rua João Werno Erhart, 4691 Telefax + 55 (0) 51- 587 2271 Bairro Rincão... - Page 24 > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe - Rückershausen Telephone + 49 27 54 / 398 0 - Fax +49 27 54 / 398 101 CF 3 L...
