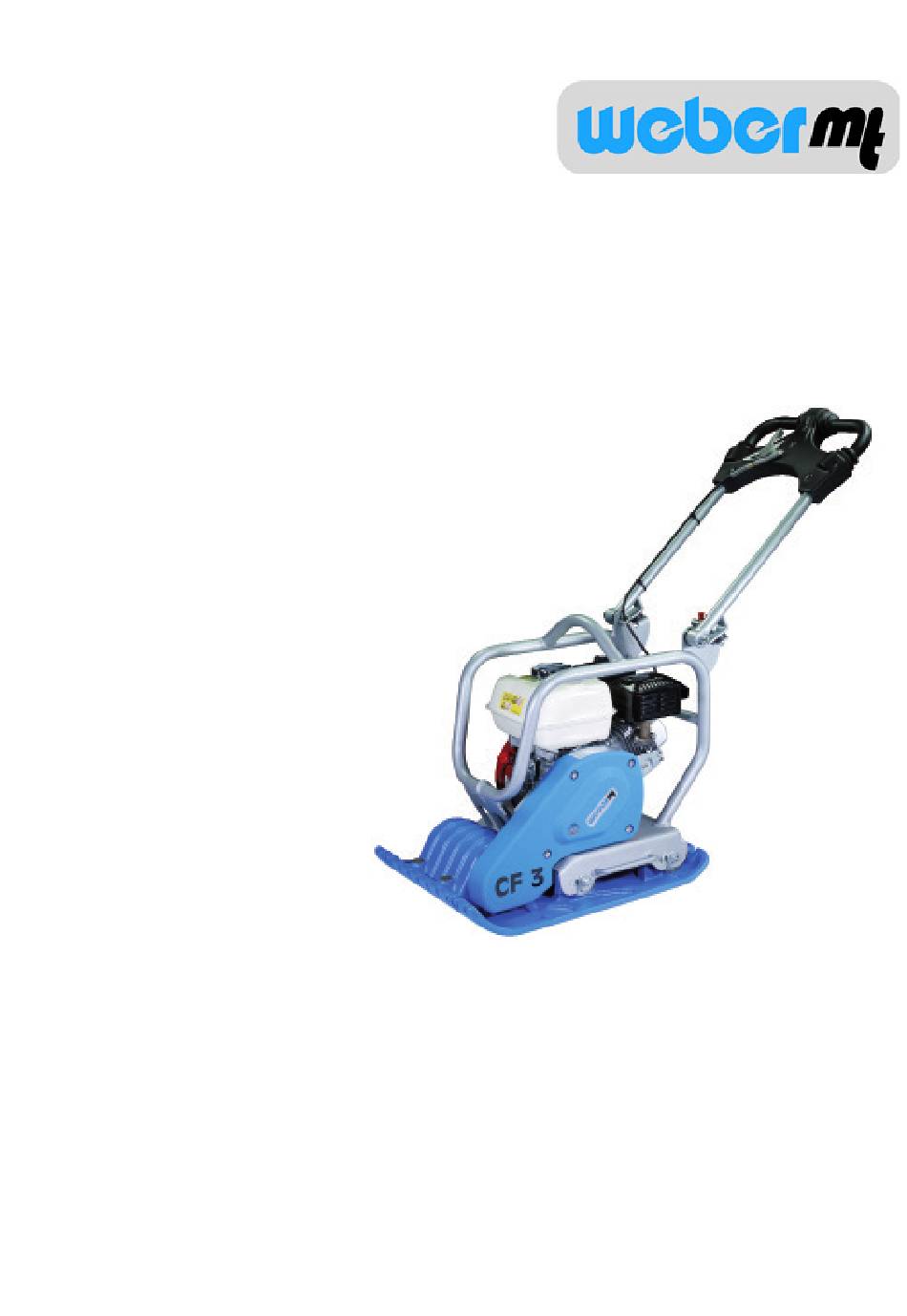

- Page 1 Operating and Maintenance Manual CF 3-II Hd CF 3/60 Hd 0100320, 0100322 CF 3-II Hd...
- Page 2 CF 3-II Hd...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CF 3-II Hd... -
Page 4: Introduction
This operating and maintenance manual must always be available at the implementation site of the soil compactor. If necessary, you can obtain additional information from your authorized WEBER MT dealer, or you can obtain information from one of the contact addresses on the last page. -
Page 5: Safety Guidelines
Safety guidelines General All safety instructions must be read and complied with, as non-compliance will result in – danger to life and limb of the user, – impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with. - Page 6 Exercise particular caution when operating the engine in the vicinity of people and livestock. Maintenance and repair work Only use original Weber MT spare parts to ensure reliable and safe operation for maintenance or repair work. Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant defects are present.
- Page 7 Inspection Compactors must be inspected in accordance with the corresponding implementation conditions and operating conditions, as needed; however, an inspection to ensure operationally safe status must be performed by an expert at least once a year. The results of the inspection must be recorded in writing and must be stored at least until the next inspection.
-
Page 8: Graphic Presentation
Graphic presentation Overall view – CF 3-II Hd 1 Water tank (no image / accessory) 2 Engine 3 Manual guidance rod 4 Undercarriage (no image / accessory) 5 Engine bracket 6 Base plate 7 Hearing protection (sticker) 8 Gas lever 9 Exciter CF 3-II Hd... -
Page 9: Device Description

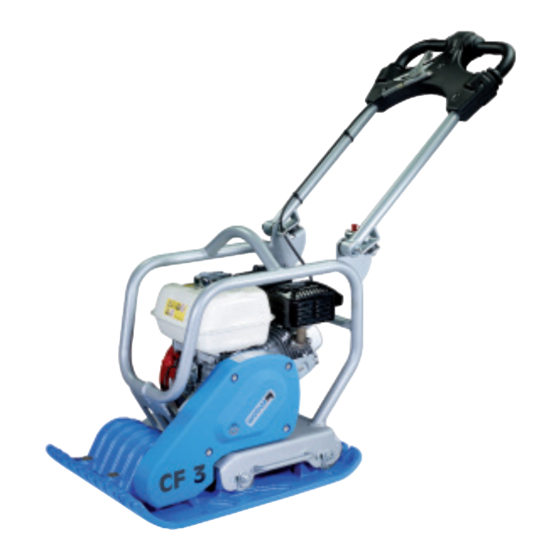

Device description The CF 3-II Hd soil compactor is used for road-building and landscaping compaction tasks. Drive The unit is powered by an air-cooled Honda gasoline engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Honda gasoline engine with the attached reversing starter. After starting, vibration is switched on via the centrifugal clutch attached to the engine. -
Page 10: Technical Data
Technical data CF 3-II Hd Weight Operating weight CECE in kg Dimensions Overall length (in mm) 1100 Overall width (in mm) Height with folded guide bar (in mm) Base plate length (in mm) Pressure surface (in mm) 400 x 500 Drive Engine manufacturer Honda... - Page 11 1 Description 2 TYPE ....................... 3 Serial number 4 Year of construction ....................... 5 Mass 6 Rated power kW ....................... CF 3-II Hd...
-
Page 12: Activities Prior To Starting Work
Activities prior to starting work Transport Fit the crane hook into the lifting ring (1) and lift the machine onto the desired means of transport. When transporting the soil compactor on a vehicle, secure it with suitable restraints. Only use lifting machines with a minimum bearing capacity of 150 kg. -
Page 13: Starting
Starting Turn the short-circuit button (1) to the “ON” position. Bring the gas lever (1) into full-throttle position. Slide the choke lever (2) to the left (close). Open the fuel cock (3). Slowly tighten the handle (1) of the reversing starter (2) until resistance is noticeable. -
Page 14: Compacting
Compacting Bring the gas lever (1) into full-throttle position. Control drive speed and direction of travel with the handle (1). Only run machine within reach of the guide bar. Shutting down Bring the gas lever (1) into idle position. Close the fuel cock (2). Turn the short-circuit button (1) to the “0”... -
Page 15: Maintenance Overview
Maintenance overview Maintenance interval Maintenance point Maintenance activity After the first Engine – Change the engine oil 25 operating hours – Check valve play; adjust if necessary – Re-tighten all accessible threaded connections Every 8 operating Air filter – Clean air filter insert, hours / daily check for damage, replace if necessary... -
Page 16: Maintenance Work
Maintenance work Change the engine oil Remove the oil dip stick (1). Remove the oil drain screw (2) and drain oil. Only drain engine oil when at operating temperature. After emptying completely, put in the oil drain plug / locking screw (2). - Page 17 Changing the oil in the exciter Remove the oil drain plug / filler plug (1) and drain oil. Fill with oil as specified in the fill quantity table. Screw in oil drain plug or filler plug. Ensure that the contact surfaces on the oil drain plug / filler plug and vibrator housing are clean.
-
Page 18: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity Summer Winter CF 3-II Hd Quality Engine Engine oil SAE 10 W 40 0.6 l (– 10 ~ + 50 °C) API – CD CE of SHPD or CCMC – D2 – D3 – PD1 Fuel tank Gasoline Unleaded gasoline... - Page 19 All bare parts / gas lever / accelerator – Oil / grease control cables / fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organization to discuss additional measures. CF 3-II Hd...
- Page 20 Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085100103-104 / CF 3-II Hd_2020-09 Original instructions CF 3-II Hd...
