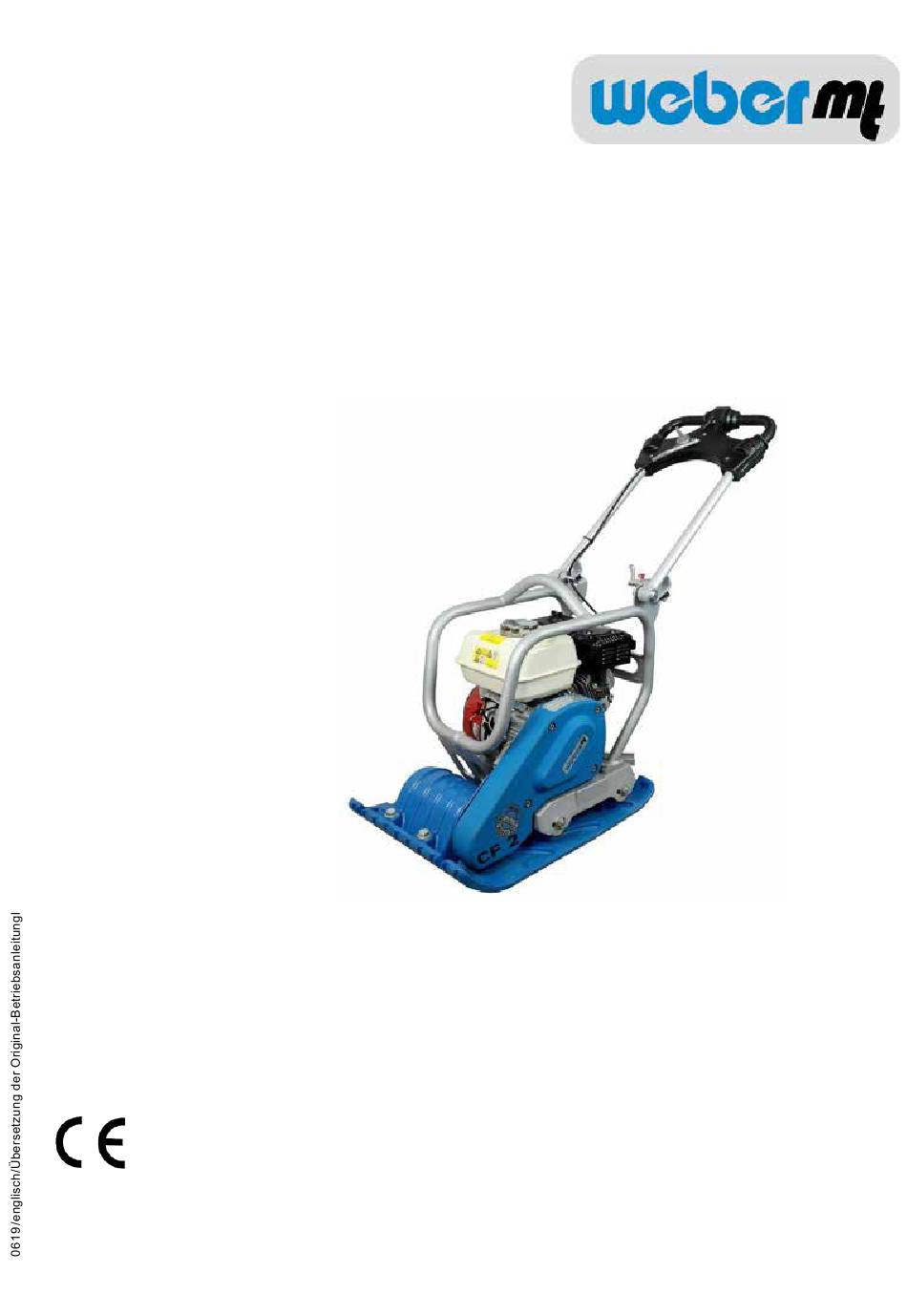

- Page 1 Operating and Maintenance Manual CF 2-II Hd Honda GX 160 0100220-00 Weber Maschinentechnik GmbH Im Boden 5 – 8, 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: +49 (0) 27 54 / 398 0 Fax: +49 (0) 27 54 / 398 101 E-mail: info@webermt.de...
- Page 2 CF 2-II Hd...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CF 2-II Hd... -
Page 4: Introduction
This operating and maintenance manual must always be available at the implementation site of the soil compactor. If necessary, you can obtain additional information from your authorized WEBER MT dealer, or you can obtain information from one of the contact addresses on the last page. -
Page 5: Safety Guidelines
The soil compactor should only be used if it is in a technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CF 2-II Hd soil compactor is designed exclusively for compacting – sand, – gravel, –... - Page 6 The use of respiratory equipment during operation of this gasoline-powered compactor without docu- mented evidence of conformity and without the necessary precautions is generally not permitted! – as CO will accumulate in the blood after repeated use – as CO filters have a short service life CF 2-II Hd...
- Page 7 Maintenance and repair work Only use original Weber MT spare parts to ensure reliable and safe operation for maintenance or repair work. Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant defects are present.
- Page 8 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CF 2-II Hd...
-
Page 9: Graphic Presentation

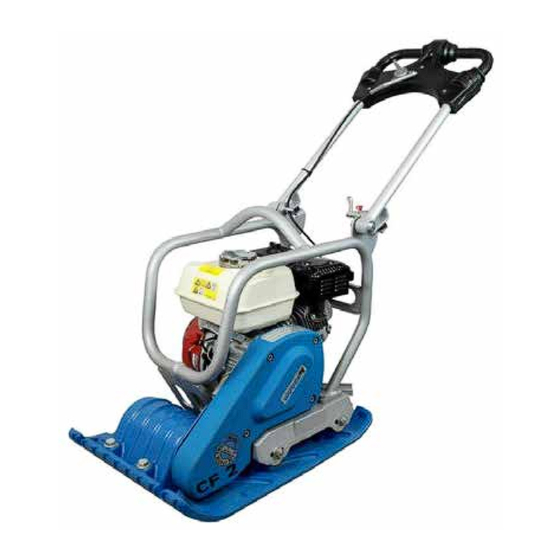

Graphic presentation Overall view – CF 2-II Hd 1 Engine 2 Guide bar 3 Engine bracket 4 Base plate 5 Gas lever 6 Exciter 7 Water tank (not shown) (Accessory) 8 Undercarriage (not shown) (Accessory) 9 Protective mat (not shown) (Accessory) -
Page 10: Device Description
Device description The CF 2-II Hd soil compactor is used for road-building and landscaping compaction tasks. Drive The unit is powered by an air-cooled Honda gasoline engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Honda gasoline engine with the attached reversing starter. After starting, vibration is switched on via the centrifugal clutch attached to the engine. -
Page 11: Technical Data
Technical data CF 2-II Hd Weight Operating weight CECE in kg Dimensions Overall length (in mm) 1130 Overall width (in mm) Height with folded guide bar (in mm) Base plate length (base in mm) Pressure surface (in mm) 400 x 450... - Page 12 1 Description 2 TYPE ..........................3 Serial number 4 Year of construction ..........................5 Mass 6 Rated power kW ..........................CF 2-II Hd...
-
Page 13: Activities Prior To Starting Work
Arrest the guide bar (2) with the spring bolt (3). Use the screws (5) to fasten the undercarriage (4) to the engine console (6). Pivot the undercarriage under the base plate. The manual guidance rod must be locked during trans- port. CF 2-II Hd... - Page 14 Check the fuel level Open the gas cap (5) and, if necessary, top off with fuel as specified. For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. Fire, naked light, and smoking is forbidden! CF 2-II Hd...
-
Page 15: Starting
Allow the handle (6) to glide back into the initial position, and then forcefully and completely pull it through with both hands. After the engine has warmed up, slide the choke lever to the right (open). CF 2-II Hd... -
Page 16: Compacting
Turn the short-circuit button (5) to the “0” – OFF position. During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against through conspicuous measures. CF 2-II Hd... -
Page 17: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CF 2-II Hd... -
Page 18: Maintenance Work
Unscrew the air filter cover (3). Remove the air filter insert (4) from the air filter enclosure. Clean air filter insert as specified by the engine manufacturer if there is damage or if it is extremely dirty. CF 2-II Hd... - Page 19 Checking the V-belt Remove the V-belt guard (2). To do this unscrew the screws (3). Check the V-belt (4) for cracks, damaged flanks, and wear. If there is excessive wear, replace the V-belt. CF 2-II Hd...
-
Page 20: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Quantity Operating material CF 2-II Hd Quality Engine SAE 10 W 40 Engine oil (– 1 0 ~ +50 °C) API – CD CE 0.6 l or SHPD or CCMC – D2 – D3 – PD1... -
Page 21: Storage
All bare parts / gas lever / accelerator – Oil / grease control cables / fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organi- zation to discuss additional measures. CF 2-II Hd... - Page 22 CF 2-II Hd...
- Page 23 278 01 Kralupy nad Vitavou E-mail info@webermt.cz in the WEBER MT Telephone +1(207) - 947 - 4990 USA and 4717 Broadmoor Ave. SE. Suite B +1(207) - 947 - 5452 Canada Grand Rapids, MI 49512 E-mail sales@webermt.us service@webermt.us CF 2-II Hd...
-
Page 24: Contact Addresses
> Vibrating tampers > Vibration rollers > Joint cutters > Internal vibrators and converters Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad laasphe-Rückershausen Phone +49 (0) 27 54 / 398 0 – Fax +49 (0) 27 54 / 398 101 CF 2-II Hd...
