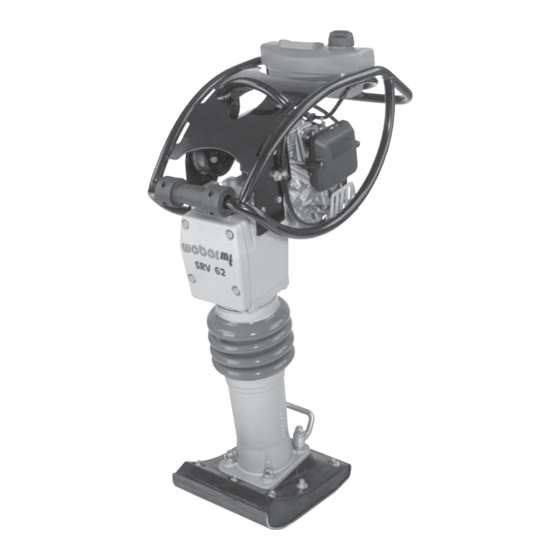

Weber SRV 62 Operating And Maintenance Instructions Manual

Weber SRV 62 Operating And Maintenance Instructions Manual

Srv 62 honda gx 100 srv 66 robin eh 12-2

Advertisement

SRV 62
SRV 66
SRV62_66
Honda GX 100
Robin EH 12-2
OPERATING AND
MAINTENANCE
INSTRUCTIONS
Weber Maschinentechnik GmbH
P.O. Box 21 53, D-57329 Bad Laasphe-Rückershausen
Phone ++27 54 / 398-0
Fax (++ 27 54) 3 98-101 (Switchboard) &
3 98-102 (Spare Parts)
1

Advertisement

Table of Contents
loading

Summary of Contents for Weber SRV 62

  • Page 1: Maintenance Instructions

    OPERATING AND MAINTENANCE INSTRUCTIONS SRV 62 Honda GX 100 SRV 66 Robin EH 12-2 Weber Maschinentechnik GmbH P.O. Box 21 53, D-57329 Bad Laasphe-Rückershausen Phone ++27 54 / 398-0 Fax (++ 27 54) 3 98-101 (Switchboard) & 3 98-102 (Spare Parts)
  • Page 2 SRV62_66...
  • Page 3: Preface

    Indicates working and operating methods which must be precisely followed in order to avert direct danger to persons. For further information, please contact your authorized WEBER distributor or one of the addresses on the last page. SRV62_66...
  • Page 4: General Safety Instructions

    General Safety Instructions General All safety notes (see also explanations of the pictogram meanings in the preface) must be read and observed (any lack of clarity must be dispelled before the tamper is put into operation), because otherwise the use of the machine * constitute a risk to life and limb of the user * impair the machine and other valuable property.
  • Page 5: Table Of Contents

    3.3.1 Changing the Engine Oil SRV 62 ........................21 3.3.2 Changing the Engine Oil SRV 66 ........................22 3.3.3 Cleaning/Replacing the Air Filter Cartridge SRV 62 ..................23 3.3.4 Cleaning/Replacing the Air Filter Cartridge SRV 66 ..................23 3.3.5 Cleaning the Fuel Filter ..........................24 3.3.6...
  • Page 6: Technical Description

    1. Technical Description Illustration Figure 1 Overall View SRV Fuel tank Reversible starter (not shown) Tank cap 4-stroke engine Engine speed adjusting lever (not shown) Tamping shoe Handle Bellow Air filter Upper tamper part Lower tamper part SRV62_66...
  • Page 7: Machine Description

    1.2 Machine Description The tampers of the SRV 62/SRV66 series are used for the compaction of crushed stone and sand on flat surfaces and for canal construction work. The SRV 62/66 tamper is driven by a 4-stroke Honda/ Robin gasoline engine (1/7).
  • Page 8: Specifications

    1.3 Specifications SRV 62 SRV 66 Weight Operating weight CECE (in kg) Dimensions Overall lenght (in mm) Overall width (in mm) 1130 Height (in mm) 1130 Tamping shoe width (in mm) No.of impacts (/min) Stroke (in mm) Propulsion Honda Robin...
  • Page 9: Handle

    SRV 62 SRV 66 Noise and Vibration Data* Sound pressure level (at the operator's place, according to 2000/14/EG, in dB(A)) Sound power level according to 2000/14/EG, in dB(A)) Hand/arm vibration (Weighted root mean square acceleration, at the handle, determined according to 2002/44/EG, Part 1, in m/s²)
  • Page 10: Operation

    Operation 2.1 Safety Precautions for the Operation Safety and Protective Devices Before every shift, the operator must check the operativeness of all controls and safety elements as well as the proper installation of all protective devices. The tamper is only allowed to be operated with all protective devices in place.
  • Page 11: Transport

    2.2 Transport For transporting the tamper over long distances, however, the machine can be lifted on an appropriate transport vehicle (truck, trailer) by means of a crane. 2.2.1 Loading by Crane - Put the tamper out of operation as described in paragraph 2.7. - Hang the crane hook into the transport bar (2/1).
  • Page 12: Pre-Start Work

    2.4 Pre-Start Work - Check to ensure that all safety devices are in place. Check the whole tamper for evident damage (visual check). - Check all screwed connections for tight seat, retighten them if necessary. - Check the fuel level, if necessary, add fuel (refer to paragraph 2.4.1). - Check the engine oil level, if necessary add engine oil (refer to paragraph 2.4.2).
  • Page 13: Checking The Engine Oil Level

    2.4.2 Checking the Engine Oil Level 2.4.2.1 SRV 62 Caution! The engine oil level must be checked with the tamper standing horizontally on the ground. - Pull out the oil filler screw by means of the oil dipstick (4/1), wipe it off with a clean, non-fluffing cloth and insert it again.
  • Page 14: Starting

    - danger of Figure 7 poisoning. Caution! Never use starting aid sprays! 2.5.1 Starting the SRV 62 - Turn the stop button (7/1) to the right into the „On“ position. - Put the speed adjusting lever (7/2) into the full speed position.
  • Page 15: Starting The Srv 66

    2.5.2 Starting the SRV 66 - Turn the stop button (11/1) to the right into the „On“ position. - Put the speed adjusting lever (11/2) into the full speed position. - Put the fuel stop cock (12/1) into the vertical position to open it.
  • Page 16: Tamping Operation

    2.6 Tamping Operation Start the tamper (refer to paragraph 2.5). Always push the speed adjusting lever into the full gas position. Caution! Compaction work is only allowed to be done at full engine speed, otherwise the centrifugal clutch may slip and cause increased wear.
  • Page 17: Stopping The Srv 62/Srv 66

    2.7.1 Stopping the SRV 62/SRV 66 - Push the speed adjusting lever (16/1) to the right side and let the engine idle for a few minutes. - Close the fuel cock (17/1). - Turn the stop button (16/2) to the left side into the „Off“ position.
  • Page 18: Maintenance

    For safety reasons, any modifications and retrofittings made on the tamper without the manufacturer's authorization, are prohibited. Damage resulting from modifications or retrofittings is excluded from the manufacturer's liability. Only use genuine WEBER spare parts to ensure a safe and reliable operation. Safety Precautions Required by the Engine Manufacturer Please refer to the annexed operation manual of the engine manufacturer HONDA/ ROBIN for a detailed description of the maintenance work to be done on the engine.
  • Page 19: Maintenance Survey

    3.2 Maintenance Survey Any maintenance work which must be performed on the tamper is listed in two charts. The first chart (paragraph 3.2.1) indicates the initial maintenance work which has to be carried out once at a certain time after commissioning. The routine maintenance work indicated in the second chart (paragraph 3.2.2) has to be repeated at regular intervals.
  • Page 20: Routine Maintenance

    3.2.2 Routine Maintenance Maintenance Interval Maintenance Maintenance Work Remarks Item Whole machine - Check for visible damage, leaks Every 8 operating hours etc. Air filter - Clean the air filter cartridge, check it for damage and, if # 3.3.2 necessary, replace it Engine - Check the engine oil level # 2.4.2...
  • Page 21: Description Of The Maintenance Work

    3.3 Description of the Maintenance Work 3.3.1 Changing the Engine Oil SRV 62 - Put the tamper out of operation as described in paragraph 2.7. Caution! Drain off the engine oil at operating temperature and with the engine in horizontal position only.
  • Page 22: Changing The Engine Oil Srv 66

    3.3.2 Changing the Engine Oil SRV 66 - Put the tamper out of operation as described in paragraph 2.7. Caution! Drain off the engine oil at operating temperature and with the engine in horizontal position only. - Put a drain pan under the outlet. Environment Hazard! Figure 20 Choose a drain pan having a sufficient capacity...
  • Page 23: Cleaning/Replacing The Air Filter Cartridge Srv 62

    3.3.3 Cleaning/Replacing the Air Filter Cartridge SRV 62 - Undo the screws (22/1) and remove the cover (22/2) from the air filter body. - Remove the air filter element (23/2) and the pre-cleaner (23/1) from the filter body. - Clean the pre-cleaner (23/1) with warm soap water, then thoroughly rinse the precleaner with water and allow it to dry.
  • Page 24: Cleaning The Fuel Filter

    3.3.5 Cleaning the Fuel Filter - Pull the fuel line (25/1) off the fuel cock (25/2). - Unscrew the fuel cock (26/1) including the fuel filter (26/2) out of the fuel tank. - Clean the fuel filter (26/2). - Install the fuel cock with the fuel filter again in the fuel tank. Figure 25 Danger to the Environment! Catch or wipe up any escaping fuel immediately and dispose...
  • Page 25: Changing The Oil In The Tamper System

    3.3.7 Changing the Oil in the Tamper System - Remove the plug (29/1) from the filler opening. - Slightly tilt the tamper to the front and catch the used oil in an appropriate pan. - Put the tamper to the back so that the filler opening is directed towards the top.
  • Page 26: Consumables And Quantities

    3.4 Consumables and Quantities Assembly Group Consumable Summer Winter Quality Engine Engine oil SAE 10 W 40 0,3 l 0,4 l (-10 ~ + 50 °C) API - CD CE or SHPD or CCMC - D2 - D3 - PD1 Fuel tank Regular gasoline, unleaded, according to DIN 51607...
  • Page 27: Malfunctions During Operation

    Malfunctions During Operation 4.1 General If a malfunction occurs on the tamper, proceed as follows: - Put the tamper out of operation as described in paragraph 2.7. - Determine the source of the malfunction (refer to paragraph 4.2 - Trouble Shooting). - Eliminate the malfunction (refer to paragraph 3 (maintenance work) and paragraph 2 (description of the various controls).
  • Page 28: Trouble Shooting

    4.2 Trouble Shooting Failure Possible Cause Remedy Remarks Perform the start procedure as Tamper does not start Mistake in operating the unit # 2.5 described Lack of fuel Check the fuel level # 2.4.1 Dirty air filter Clean/replace the air filter # 3.3.2 Dirty fuel filter Replace the fuel filter...
  • Page 29: Preserving The Machine

    5.1 must be taken. After the storage, the tamper must be put in operation according to paragraph 5.2. If the tamper is to be stored for more than 6 months, additional measures must be taken in accordance with your WEBER service. 5.1 Preservation Measures Assembly Group...
  • Page 30 SRV62_66...
  • Page 31: Weber Maschinentechnik Gmbh

    6 Weber Maschinentechnik GmbH For problems, questions and further information refer to one of the following addresses: in Germany WEBER Maschinentechnik GmbH Telefon + 49 (0) 2754 - 398-0 Postfach 2153 Telefax + 49 (0) 2754 - 398101-switchboard 57329 Bad Laasphe - Rückershausen...
  • Page 32 > Vibratory Tampers > Vibratory Rollers > Joint Cutters > Poker Vibrators and Converters > Rotary Trowels Weber MASCHINENTECHNIK GmbH Im Boden D- 57334 Bad Laasphe - Rückershausen P. O. Box 2153 D - 57329 Bad Laasphe Phone ++27 54 / 398 0 - Telefax ++27 54 / 398 101...
