Operation and Maintenance Manual for
MTS Rework Systems
MTS 200 SC System
MTS 200 SC System
MTS 200 SA System
MTS 200 SA System
MTS 300 System
MTS 300 System
MTS 350 System
MTS 350 System

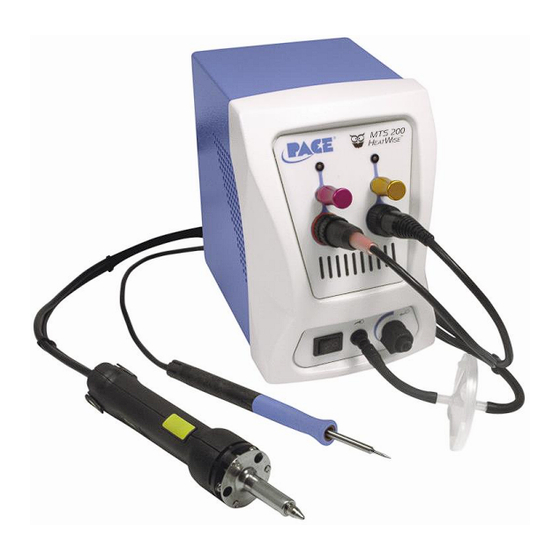

(MTS 200 Shown with optional TD-100 and SX-80 Handpieces)
P/N 5050-0520, Rev B
Voltage
115 VAC
230 VAC
115 VAC
230 VAC
115 VAC
230 VAC
115 VAC
230 VAC
Part Number
8007-0414
8007-0415
8007-0412
8007-0413
8007-0418-B
8007-0419-B
8007-0416-B
8007-0417-B
Advertisement
Table of Contents
Related Manuals for Pace MTS 200
Summary of Contents for Pace MTS 200
- Page 1 MTS 200 SA System 230 VAC 8007-0413 MTS 300 System 115 VAC 8007-0418-B MTS 300 System 230 VAC 8007-0419-B MTS 350 System 115 VAC 8007-0416-B MTS 350 System 230 VAC 8007-0417-B (MTS 200 Shown with optional TD-100 and SX-80 Handpieces)
-
Page 2: Table Of Contents
Power Source ....................9 Packing Contents ..................... 9 Replacement Power Modules .................. 9 Service ........................9 PACE WORLDWIDE LIMITED WARRANTY STATEMENT ........10 Contact Information ....................11 ©2004 PACE Inc., Annapolis Junction, Maryland Page 2 of 11 All Rights Reserved... -
Page 3: Introduction
POWERMODULES, you can protect your process by locking operators into using the performance level you specify. The MTS 200 is available in a self contained version as well as a shop air version. The MTS 200 provides 2 handpiece channels that are active simultaneously. One channel can power any of PACE’s Heater Cartridge (HC) handpieces and the other can power any of... -
Page 4: Electrical Specification
LED Indicators Power Module Ports Power Receptacles Controllable Pressure Power Switch Port MTS 200 Shown Auto Snap-Vac Port Setback/Auto- Off Switches AC Power Receptacle/Fuse Holder Earth Ground Receptacle ©2004 PACE Inc., Annapolis Junction, Maryland Page 4 of 11 All Rights Reserved... -
Page 5: Safety
Be sure to place the handpiece in its holder after use and allow for cooling before storing. Always use PACE systems in a well ventilated area. A fume extraction system such as those available from PACE are highly recommended to help protect personnel from solder flux fumes. -
Page 6: Handpieces
Power cord connection between an appropriate AC supply receptacle and the power source. b) Handpiece connection to the power source. c) Desired Power Module is installed. ©2004 PACE Inc., Annapolis Junction, Maryland Page 6 of 11 All Rights Reserved... -
Page 7: Vacuum Pump Operation
As received from the factory, this feature is enabled. MTS 350 Shown Vacuum Pump Operation The PACE MTS 300/350 contains two different vacuum pumps. 1. HiFlo pump To activate, depress the handpiece activation button. -
Page 8: Handpiece Vacuum/Pressure
Insert the end of the quick connect hose mount fitting (on VisiFilter FLOW OUT side) into the power source Vacuum Port. 3. When using air pressure, and/or utilizing multiple air handpieces, PACE recommends the use of the following set up procedure which utilizes additional quick connect hose mount fittings. -
Page 9: Corrective Maintenance
1207-0362-01-P1 5.5/Blue 1207-0362-02-P1 6/Orange 1207-0362-03-P-1 6.5/Gold 1207-0362-04-P1 7/Red 1207-0362-05-P1 7.5/Purple 1207-0362-06-P1 8/Black 1207-0362-07-P1 8.5/Silver 1207-0362-08-P1 Service Please contact PACE or your local distributor for service and repair. ©2004 PACE Inc., Annapolis Junction, Maryland Page 9 of 11 All Rights Reserved... -
Page 10: Pace Worldwide Limited Warranty Statement
Warranty service may be obtained by contacting the appropriate PACE Company or local Authorized PACE distributor as set forth below to determine if return of any item is required, or if repairs can be made by the user in the field. Any warranty or other claim with respect to the products must be made with sufficient evidence of purchase and date of receipt, otherwise user’s rights under this warranty shall be... -
Page 11: Contact Information
MTS Systems Operation Manual Contact Information PACE Incorporated retains the right to make changes to specifications contained herein at any time, without notice. Contact your local authorized PACE Distributor or PACE Incorporated to obtain the latest specifications. The following are trademarks and/or service marks of PACE, Incorporated, MD, USA: ...
