Summary of Contents for SIMPLIHOME brooklyn+max WyndenHall AXCART17-WH

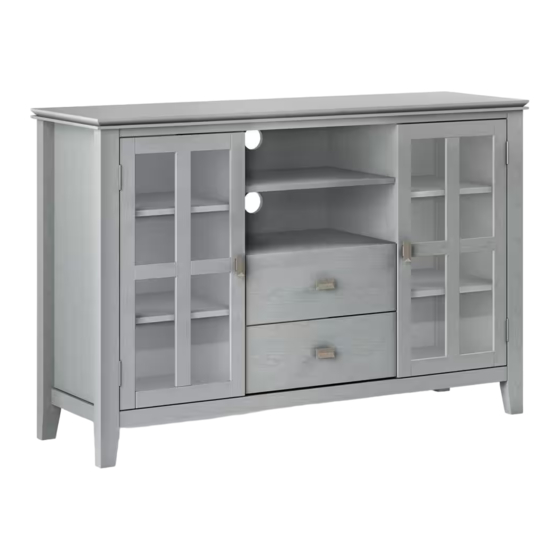

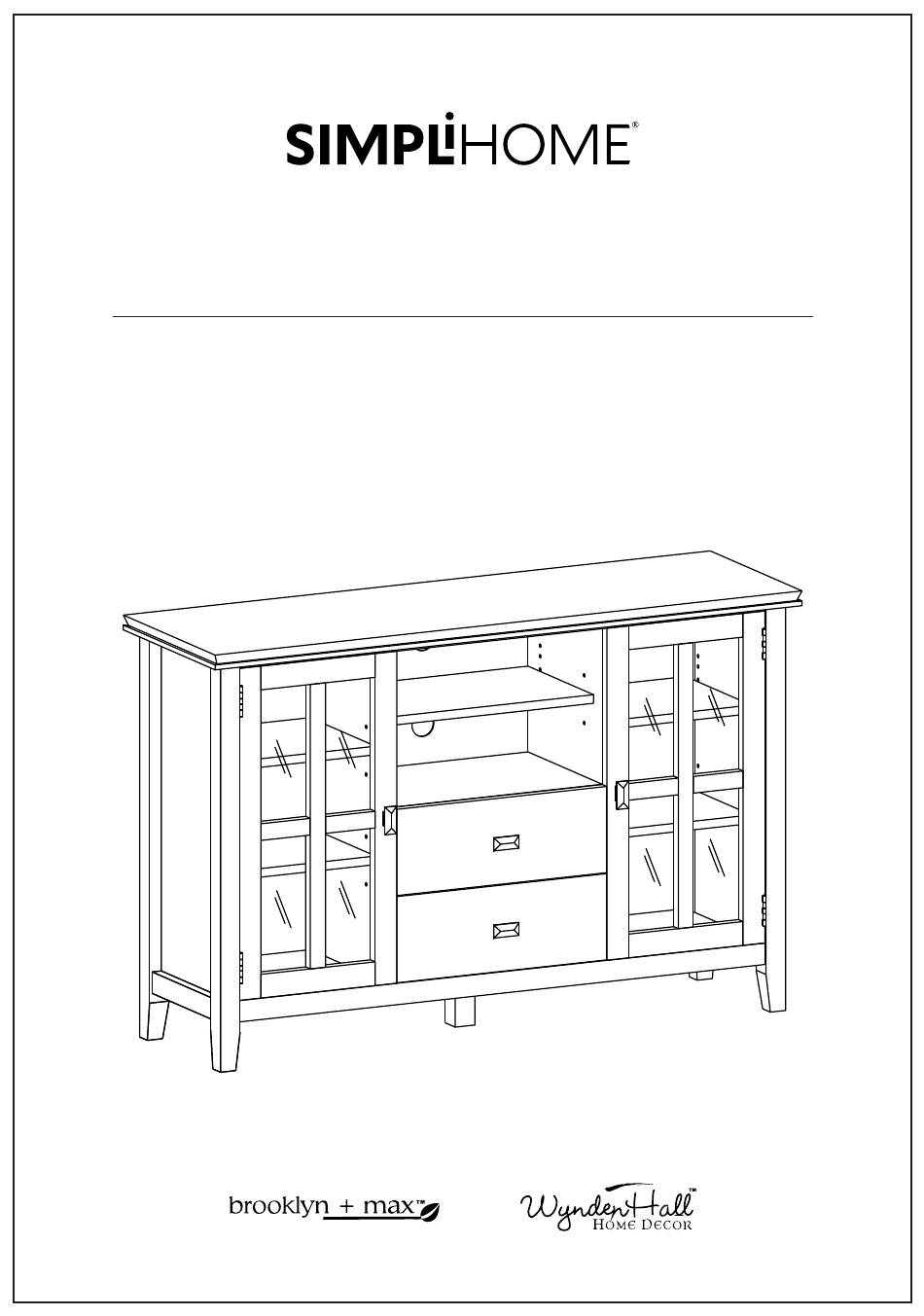

- Page 1 Artisan / Holden / Stratford Tall TV Media Stand Model # AXCART17-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. The recommended maximum width of the television intended for use is 60 inch (152.4 cm). - Page 8 Pre-Assembly Information Model # AXCART17-WH Part Description V16-A V16-BL V16-BR LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-C V16-D V16-EL LEFT DIVIDER CENTRE SHELF BOTTOM SHELF QTY 1 QTY 1 QTY 1 V16-ER V16-F V16-G DOOR (L&R Same) RIGHT DIVIDER SHELF PART QTY 2...
-
Page 9: Drawer Bottom
Pre-Assembly Information Model # AXCART17-WH Part Description V16-H V16-I V16-J BACK PANEL SHELF PART BACK PANEL QTY 1 QTY 1 QTY 1 V16-KL V16-KR V16-L Warning Label LEFT BACK PANEL RIGHT BACK PANEL DRAWER FRONT QTY 1 QTY 1 QTY 2 V16-ML V16-MR V16-N... -
Page 10: Pre-Assembly Information
Pre-Assembly Information Model # AXCART17-WH Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 26 QTY 20 SETS PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15 mm M3 X 12 mm M4 X 15 mm QTY 8... - Page 11 Components - Key Diagram Model # AXCART17-WH V16-A V16-BL V16-KR V16-EL V16-I V16-H V16-ER V16-KL V16-BR V16-J V16-K V16-F V16-G V16-D V16-P V16-C V16-G V16-F V16-N V16-MR V16-ML V16-O V16-L...
- Page 12 Assembly Model # AXCART17-WH Step 1 V16-MR V16-ML V16-L 1. Attach 4 Cam Lock Pins 2 to back of Left Drawer Front V16-L . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides V16-ML , V16-MR . 3.
- Page 13 Assembly Model # AXCART17-WH V16-N Step 3 V16-MR V16-O V16-L V16-ML 1. Align Drawer Back V16-N with Drawer Bottom V16-O and press firmly into slot. 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3.
- Page 14 Assembly Model # AXCART17-WH Step 5 V16-ER V16-C V16-EL 1. Attach 3 Cam Lock Pins 2 to each Divider V16-EL , V16-ER . 2. Align Cam Lock Pins with guide holes and attach Center Shelf V16-C . 3. Insert 6 Cam Locks 2 into guide holes on Center Shelf V16-C . 4.
- Page 15 Assembly Model # AXCART17-WH Step 6 V16-ER V16-EL V16-D 1. Attach Dividers V16-EL , V16-ER to Bottom Shelf V16-D using 6 Allen Key Screws 1 through guide holes.
- Page 16 Assembly Model # AXCART17-WH Step 7 V16-BR V16-BL V16-D 1. Attach 6 Cam Lock Pins 2 to 2 Sides V16-BL , V16-BR using pre-drilled holes. 2. Align Cam Lock Pins with guide holes on Bottom Shelf V16-D and attach Bottom Shelf V16-D . 3.
- Page 17 Assembly Model # AXCART17-WH Step 8 V16-BR V16-D V16-BL V16-P V16-P 1. Attach Bottom Support Leg V16-P to Bottom Shelf V16-D using 4 Phillips Screws 10. 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 18 Assembly Model # AXCART17-WH Step 9 V16-BR V16-A V16-ER V16-EL V16-BL 1. Attach Top V16-A to 2 Sides V16-BL , V16-BR and 2 Dividers V16-EL , V16-ER using Allen Key Screws 1 through guide holes. 2. Use Allen Key 3 to tighten screws. Do not over-tighten.
- Page 19 Assembly Model # AXCART17-WH Note: Step 10 The back of the tv frame does not have pre-drilled holes to a ach the back panels. V16-I V16-J V16-KL V16-KR Warning Label V16-I V16-J V16-KR V16-KL 1. Use Phillips screws Round Head 6 to attach Back Panels V16-I , V16-J , V16-KL , V16-KR through guild holes.
- Page 20 Assembly Model # AXCART17-WH Step 11 First Step Last Step ( after adjust the door ) V16-BR V16-F V16-BL V16-D V16-F 1. Attach hinges on Doors V16-F to Sides V16-BL , V16-BR using Phillips Screws 4 into pre-drill holes: - Using Phillips screwdriver to attach Screws 4 at middle hole of hinges for both top &...
- Page 21 Assembly Model # AXCART17-WH Step 12 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 V16-H V16-G V16-G 1. Use 4 Shelf Supports 9 for each Shelf V16-H or V16-G in desired location . 2. 2 Shelf Supports 9 may be used on back top of each Shelf V16-H or V16-G as a tipping restraint.
- Page 22 Assembly Model # AXCART17-WH Step 13 1. Insert assembled drawers into glides on assembled Tall TV Media Stand.
- Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
