GFW LOVE HEARTS Assembly Instructions Manual

Storage box
Hide thumbs

Advertisement

Quick Links

Download this manual
LOVE HEARTS / STARS OTTOMAN STORAGE BOX
Thank you for purchasing the LOVE HEARTS / STARS OTTOMAN STORAGE BOX.
Please read the instructions carefully to ensure safe operation of the product.
ASSEMBLY INSTRUCTIONS
Size: W90 x D43 x H45cm
COLOUR: WHITE
Batch No.WMO16679(PO#2755)
30Mins
Set Up
Page 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the LOVE HEARTS and is the answer not in the manual?

Questions and answers

Related Manuals for GFW LOVE HEARTS

Summary of Contents for GFW LOVE HEARTS

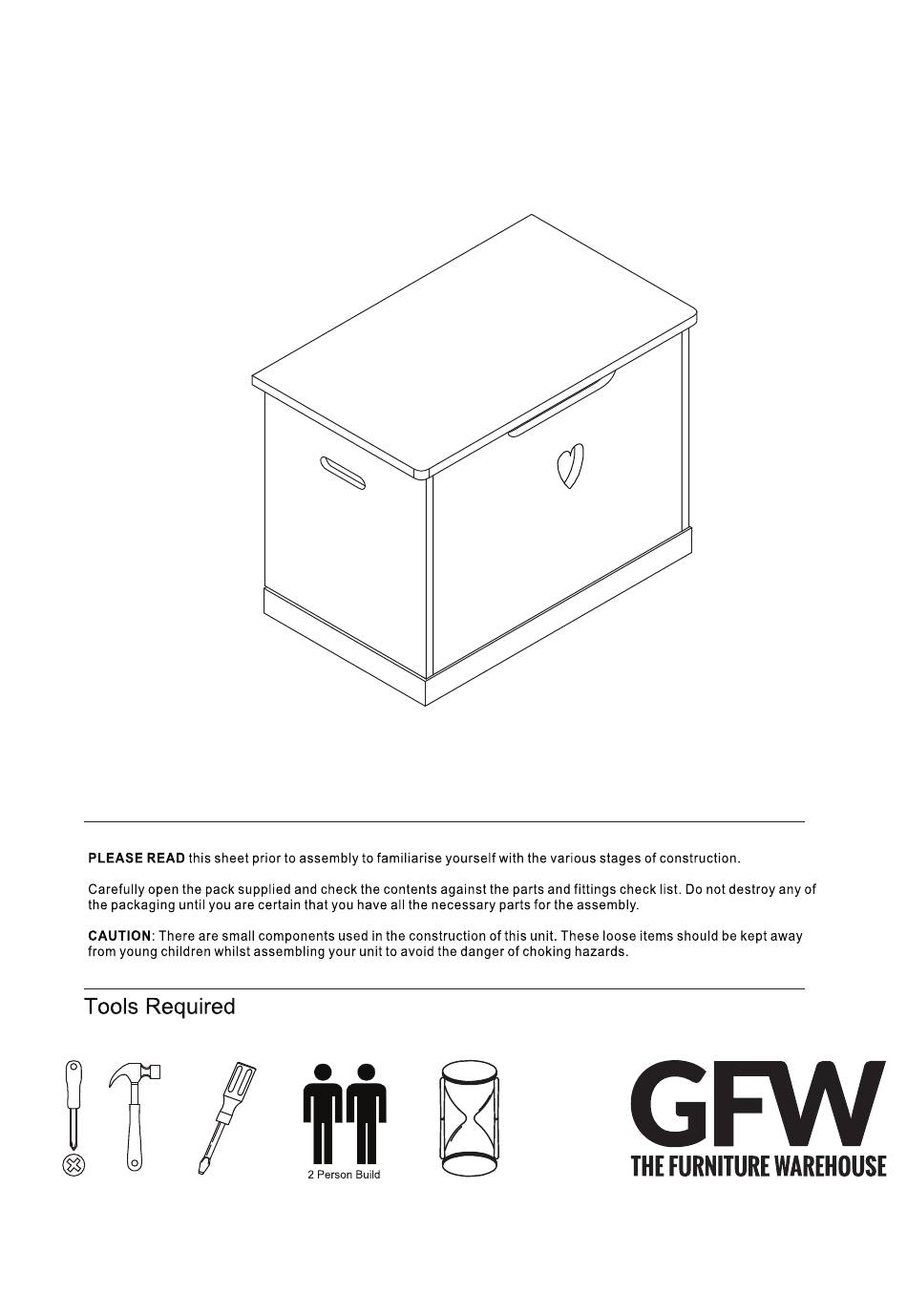

  • Page 1 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS Thank you for purchasing the LOVE HEARTS / STARS OTTOMAN STORAGE BOX. Please read the instructions carefully to ensure safe operation of the product. Size: W90 x D43 x H45cm COLOUR: WHITE...

  • Page 2: Care Information

    LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is intended for a maximum weight of 20 kg spread evenly thorough the storage compartments. Do not exceed this weight.
  • Page 3 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling this product. If any components are missing, please contact your retailer . The fittings pack contains small items that should be kept away from small children.
  • Page 4 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS DESCRIPTION:BACK PANEL DESCRIPTION:TOP PANEL DESCRIPTION:FRONT PANEL DESCRIPTION:LEFT SIDE PANEL QTY:1 PC QTY:1 PC QTY:1 PC QTY:1 PC DIMENSIONS:645X384X12MM DIMENSIONS:700X430X12MM DIMENSIONS:645X384X12MM DIMENSIONS:415X385X12MM DESCRIPTION:RIGHT SIDE PANEL DESCRIPTION:BOTTOM PANEL QTY:1 PC QTY:1 PC DIMENSIONS:415X385X12MM DIMENSIONS:700X430X50MM Batch No.WMO16679(PO#2755)
  • Page 5 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS FIXINGS (TO SCALE) Dimensions CAM BOLT (6x35mm) CAM LOCK (12x10mm) WOODEN DOWL (6X30MM) SCREWS (4x10mm) SCREWS (4x14mm) SCREWS (4x40mm) +NUT (10x10mm) NOT TO SCALE HINGE LIFT UP HINGE CAUTION: There are many small components used in the construction of this product.
  • Page 6 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS Layout Parts on Soft Surface Layout all part on a soft surface i.e. Rug,carpet or packaging carton Batch No.WMO16679(PO#2755) Page 6 of 11...
  • Page 7 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS 2: FRONT PANEL x 1 3: BACK PANEL x 1 5: RIGHT SIDE PANEL x 1 C: WOODEN DOWEL x 4 F: SCREWS x4 I: +NUT x4 4: LEFT SIDE PANEL x 1...
  • Page 8 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS 6: BOTTOM PANEL x 1 A: CAM BOLT x 10 C: WOODEN DOWEL x 8 6: BOTTOM PANEL x 1 B: CAM LOCK x 10 Batch No.WMO16679(PO#2755) Page 8 of 11...
  • Page 9 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS D: SCREWS x 6 G: HINGE x 3 1: TOP PANEL x 1 D: SCREWS x 6 Batch No.WMO16679(PO#2755) Page 9 of 11...
  • Page 10 LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS STEP 7 E: SCREWS x 4 H: LEFT UP HINGE x 1 STEP 8 - Ensure that ngers and legs are clear of the lid when closing this product. Batch No.WMO16679(PO#2755)

  • Page 11: Complete Assembly

    LOVE HEARTS / STARS OTTOMAN STORAGE BOX ASSEMBLY INSTRUCTIONS Complete Assembly LOVE HEARTS / STARS OTTOMAN STORAGE BOX Your is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.

This manual is also suitable for:

Stars ottoman
