Dynojet Power Commander V Installation Instructions page 4

FIG.D
FIG.E
FIG.F
16-009 www.powercommander.com
Unplug
8
Unplug
9
10 Locate the Throttle Position Sensor on the left hand side of the throttle bodies.
Unplug

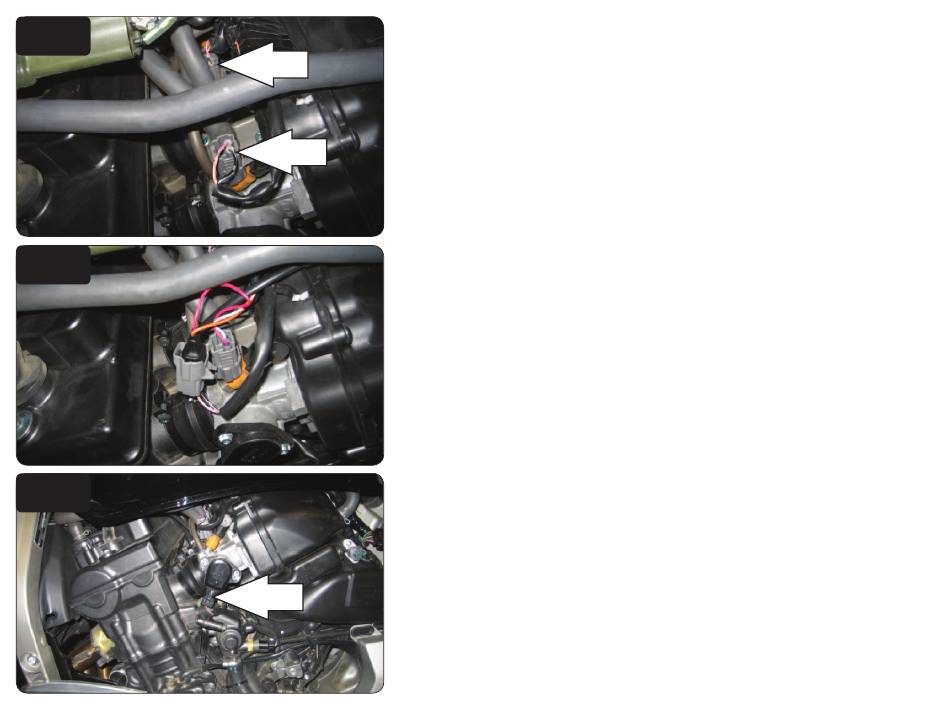

Unplug the stock wiring harness for cylinders #2 and #3 (Fig. D).
Plug the connectors from the PCV inline of the stock injectors and wiring
harness (Fig. E).
This picture only shows cylinder #1. Repeat steps 8-9 for all 4 injectors.
PCV harness:
ORANGE - cylinder #1
YELLOW - cylinder #2
GREEN - cylinder #3
BLUE - cylinder #4
Unplug this connector (Fig F).
2009-2010 Honda CBF600 PCV - 4
