FEATURES
Complete with the following items:
•
— U.1998 Hot water tank
— U.1307LS-2 Hot water faucet
— U.1106 Hot water filter
Instantly provides near boiling flltered water for
•
beverages and food preparation
Unique Anti-Scald lock: innovative push mechanism
•
with exclusive spring-back valve
Long lasting brass construction
•
Swivel spout for ease of filling containers
•
Order U.PRF1 for hot water replacement filter cartridge
•
9"
INLET FROM FAUCET
8"
Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com

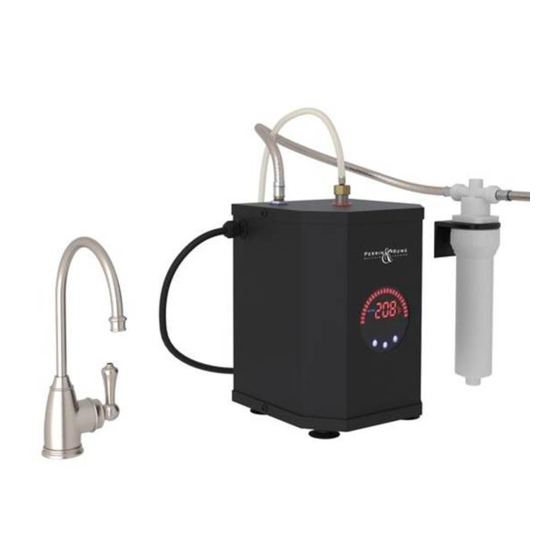

PERRIN & ROWE® GEORGIAN ERA™ C-SPOUT HOT WATER FAUCET, TANK AND
FILTER KIT
U.KIT1307
* PLEASE ALLOW 12 1/2"
(MINIMUM) TO
ALLOW FOR FILTER
REPLACEMENT.
Ø2"
Ø1 3/4"
COLORS/FINISHES
Polished Chrome
•
Polished Nickel
•
Satin Nickel
•
English Bronze
•
English Gold
•
Satin English Gold
•
Unlacquered Brass*
•
TO HOT TANK
5 1/2"
Ø1 7/8"
houseofrohl.com
WARRANTY
• 5-year Limited Warranty on Faucet
• 3-year Limited Warranty on Tank
* No Warranty
2 3/8"
Ø1 1/4" HOLE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rohl Perrin & Rowe GEORGIAN ERA U.KIT1307
Summary of Contents for Rohl Perrin & Rowe GEORGIAN ERA U.KIT1307
- Page 1 Long lasting brass construction • Swivel spout for ease of filling containers • Order U.PRF1 for hot water replacement filter cartridge • 2 3/8" 9” INLET FROM FAUCET 8” TO HOT TANK 5 1/2" * PLEASE ALLOW 12 1/2” (MINIMUM) TO Ø1 7/8" ALLOW FOR FILTER REPLACEMENT. Ø2" Ø1 1/4" HOLE Ø1 3/4” Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
-
Page 2: Important Warning
Max 72psi ccessories, soap *IMPORTANT!! ENSURE A PRESSURE REDUCING VALVE (PRV) IS USED IN-LINE uct catalogues or WITH COLD INLET AND IDEALLY SET TO 43.5PSI (3BAR). FAILURE TO DO SO MAY RESULT IN REDUCED PRODUCT PERFORMANCE.** 9001307U Issue 1 Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com... - Page 3 Operation SPANNER regulator. (PROVIDED) FLOW REGULATOR 9/16" FEMALE - MALE Ensure all connections are firmly tightened. Consult the guide provided with the heater tank to ensure correct positioning and installation. 3/8" COMPRESSION SERVICE VALVE Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 4 " to the flow Operation ctions are firmly For instant hot water, e provided with the Once finished, release the press down on the sure correct handle and the valve will lever/button and rotate stallation. automatically close. handle forward. Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 5 All products supplied by ROHL carry warranties against manufacturing defects. IMPORTA For full ROHL WARRANTY please contact ROHL or visit www.rohlhome.com Please contact the local ROHL retailer or showroom where you purchased this product for all warranty related claims. PLEASE ENSURE USED.
- Page 6 INSTALLATION INSTRUCTIONS Electronic Instant Hot Water Appliance Installation, Operation and Care Instructions Please read these instructions fully before commencing the installation and operation of the Electronic Instant Hot Water Appliance Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
-
Page 7: What You Need To Know Before You Start
The required water supply pressure is a minimum of 22psi to maximum of 72psi. The water filter must be connected to the electronic instant hot water appliance and re- placed every 6 months or the guarantee will be void. Equipment Required: Tape Measure Adjustable Wrench Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com... -
Page 8: Components Included
Electronic Instant Hot Water Appliance with USA IEC Power lead. The water connections are to allow correct connections from the instant hot water Dis- penser to the electronic instant hot water Appliance. ” Outlet Connector 3/8 BSP to Silicon Tube ” Inlet Connector 3/8 Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com... -
Page 9: Important Safety Instructions
Children should be supervised to ensure that they do not play with the electronic instant hot water appliance or in- stant hot water Dispenser, a safety springback handle is used to control the flow of the near boiling water for additional safety. Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com... -
Page 10: Installation Requirements
Should you experience any discharge of water from the spout during heat up, you can reduce the setting to compensate for this by 3F degrees at a time. If in doubt please ask your dealer for further guidance. Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com... -
Page 11: Installation
Dispenser connection pipes and the power cord will reach without being stretched. The electronic instant hot water appliance must be positioned so the tubes from and to the instant hot water Dispenser do not twist or kink. Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com... - Page 12 Turn the instant hot water handle off and check all connections for water tightness and leaks. Any leaking joint must be tightened to ensure no water leakage and the above priming undertaken again and checked for water tightness before connecting to the power socket. Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 13 Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 14 To provide additional water security to avoid property damage the electronic instant hot water appliance can be placed in a drain pan and connected to a suitable drain outlet to avoid any water damage. The drain pan should be installed using the manufacturers installa- tion instructions. Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
-
Page 15: Troubleshooting
Avoid less spout. correctly due to very than 1/3 of a pint draw offs of wa- small draw off of water ter. Remove and clean the aerator. Check silicon pipe length. The spout is blocked Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com... - Page 16 Ensure the pipes are not twisted twisted or blocked or kinked to restrict flow Remove and clean the aerator IF YOU ARE IN ANY DOUBT THEN POWER OFF THE ELECTRONIC INSTANT HOT WATER APPLIANCE AND CALL THE SERVICE AGENT Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 17 INSTALLATION INSTRUCTIONS Customer Services : ROHL LLC 3 Parker Irvine, California 92618-1605 Phone 800-777-9762 www.rohlhome.com Guarantee Void Unless The Water Filter Is Replaced Every 6 Months Issue : PRV114112017 Rohl & Perrin & Rowe are Registered trade marks. Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 18 Should you require any advice, or a quick solution to a problem with this product please contact in the first instance the supplier/showroom from which it was purchased. • T: 1-800-777-9762 • E: rohlinfo@rohlhome.com • W: www.rohlhome.com 9001914U Issue Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
- Page 19 Should you require any advice, or a quick solution to a problem with this product please contact in the first instance the supplier/showroom from which it was purchased. • T: 1-800-777-9762 • E: rohlinfo@rohlhome.com • W: www.rohlhome.com Issue 9001914U Consult your local House of Rohl showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to houseofrohl.com...
