Hooker Furniture EC245 Operational Instruction

Style No.: EC245

Carefully unpack all parts and identify them with parts list before

attempting to assemble the chair.

IMPORTANT: DO NOT TIGHTEN BOLTS AND SCREWS FULLY UNTIL

YOU HAVE COMPLETED THE FINAL ASSEMBLY.

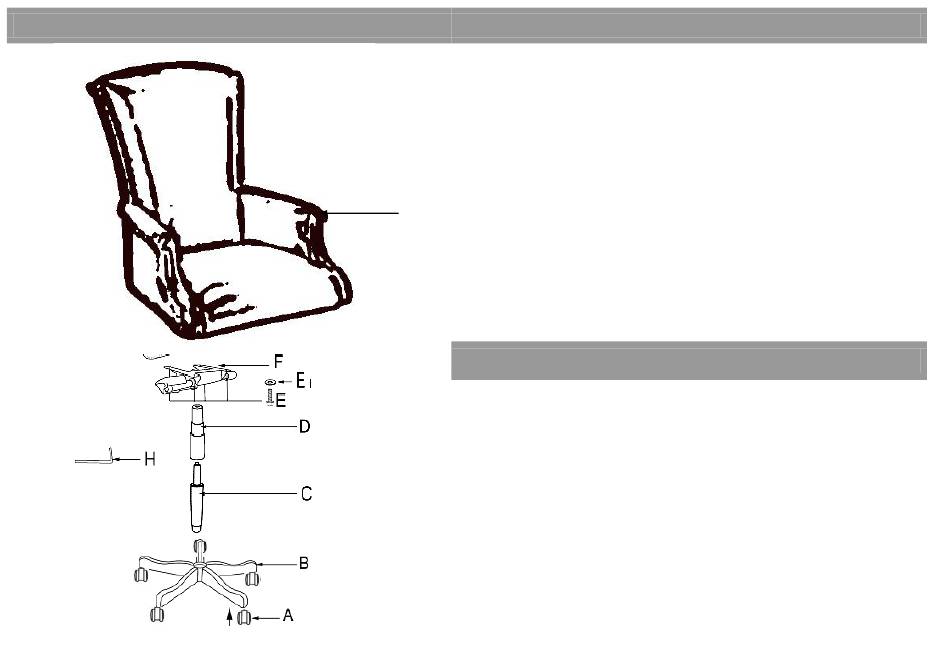

1. Carefully remove the 5 STAR BASE(B) from the carton. The base is

located behind the fiberboard that is behind the chair UNIT

SEATING(G).

2. Put 5 CASTERS (A) into the holes of 5 STAR BASE (B).

3. Insert GAS LIFT (C) to the center hole top of 5 STAR BASE (B), and

put the BELLOWS(D) onto the GAS LIFT(C).

4. Attach SEAT PLATE (F) to the Unit Seating(G) by using 4 SCREWS

(E) with 4 FLAT WASHERS (E1).

5. Insert the pre-assembled seat unit onto the gas lift to finish the final

assembly.

6. Be sure that all the screws are fully tightened before using.

A. CASTERS

B. 5 STAR BASE

C. GAS LIFT

D. BELLOWS

E. SCREWS (5/16"x1-1/4")

E1. FLAT WASHERS

F. SEAT PLATE

G. UNIT SEATING

H. ALLEN KEY

Assembly Instructions

Table of Contents

Do you have a question about the EC245 and is the answer not in the manual?

Page 1 Style No.: EC245 Assembly Instructions Carefully unpack all parts and identify them with parts list before attempting to assemble the chair. IMPORTANT: DO NOT TIGHTEN BOLTS AND SCREWS FULLY UNTIL YOU HAVE COMPLETED THE FINAL ASSEMBLY. 1. Carefully remove the 5 STAR BASE(B) from the carton. The base is located behind the fiberboard that is behind the chair UNIT SEATING(G).
Page 2 EC245 Operational Instruction The instructions below are for the chair mechanism operating: A:This handle is for the seater reclining locking,pull the handle outwards,the mech is loose to recline; when you want to keep the chair upright,push the handle inwards and it will lock at this position.There is only one position you can lock at.
