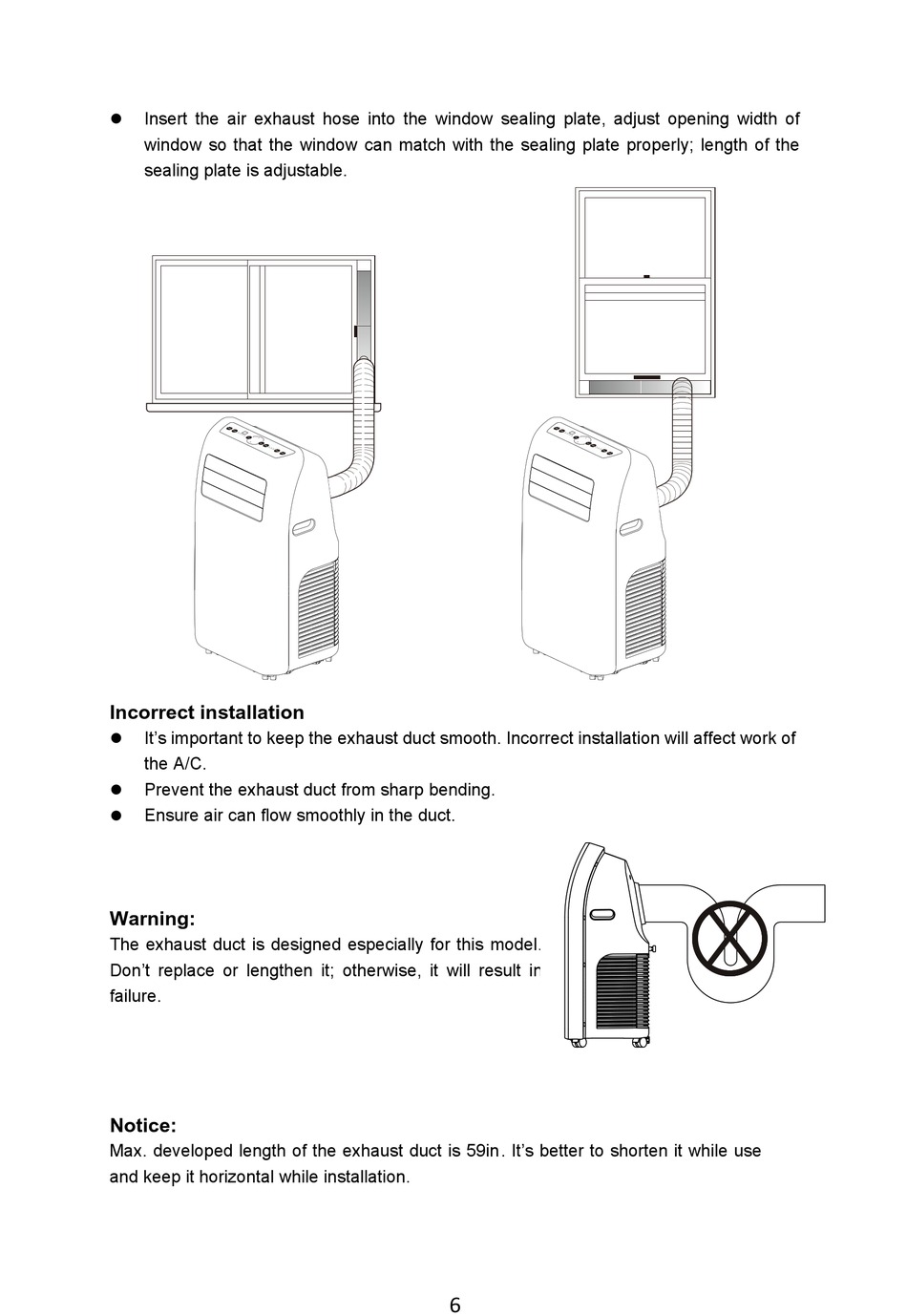

Insert the air exhaust hose into the window sealing plate, adjust opening width of

window so that the window can match with the sealing plate properly; length of the
sealing plate is adjustable.
Incorrect installation
It's important to keep the exhaust duct smooth. Incorrect installation will affect work of

the A/C.
Prevent the exhaust duct from sharp bending.

Ensure air can flow smoothly in the duct.

Warning:
The exhaust duct is designed especially for this model.
Don't replace or lengthen it; otherwise, it will result in
failure.
Notice:
Max. developed length of the exhaust duct is 59in. It's better to shorten it while use
and keep it horizontal while installation.
6
