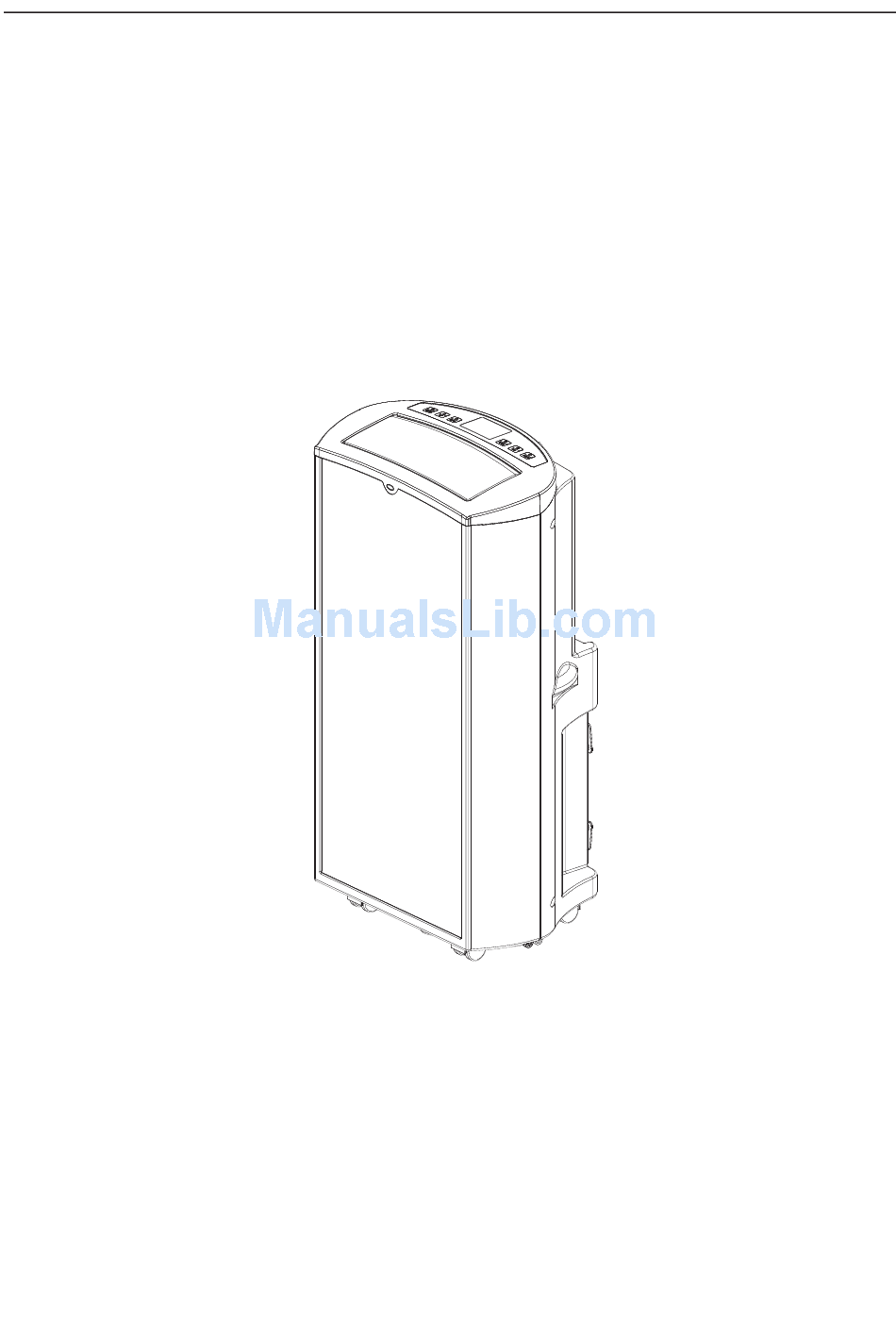

Shinco – SPHN12W/ SPHN14W
12,000/14,000 BTU Portable A/C with Heat
Owner's Manual
Thank you for selecting our high-quality mobile air conditioner from Shinco. Before use,
please read this entire manual carefully for information regarding setting up your portable A/C,
operating it, and tips on regular maintenance. For any problems, please refer to the Quick
Troubleshooting as well as Limited Warranty documents included with this portable A/C.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPHN12W and is the answer not in the manual?

Questions and answers

Summary of Contents for Shinco SPHN12W

  • Page 1 12,000/14,000 BTU Portable A/C with Heat Owner’s Manual Thank you for selecting our high-quality mobile air conditioner from Shinco. Before use, please read this entire manual carefully for information regarding setting up your portable A/C, operating it, and tips on regular maintenance. For any problems, please refer to the Quick...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents-------------------------------------------------------------------1 Important Safety precautions--------------------------------------------------2-3 Features and Parts List----------------------------------------------------------3-4 Installation-------------------------------------------------------------------------5-6 ----------------------------------------------------------------7-9 Control and Setting ----------------------------------------------------------------------10 Water-Drainage ----------------------------------------------------------------------11-12 Maintenance --------------------------------------------------------------------13 Trouble Shooting ------------------------------------------------------------------------------14 Appendix...
  • Page 3: Important Safety Precautions

    Important Safety Precautions For your and your families’ health, please read the following safety precautions carefully before use of this air conditioner: Requirements The appliance is for indoor use only.  Read all instructions, Rated Power Supply: Please connect the unit with Grounded Power ...
  • Page 4: Features And Parts List

    The minimum distance from furniture and wall should be 19.6inch.  Keep the filters clean. Under normal conditions, the filters should be cleaned approximately  every 30 days. Since the filters remove airborne particles, more frequent cleaning maybe necessary, depending on the indoor air quality. Set the fan speed switch to high cool and the thermostat to the coolest position for the initial ...
  • Page 5 8. Power cord 9. Drain port 10. Up filter frame 11. Protective net 12. Down filter frame 13. Water plug 14. Remote control 15. Exhaust hose 16. Window kits 17. Hose adaptor e atte...
  • Page 6: Installation

    Installation Installation Warning:Before using this unit, please keep it upright at least 2 hours. The unit can be moved easily among the rooms, but please note the following: 1.1 Assemble hose adaptor(picture 1) (picture 1) 1)Prepare male and female parts of hose adaptor, they are almost same on the structure 2)Each hand hold one part, you can connect them easily.
  • Page 7 (Picture3) (Picture 4) 1.4 Please make sure the unit is upright. The unit should be put on the flat floor and 19.6in to around objects. (Picture 5) Fix the other end of the heat-exhausted hose to the air-outlet window kit(picture6, 7) (Picture 6) (Picture 7) Important safeguards...
  • Page 8: Control And Setting

    Control and Setting This portable air conditioner of cooling only model has three functions: cooling, dehumidifying and fan. If the machine you purchased is cool and heat model, it has four functions cooling, heating, dehumidifying and fan Fan has three speeds: high speed, middle speed and low speed, Setting temperature is 16--30 C/60 ~86℉, 24 hours timer, water-throwing function, sensor and water-level protective function.
  • Page 9 off. After timer setting accomplishes effectively, icon will keep on flashing until setting time is due. If set again, history record will be cleared. and Down button: can set temperature and timer .Under cooling or heating mode, the sting temperature ranges from 16~30℃/60~86℉. If press Up button simultaneously, the unit will shift between ℃...
  • Page 10  Auto Swing:Press this key to control swing function.  Auto Clean: Press this key under cooling, dehumidify, and energy saver mode, after unit has been turned off, it will work under low speed to blow condenser water, it will be dry and clean finally.
  • Page 11: Water-Drainage

    WATER-DRAINAGE 1. Manual drainage: 1.1 When water tank is full and unit stop working, please shut off the unit and unplug. Please don’t move the model sharply, or the water will spilt out from water received plate. 1.2 Use a water container to take water under the water plug. 1.3 Screw off the water plug and unplug the water blocker, water will come out to the water container.
  • Page 12: Maintenance

    Maintenance Cleaning Please shut off the unit and unplug the plug before cleaning or maintenance 1. Clean the surface Clean the housing with a duster or a soft wet cloth. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed. 2.
  • Page 13: Maintenance

    Please note: Don’t overexert to avoid buckle of CON filter grille. After Season Maintenance: 1. Pull out the plug in drainage hole and empty the water-received plate, or drain out the water by leaning the unit. 2. Turn on the unit to Fan mode, and press the button for 5 seconds till it to low fan speed. Keep this mode for half day till the conduit is dried.
  • Page 14: Trouble Shooting

    Trouble Shooting Don’t repair or disassemble the unit by yourself, unsuitable repair may make the quality-protected card in vain, and even cause damage to the user or his/her possession. Trouble Reason Solution No power supply Power-on and turn on the unit. Water-full indicator Drain out the inner stored water...
  • Page 15: Appendix

    APPENDIX Fuse Parameter Type: FSD or 50F Voltage: 250V Current: 3.15A The working principium diagram of the unit: Capillary tube Condenser Compressor Evaporator There is no further notice for the change of the parameters above, the exact parameters base on the rating plate.
  • Page 16 Distributed by Avista USA...
