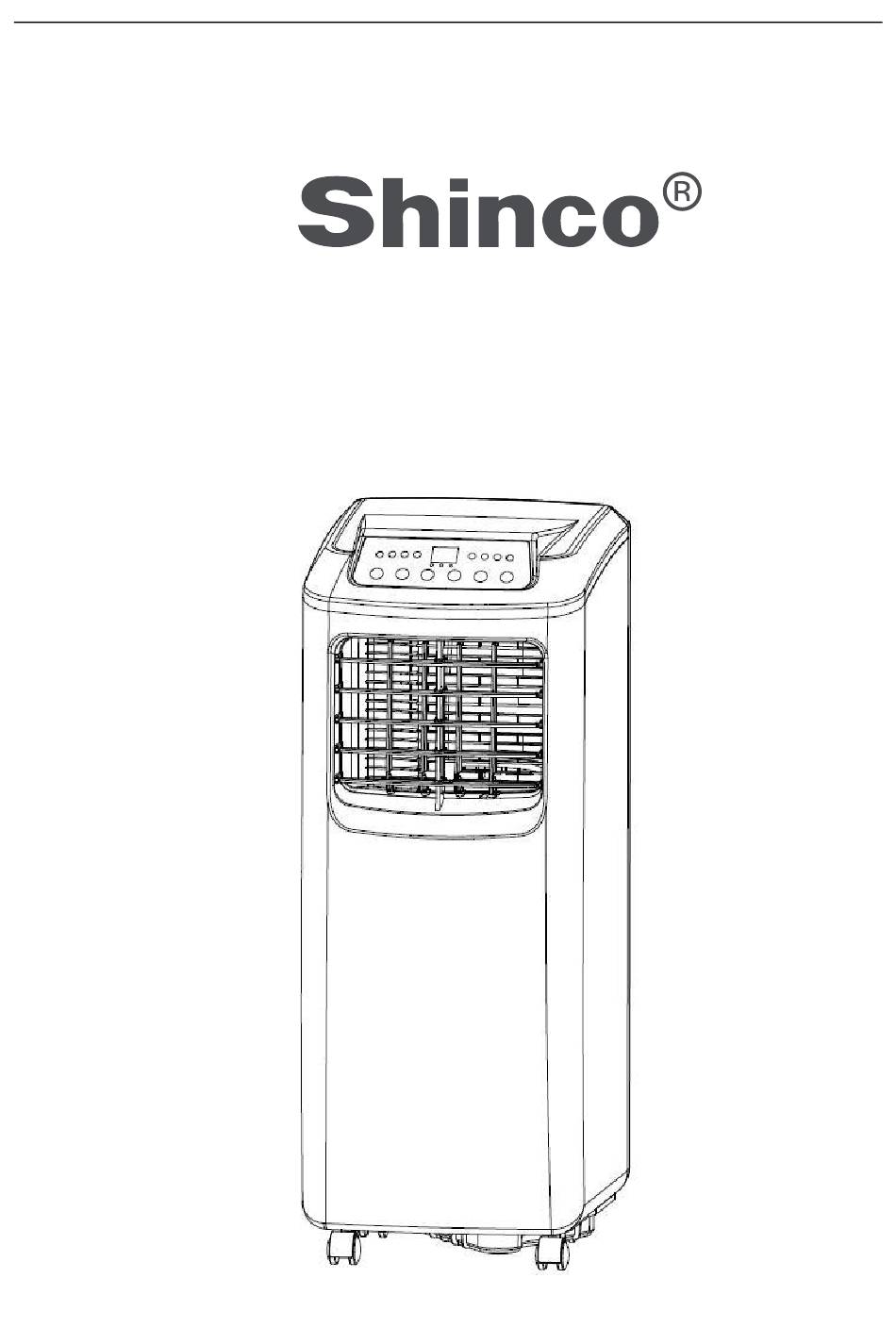

- Page 1 Page: 1/23 SPO6-07C 7000 BTU Portable A/C Instruction Manual...
-
Page 2: Table Of Contents
Page: 2/23 Contents Important Safeguards.....………………………………………….…….…... 3 Function Description……………….……………………………….…………...…. 4 Features and Parts…………………………………………………….…………….4 Installation…………………………………………………..…………………. …….5 Control Setting…………………………………………………………….………….8 Water Drainage Methods………..…………………………………………………10 Maintenance…………………………………..………………….………….………11 End of Season Storage………………..……………………………………………11 Handling of the Unit……………………………………………………………….…12 Troubleshooting……………………….………………………………………….…13 Appendix………………………….……………………………………….…….……14... -
Page 3: Important Safeguards
Page: 3/23 Thank you for selecting this super quality air-conditioner. Please keep this User’ s Manual properly for future reference. Read the User’ s Manual carefully before operating this unit. Important Safeguards Important safeguards: * This air-conditioner is suitable for indoor use only rather than for other occasions. * Rated operating range: this unit shall be connected to 220-240V / 50Hz power output end. -
Page 4: Function Description
Page: 4/23 * Do not wipe or wash the air-conditioner with chemical solvents such as gasolines and alcohols, etc. Before cleaning the air-conditioner, be sure to turn off the power supply and wipe it with soft semi-wet cloth; if the machine is indeed very dirty, wipe it with neutral cleaner. -
Page 5: Features And Parts
Page: 5/23 Features and Parts 1. Features ·Brand new appearance, compact structure with a sense of streamline. ··The appearance of the unit is beautiful and elegant; the remote control can be placed on the right of the handle at the back of the unit, and the remote control features user-friendly memory design. -
Page 6: Installation
Page: 6/23 6. Caster 20. Radiating fine mesh 7. Top cap 21. Condenser filter mesh 8. Horizontal louvre connecting lever 22. Condenser filter frame 9. Main vertical louver 23. Base plate 10.Front shell 24. Remote control 25. circular connector 11. Handle position (right side: remote 26. - Page 7 Page: 7/23 the heat exhaust hose. 1.2 Installation of the heat exhaust hose assembly and unit 1). Pull the end of the heat exhaust hose apart by several turns; 2). Hold the end handle of the C shape buckle of the heat exhaust hose with the left hand and the heat exhaust hose short connector with the right hand, put one end of the heat exhaust hose that is pulled apart onto the snap of the lower air duct bottom, press the C shape buckle of the heat exhaust hose with the left hand by force so that the C...
-
Page 8: Important Notes
Page: 8/23 and keep the unit at least 50cm away from the walls or other objects. (As shown in Figure 7). Figure 7 2). Snap the flat end of the heat exhaust hose short connector into the elliptical hole of the window sealing board assembly (as shown in Figure 8 and 9). - Page 9 Page: 9/23 Celsius Double 8 Fahrenheit degree display degree area indicator indicator Mode Down ON/OFF Up button Fan button button button button °F Buttons Power °C °F °C °F °C °F °C °F °C °F...
- Page 10 Page: 10/23 Ta: Room Surrounding Temperature Ts: Setting Temperature In the mode,pressing Timer and Down button can set sleep function, In sleep function, After operating two hours, the set temperature increases 1°C (1°F) automatically. After operating for another 2 hours, the set temperature will increase 1°C(1°F) again.
-
Page 11: Continuous Drain
Page: 11/23 1. Anti-freeze protection function: Upon cooling, when the compressors operates continuously for more than 10 ℃ minutes, if the pipe temperature Tp is less than or equal to 2 continuously for 20 seconds, the compressor and water spraying motor turn off, other loads operate and LED displays E4, the unit initiates the anti-frost protection function and the buttons are inactive (except the OFF button). -
Page 12: Maintenance
Page: 12/23 2). Insert the OD 13mm PVC drain hose 8mm-10mm into the water outlet; (Figure 12) 3). Connect the drain hose to the WC or outdoor. Note: 1. The drain hose must be installed when there is not water in the baseplate; 2. - Page 13 Page: 13/23 3). Put the evaporator filter frame, condenser filter frame, evaporator filter mesh, and condenser filter mesh into warm water (about 40 °C) to which neutral cleaner is added for cleaning and then dry them in the shade (as shown in Figure 15). Note: 1.
-
Page 14: End Of Season Storage
Page: 14/23 Handling of the Unit 1. Handling and moving of the unit 1). To handle or move the unit, hold the top of the air outlet of the front shell with one hand and the handle position at the top of the back shell with another hand, and leave the unit in the upright position. -
Page 15: Troubleshooting
Page: 15/23 Note: ensure that the unit is put in a dry place. All accessories of the unit shall be protected properly. Troubleshooting Never repair or remove the air-conditioner yourself. Disqualified repair will void the warranty card and may cause harm to the removal personnel and property. If you encounter any of the problems listed in the table below or the recommended remedy does not work, contact the professional service agency. - Page 16 Page: 16/23 Capillary Condenser Compressor Evaporator For specific technical parameters of the models, refer to the nameplate on the product (s). Disposal: do not store waste products with other non-classified wastes. Such wastes shall be stored separately for other special purposes.
- Page 17 Page: 17/23 BeforeInitiation To avoid damage, place the unit in an upright position for at least 24 hours before initiation. Make sure that the air outlet and air inlet are never blocked. Only operate the unit on a horizontal surface to ensure no water leaks out. Warnings ...
- Page 18 Page: 18/23 Additional warning for appliance with R290 refrigerant gas (refer to the rating plate for the type of refrigerant gas used) CAUTION ON FIRE READ THE MAUAL CAREFULLY BEFORE USING THE APPLIANCE R290 refrigerant gas complies with European environmental directives. This appliance contains approximately 230g of R290 refrigerant gas Appliance shall beinstalled, operated and stored in a room with a floor area larger than 11 m...
- Page 19 Page: 19/23 Instruction,RepairingAppliancesContainingR290 1. Checks to thearea Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system,the following precaution shallbecompletedpriortoconductingworkonthesystem. 2. Work procedure Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammablegasorvapourbeingpresentwhiletheworkisbeingperformed.
- Page 20 Page: 20/23 – marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall becorrected; – refrigerating pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corrodedoraresuitablyprotectedagainstbeingsocorroded.
- Page 21 Page: 21/23 12. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. 13.
- Page 22 Page: 22/23 16. Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant.
- Page 23 Page: 23/23 The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recoveryunits and especially not incylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
