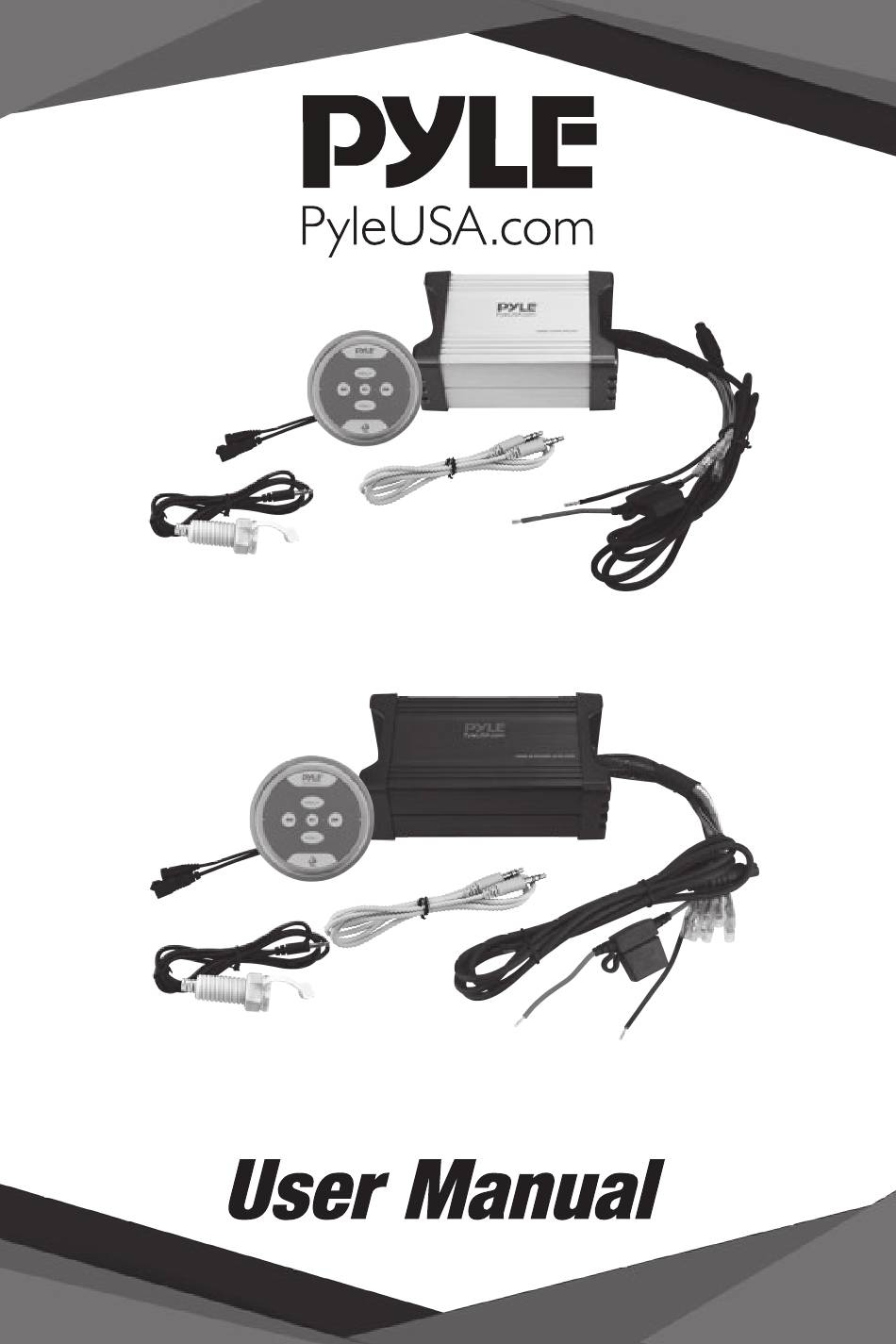

- Page 1 PLMRMBT5B / PLMRMBT5S 600 Watt 2 Channel BT Enabled Marine Grade Amplifier PLMRMBT7B / PLMRMBT7S 1200 Watt 4 Channel BT Enabled Marine Grade Amplifier...
- Page 2 It’s compact, waterproof design allows for flexible mounting possibilities, and makes it simple to expand the audio system capabilities for vehicle. PLMRMBT5B / PLMRMBT5S Features: • 2-Channel Marine Audio Amplifier • Perfect for Custom Installations & Applications • BT Wireless Music Streaming Ability •...
- Page 3 PLMRMBT7B / PLMRMBT7S Features: • 4-Channel Marine Audio Amplifier • Perfect for Custom Installations & Applications • BT Wireless Music Streaming Ability • Waterproof Rated & Weather-Resistant Connectors • Marine Grade Rugged Construction • Integrated Power Wiring Harness • Ability to Connect & Stream Audio from External Devices •...
- Page 4 PLMRMBT5B / PLMRMBT5S • One Piece 2 Channel Marine Power Amplifier • One Piece iPhone / Android Phone Waterproof 3.5mm Stereo to RCA Adaptor • One Piece Marine Grade BT Flush Mounted Controller PLMRMBT7B / PLMRMBT7S • One Piece 4 Channel Marine Power Amplifier •...
- Page 5 POWER AND SPEAKER WIRING PLMRMBT5B PLMRMBT5S BLUETOOTH CONNECTOR Wire Color Description • Red • Battery (+), 12dc • Black • Battery (-), Ground • Green • CH1 (+) • Green/Black • CH1 (-) • Purple • CH2 (+) • Purple/Black •...
- Page 6 POWER AND SPEAKER WIRING PLMRMBT7B PLMRMBT7S BLUETOOTH CONNECTOR Wire Color Description • Red • Battery (+), 12dc • Black • Battery (-), Ground • White • CH1 (+) • White/Black • CH1 (-) • Gray • CH2 (+) • Gray/Black •...
- Page 7 BT Pairing and Connection: Volume Up Previous Song Next Song Volume Down Play / Pause Press Hold = On/Off BT Pairing and Connection: 1. Connect BT controller box to your device 2. Press and Hold for three seconds until power indicator lights (red) 3.The system will automatically go into pairing mode The powe indicator will turn red for about 7 seconds and then alternating red and blue (BT blue Power red)
