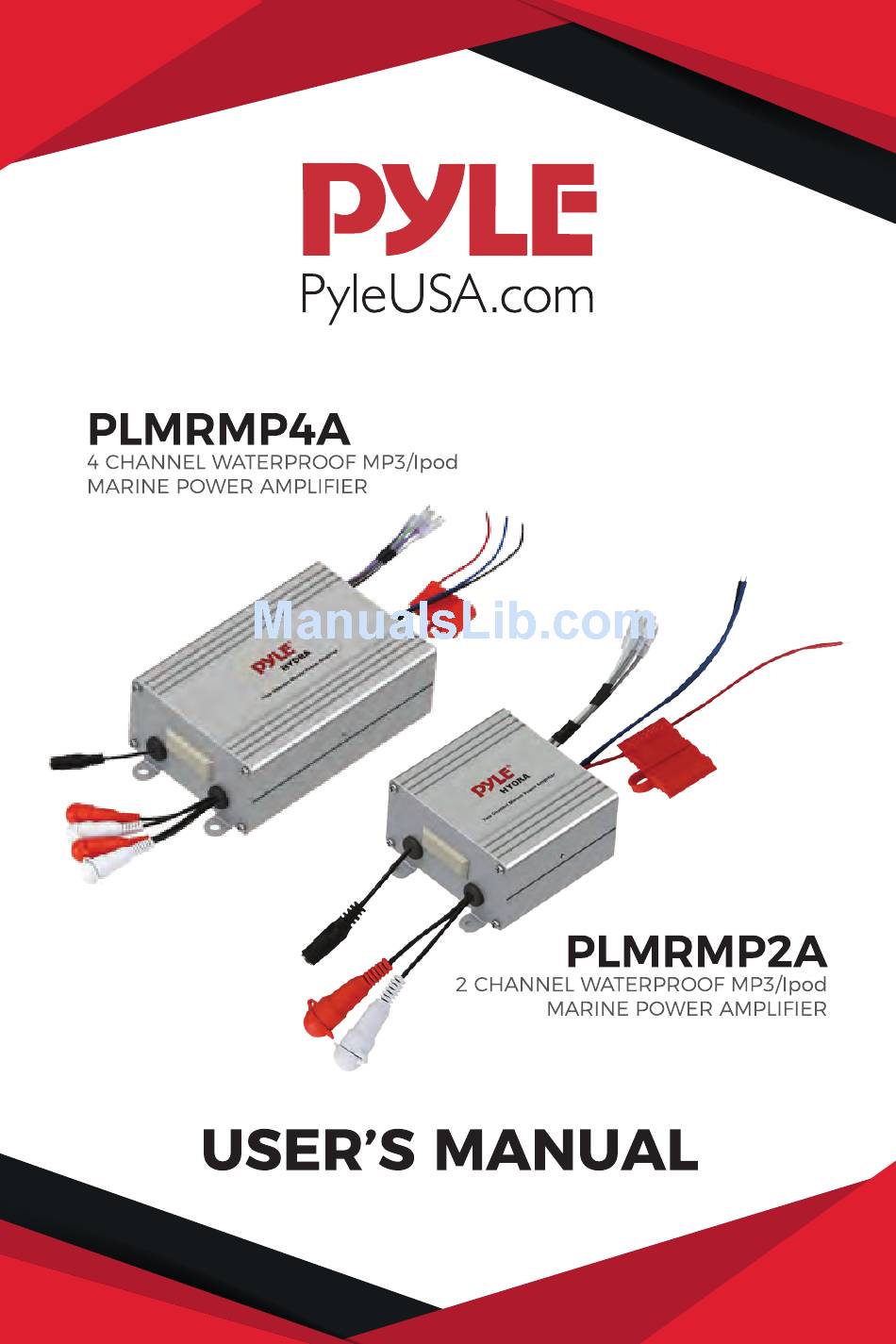

- Page 2 Enjoy convenient music streaming from a universal mount audio system with the Pyle Compact Marine Ampli er Kit. It’s compact, waterproof design allows for exible mounting possibilities, and makes it simple to expand the audio system capabilities for vehicle. PLMRMP2A FEATURES: •...
- Page 3 If something is missing, contact the store where you purchased the product. PLMRMP2A One Piece 2 Channel Waterproof Marine Power Ampli er One Piece iPod / MP3 Waterproof 3.5mm Stereo to RCA Adaptor...
-
Page 4: Installation Precautions
Installation Precautions Before you drill or cut any holes, investigate your vessel’s layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electrical wiring. Never operate the ampli er when it is unmounted. Attach all audio system components securely within the ampli er to prevent damage, especially in an accident. - Page 5 Controls, Input and Output Cables: dB GAIN The switches and gain settings are located behind a watertight plug, which also lights up when the ampli er is on. Be sure to replace the plug when nished with adjustments 1. The INPUT LEVEL switch selects the input sensitivity of the ampli er. If you are connecting to a LINE level source (typically any RCA type connection) then the switch should be in the LINE (out) position.
- Page 6 3. The GAIN control adjusts the overall level of the ampli er. When using the ampli er without volume control the level should beset to achieve a balance with other loudspeakers in the system. As arule, keep the gain setting as low as possible while still insuring that the system will reach full output power.
- Page 7 Power and Speaker Wiring WHITE WHITE/BLACK GRAY GRAY/BLACK GREEN Four Channel Marine Power Amplifier GREEN/BLACK PURPLE BLACK BLUE Accessory switch PURPLE/BLACK 4-8 ohm speakers BATTERY WIRE COLOR DESCRIPTION Battery (+), 12dc Black Barrery (-), Ground Blue Remote Turn On, 12vdc = ON White CH1 (+) Whire/Black...
