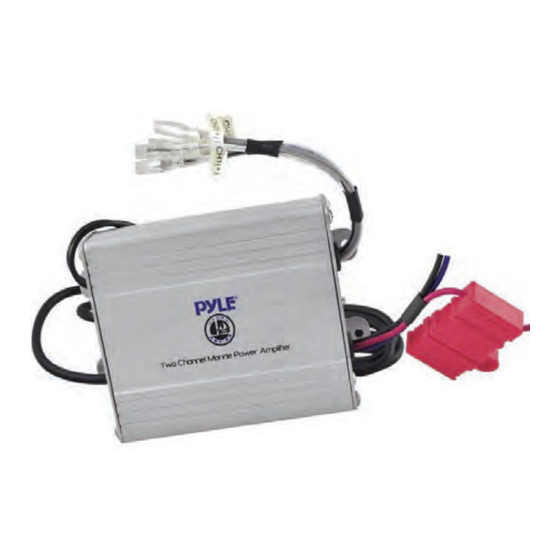

PLMRMBT5B / PLMRMBT5S 600 Watt 2 Channel Bluetooth Enabled Marine Grade Ampli er PLMRMBT7B / PLMRMBT7S 1200 Watt 4 Channel Bluetooth Enabled Marine Grade Ampli er...
Page 2
It’s compact, waterproof design allows for exible mounting possibilities, and makes it simple to expand the audio system capabilities for vehicle. PLMRMBT5B / PLMRMBT5S Features: • 2-Channel Marine Audio Amplifier • Perfect for Custom Installations & Applications • Bluetooth Wireless Music Streaming Ability •...
Page 3
PLMRMBT7B / PLMRMBT7S Features: • 4-Channel Marine Audio Amplifier • Perfect for Custom Installations & Applications • Bluetooth Wireless Music Streaming Ability • Waterproof Rated & Weather-Resistant Connectors • Marine Grade Rugged Construction • Integrated Power Wiring Harness • Ability to Connect & Stream Audio from External Devices •...
PLMRMBT5B / PLMRMBT5S • One Piece 2 Channel Marine Power Amplifier • One Piece iPhone / Android Phone Waterproof 3.5mm Stereo to RCA Adaptor • One Piece Marine Grade Bluetooth Flush Mounted Controller PLMRMBT7B / PLMRMBT7S • One Piece 4 Channel Marine Power Amplifier •...
Page 5
Controls, Input and Output Cables: dB GAIN L INE NOR MA L S PEA KE R R E V E R S E GA IN The switches and gain settings are located behind a watertight plug, which also lights up when the amplifier is on. Be sure to replace the plug when finished with adjustments.
4. BLUETOOTH CONTROL: Plug for the Marine Grade Bluetooth Flush Mounted Controller. When installed, this control will turn o the Ampli er when turned all the way down. 5. INPUT Stereo RCA audio input for connecting other audio devices. Power and Speaker Wiring WHITE WHITE/BLACK Two Channel Marine Power Ampli er...
Page 7
Power and Speaker Wiring WHITE WHITE/BLACK GRAY GRAY/BLACK Four Channel Marine Power Ampli er GREEN GREEN/BLACK PURPLE BLACK BLUE Accessory switch PURPLE/BLACK 4-8 ohm speakers BATTERY Wire Color Description • Red • Battery (+), 12dc • Black • Battery (-), Ground •...
Volume Up Previous Song Next Song Volume Down PLMRMBTxx Play / Pause Press Hold = On/O Bluetooth Pairing and Connection: 1. Connect Bluetooth controller box to your device 2. Press and Hold for three seconds until power indicator lights (red) 3.
