ramia SCH-GP Assembly Instructions

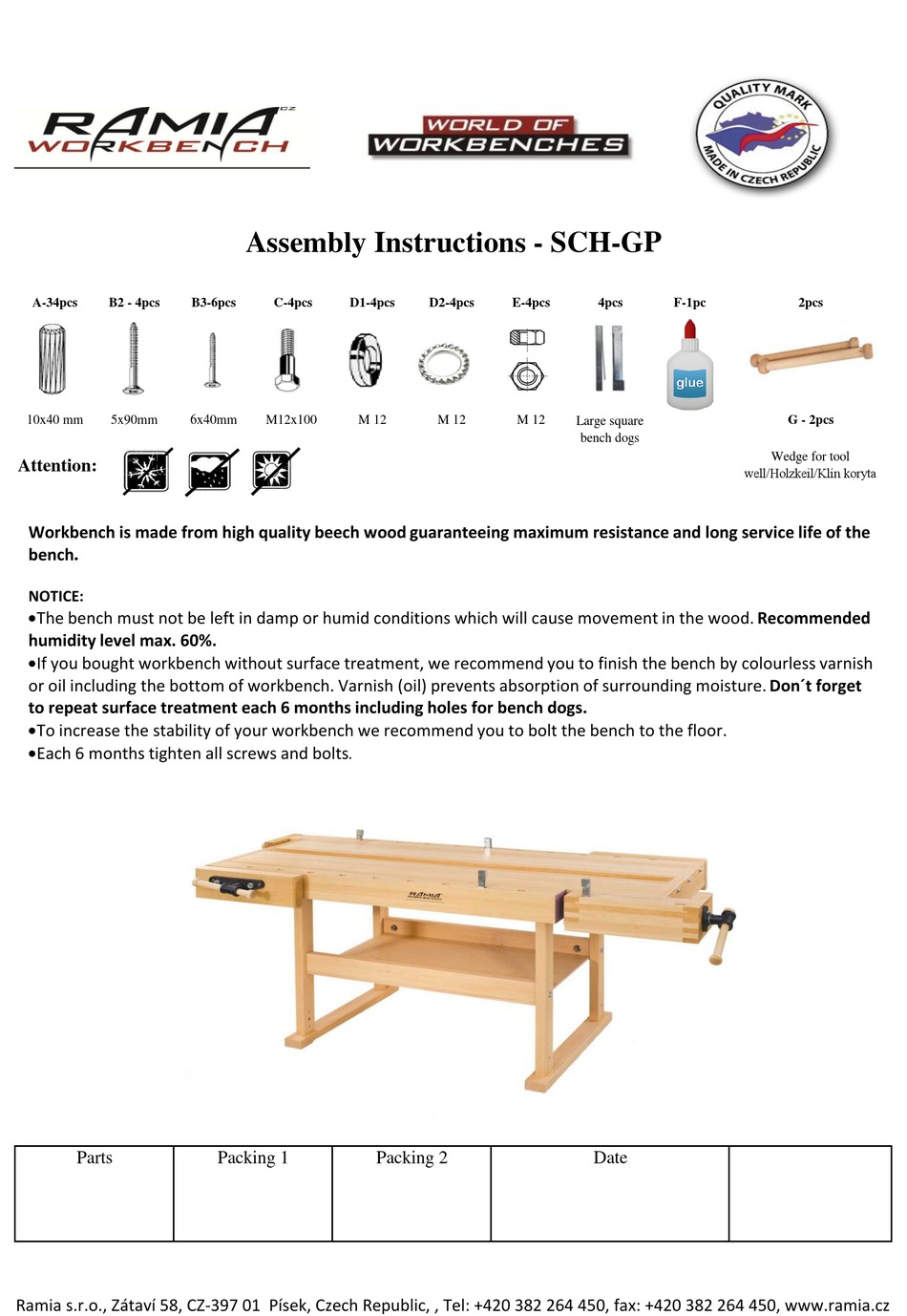

Assembly Instructions - SCH-GP
A-34pcs B2 - 4pcs B3-6pcs C-4pcs D1-4pcs D2-4pcs E-4pcs 4pcs F-1pc 2pcs
10x40 mm 5x90mm 6x40mm M12x100 M 12 M 12 M 12 G - 2pcs
Large square
bench dogs
Wedge for tool

Attention:

well/Holzkeil/Klín koryta
Workbench is made from high quality beech wood guaranteeing maximum resistance and long service life of the
bench.

NOTICE:

The bench must not be left in damp or humid conditions which will cause movement in the wood. Recommended
humidity level max. 60%.
If you bought workbench without surface treatment, we recommend you to finish the bench by colourless varnish
or oil including the bottom of workbench. Varnish (oil) prevents absorption of surrounding moisture. Don´t forget
to repeat surface treatment each 6 months including holes for bench dogs.
To increase the stability of your workbench we recommend you to bolt the bench to the floor.
Each 6 months tighten all screws and bolts
.
Parts Packing 1 Packing 2 Date
