PRO-ASM 1700 Assembly Instructions
A1-30pcs A2-8pcs B1-4pcs B3-2pcs B4-3pcs C-4pcs D1-4pcs D2-4pcs E-4pcs F-1pcs G-1pcs H-2pcs
Wedge for
tool well
M12 M12
10x40 mm 8x40mm 5x110mm 4x40mm 6x40mm M12x100 M12
2+2pcs
2pcs
Attention:
Ø 19 mm
ENG

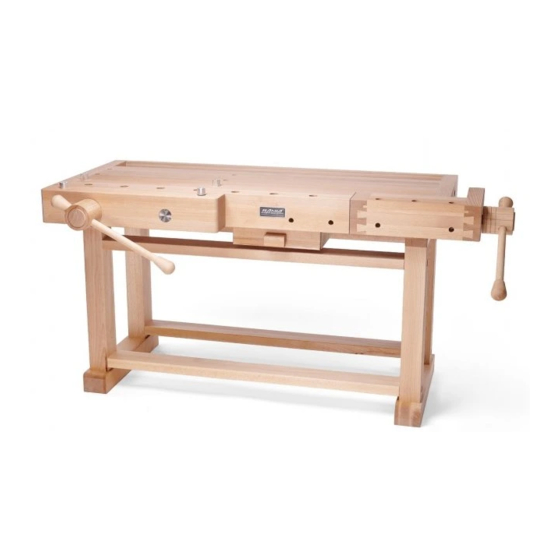

Workbench is made of high quality beech wood guaranteeing maximum resistance and long service life.
NOTICE:
The bench must not be left in damp or humid conditions which will cause movement in the wood. Recommended humidity
level max. 60%.
If you bought workbench without surface treatment, we recommend you to finish the bench by colourless varnish or oil
including the bottom of workbench. Varnish (oil) prevents absorption of surrounding moisture. Don´t forget to repeat
surface treatment each year including holes for bench dogs.
To increase the stability of your workbench we recommend you to bolt the bench to the floor.
Each 6 months tighten all screws and bolts.
Parts Packing 1 Packing 2 Date
