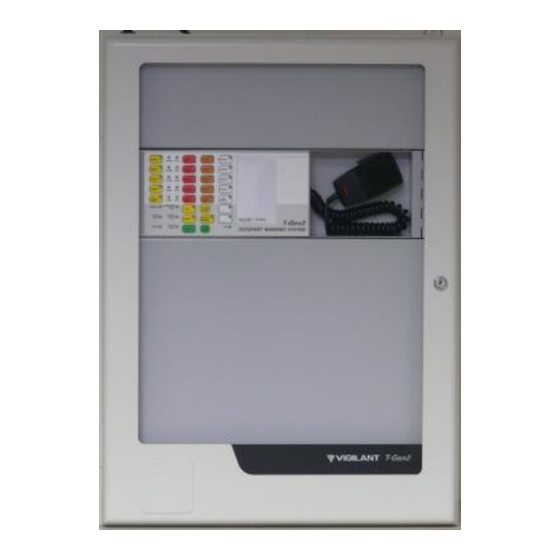

Vigilant T-GEN2 Manual

Grade 2 emergency warning system (ews)
Hide thumbs Also See for T-GEN2:
Table of Contents

Advertisement

Quick Links

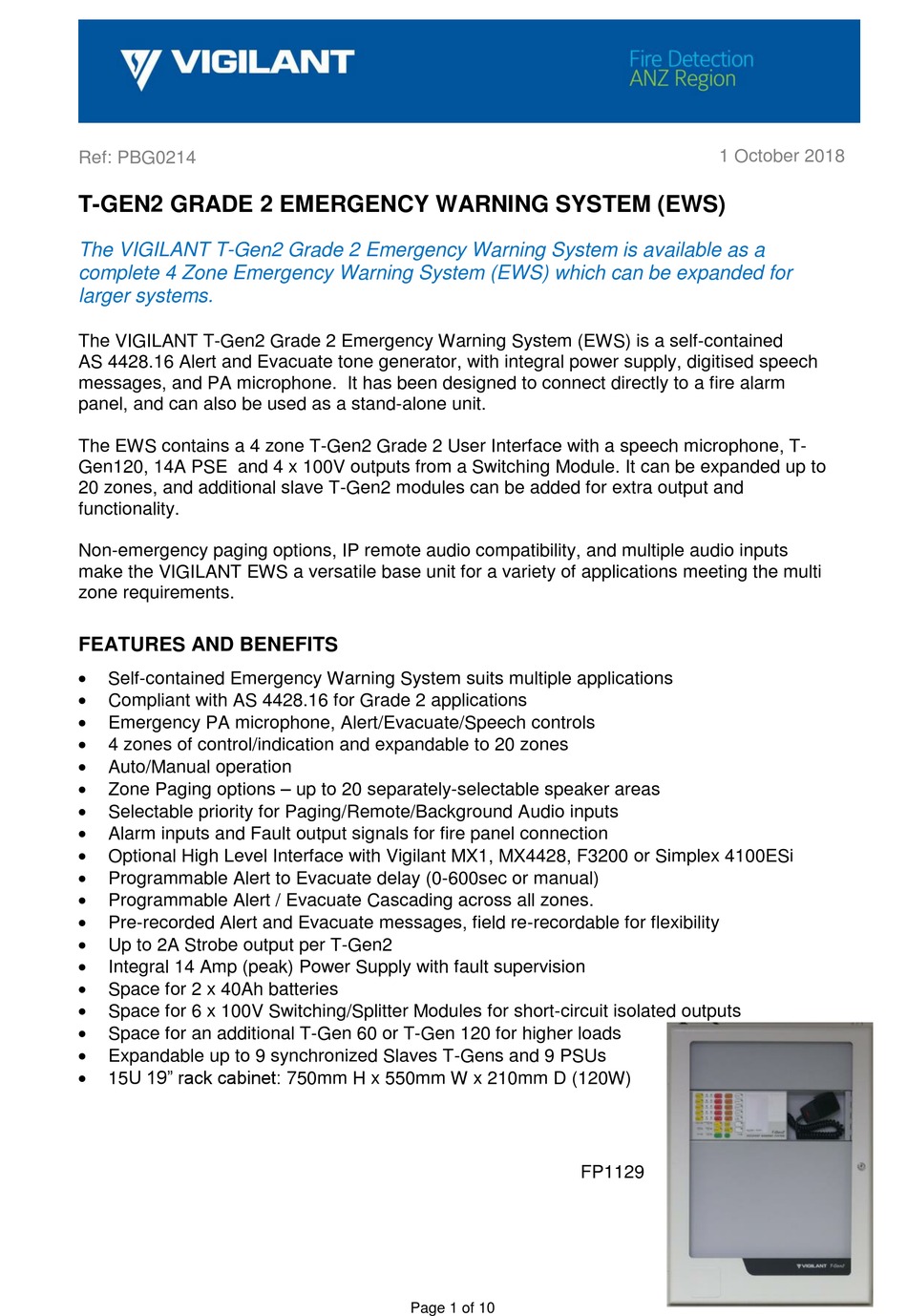

Ref: PBG0214
T-GEN2 GRADE 2 EMERGENCY WARNING SYSTEM (EWS)
The VIGILANT T-Gen2 Grade 2 Emergency Warning System is available as a
complete 4 Zone Emergency Warning System (EWS) which can be expanded for
larger systems.
The VIGILANT T-Gen2 Grade 2 Emergency Warning System (EWS) is a self-contained
AS 4428.16 Alert and Evacuate tone generator, with integral power supply, digitised speech
messages, and PA microphone. It has been designed to connect directly to a fire alarm
panel, and can also be used as a stand-alone unit.
The EWS contains a 4 zone T-Gen2 Grade 2 User Interface with a speech microphone, T-
Gen120, 14A PSE and 4 x 100V outputs from a Switching Module. It can be expanded up to
20 zones, and additional slave T-Gen2 modules can be added for extra output and
functionality.
Non-emergency paging options, IP remote audio compatibility, and multiple audio inputs
make the VIGILANT EWS a versatile base unit for a variety of applications meeting the multi
zone requirements.
FEATURES AND BENEFITS
Self-contained Emergency Warning System suits multiple applications
Compliant with AS 4428.16 for Grade 2 applications
Emergency PA microphone, Alert/Evacuate/Speech controls
4 zones of control/indication and expandable to 20 zones
Auto/Manual operation
Zone Paging options – up to 20 separately-selectable speaker areas
Selectable priority for Paging/Remote/Background Audio inputs
Alarm inputs and Fault output signals for fire panel connection
Optional High Level Interface with Vigilant MX1, MX4428, F3200 or Simplex 4100ESi
Programmable Alert to Evacuate delay (0-600sec or manual)
Programmable Alert / Evacuate Cascading across all zones.
Pre-recorded Alert and Evacuate messages, field re-recordable for flexibility
Up to 2A Strobe output per T-Gen2
Integral 14 Amp (peak) Power Supply with fault supervision
Space for 2 x 40Ah batteries
Space for 6 x 100V Switching/Splitter Modules for short-circuit isolated outputs
Space for an additional T-Gen 60 or T-Gen 120 for higher loads
Expandable up to 9 synchronized Slaves T-Gens and 9 PSUs
15U 19" rack cabinet: 750mm H x 550mm W x 210mm D (120W)
FP1129
Page 1 of 10
1 October 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-GEN2 and is the answer not in the manual?

Questions and answers

Related Manuals for Vigilant T-GEN2

Summary of Contents for Vigilant T-GEN2

  • Page 1 The EWS contains a 4 zone T-Gen2 Grade 2 User Interface with a speech microphone, T- Gen120, 14A PSE and 4 x 100V outputs from a Switching Module. It can be expanded up to 20 zones, and additional slave T-Gen2 modules can be added for extra output and functionality.

  • Page 2: General Description

    T-Gen 120. Further expansion can be achieved by using the FP1130 15U expansion cabinet, allowing additional T-Gen2 (60 or 120W) and switching/splitter modules to be housed adjacent to the EWS unit. The T-Gen2 EWS can be expanded up to a total of ...
  • Page 3 Ref: PBG0214 19 September 2018 The gearplate of the FP1129 15U EWS and the FP1130 Expansion Cabinet supports a number of combinations of T-Gen2 parts, including:  Up to 3 x T-Gen 60 or T-Gen 120 units  Up to 2 x 14A power supplies ...
  • Page 4 1) Direct connection MX1 to T-Gen2 using a 10-way ribbon cable: This option can be used only when the T-Gen2 and MX1 are mounted in the same cabinet or in a dual cabinet installation, both adjacent to each other. Connection to external RZDU devices is not possible and Port 0 on the MX1 must not be used for any other function.

  • Page 5: Audio Inputs

    Ref: PBG0214 19 September 2018 The HLI module can also be used with Simplex 4100ESi panels. The T-Gen2 connects onto the internal 4100Comms bus and appears to the 4100ESi as a slave device having a number of programmable input and output devices.
  • Page 6 (o/c & s/c) and the 100V Switching Module will isolate a shorted output allowing the other outputs to operate. Each output can handle up to 100W maximum load, but the total load per module cannot exceed the T-Gen2 rating (or maximum 120W per Switching Module in total).
  • Page 7 Grade 2 User Interface, an alarm input, Audio 1 as Always ON and the 4 x 100V output operate as 4 zones and areas. Any other configuration, e.g., changing the basic operation, adding Slave T-Gen2 or other modules, or assign speech, input functions or change the User Interface operation will require a configuration to be prepared and downloaded using the Windows SmartConfig application.

  • Page 8: Further Information

    FP1129 or FP1130 as a spare part or Slave T-Gen2. FP1116, FP, T-Gen 120, 24V, C/W INSTALL LIT & MTG T-Gen 120 model of T-Gen2 able to drive a speaker load up to 120W. Able to fit to FP1129/ FP1130 as a spare part or Slave T-Gen2.
  • Page 9 High Level Link Interface module allows an adjacent Vigilant MX1, MX4428 or F3200 fire panel using RZDU or Simplex 4100ESi fire panel using internal 4100Comms to be connected to the master T-Gen2 to transmit alarm information (up to 32 fire zones to trigger EWS) and monitor the EWS fault status.

  • Page 10: Specifications

    OLED, 4 button menu structured For operation and configuration QBus compliant Master / Slave operation, User Interface, 14A PSE and 100V Switching Module Slave T-Gen2 RJ45 Cable-In Cabinet On-board Storage 4Mbyte (configuration and audio files) Micro-SD Card - max size...
