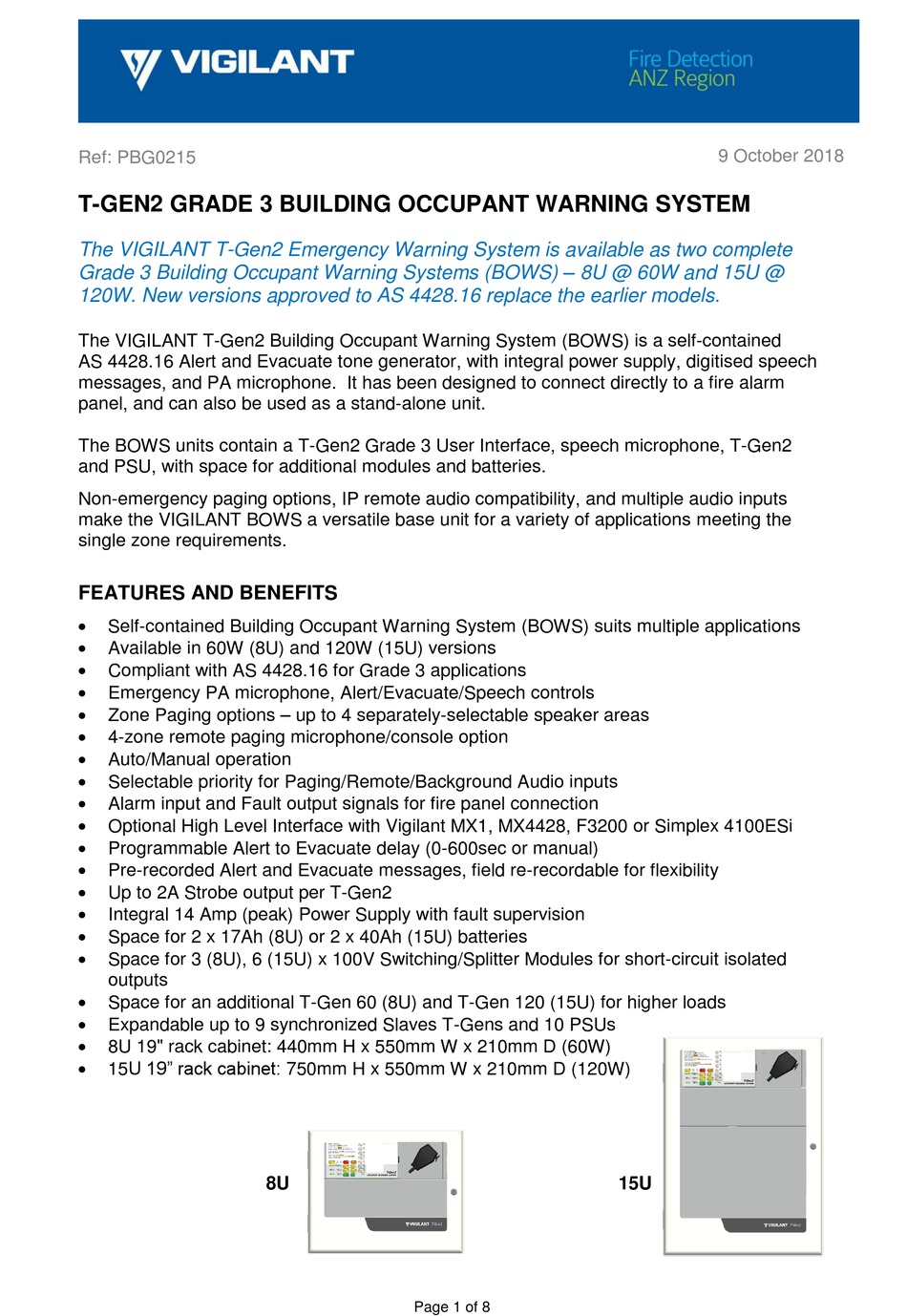

Ref: PBG0215

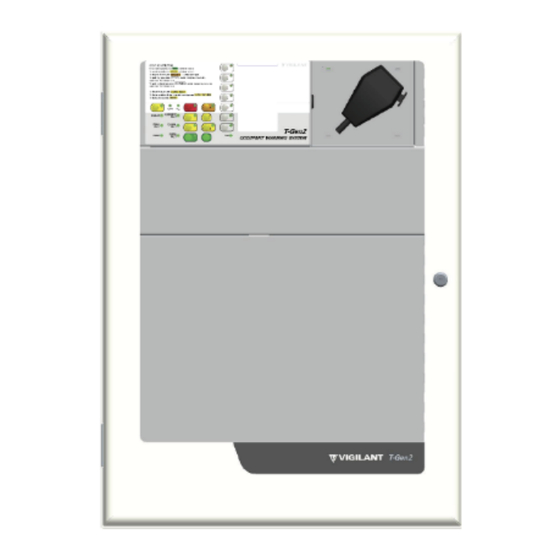

T-GEN2 GRADE 3 BUILDING OCCUPANT WARNING SYSTEM
The VIGILANT T-Gen2 Emergency Warning System is available as two complete
Grade 3 Building Occupant Warning Systems (BOWS) – 8U @ 60W and 15U @
120W. New versions approved to AS 4428.16 replace the earlier models.
The VIGILANT T-Gen2 Building Occupant Warning System (BOWS) is a self-contained
AS 4428.16 Alert and Evacuate tone generator, with integral power supply, digitised speech
messages, and PA microphone. It has been designed to connect directly to a fire alarm
panel, and can also be used as a stand-alone unit.
The BOWS units contain a T-Gen2 Grade 3 User Interface, speech microphone, T-Gen2
and PSU, with space for additional modules and batteries.
Non-emergency paging options, IP remote audio compatibility, and multiple audio inputs
make the VIGILANT BOWS a versatile base unit for a variety of applications meeting the
single zone requirements.

FEATURES AND BENEFITS

Self-contained Building Occupant Warning System (BOWS) suits multiple applications
Available in 60W (8U) and 120W (15U) versions
Compliant with AS 4428.16 for Grade 3 applications
Emergency PA microphone, Alert/Evacuate/Speech controls
Zone Paging options – up to 4 separately-selectable speaker areas
4-zone remote paging microphone/console option
Auto/Manual operation
Selectable priority for Paging/Remote/Background Audio inputs
Alarm input and Fault output signals for fire panel connection
Optional High Level Interface with Vigilant MX1, MX4428, F3200 or Simplex 4100ESi
Programmable Alert to Evacuate delay (0-600sec or manual)
Pre-recorded Alert and Evacuate messages, field re-recordable for flexibility
Up to 2A Strobe output per T-Gen2
Integral 14 Amp (peak) Power Supply with fault supervision
Space for 2 x 17Ah (8U) or 2 x 40Ah (15U) batteries
Space for 3 (8U), 6 (15U) x 100V Switching/Splitter Modules for short-circuit isolated
outputs
Space for an additional T-Gen 60 (8U) and T-Gen 120 (15U) for higher loads
Expandable up to 9 synchronized Slaves T-Gens and 10 PSUs
8U 19" rack cabinet: 440mm H x 550mm W x 210mm D (60W)
15U 19" rack cabinet: 750mm H x 550mm W x 210mm D (120W)
8U
Page 1 of 8
9 October 2018
15U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-Gen2 and is the answer not in the manual?

Questions and answers

Related Manuals for Vigilant T-Gen2

Summary of Contents for Vigilant T-Gen2

  • Page 1 PSU, with space for additional modules and batteries. Non-emergency paging options, IP remote audio compatibility, and multiple audio inputs make the VIGILANT BOWS a versatile base unit for a variety of applications meeting the single zone requirements. FEATURES AND BENEFITS ...
  • Page 2 Further expansion can be achieved using the FP1130 15U expansion cabinet, allowing additional T-Gen2 (60 or 120W), PSUs and Switching / Splitter Modules to be housed adjacent to the BOWS unit. Up to 9 slave T-Gen2 and 10 PSUs in total can be connected to the Master T-Gen2.
  • Page 3 1) Direct connection MX1 to T-Gen2 using a 10-way ribbon cable: This option can be used only when the T-Gen2 and MX1 are mounted in the same cabinet or in a dual cabinet installation, both adjacent to each other. Connections to external RZDU devices is not possible and Port 0 on the MX1 must not be used for any other function.
  • Page 4 Ref: PBG0215 9 October 2018 The HLI module can also be used with Simplex 4100ESi panels. The T-Gen2 connects onto the internal 4100Comms bus and appears to the 4100ESi as a slave device with a number of programmable input and output devices.
  • Page 5 Up to two external 4-zone paging consoles (SU0360) can be combined with an SU0361 Audio Switcher to create remote paging units for the T-Gen2 BOWS. The SU0361 Audio Switcher is mounted in the BOWS and wired to 4 GP Inputs to indicate when each area is active.
  • Page 6 User Interface operation will require a configuration to be prepared and downloaded using the Windows SmartConfig application. FURTHER INFORMATION Details on the various T-Gen2 modules can be found in the latest issue of product bulletin PBG0203. SALES DRAWINGS...
  • Page 7 FP1144 as a spare part or Slave T-Gen2. FP1116, FP, T-Gen 120, 24V, C/W INSTALL LIT & MTG T-Gen 120 model of T-Gen2 able to drive a speaker load up to 120W. Able to fit to FP1134 as a spare part or Slave T-Gen2.

  • Page 8: Specifications

    Used with the A 4488 4 zone paging console to provide relay outputs. Able to be mounted inside the BOWS cabinet. Literature Items (available electronically) LT0667 T-Gen2 INSTALLATION GUIDE LT0673 T-Gen2 Grade 3 USER INTERFACE OPERATOR MANUAL LT0693 T-Gen2 Grade 3 BOWS INSTALLATION INSTRUCTIONS SPECIFICATIONS FP1144 (8U) FP1134 (15U) Weight 17.5kg...
