clare ClareOne CLR-C1-PNL1 Quick Start Manual

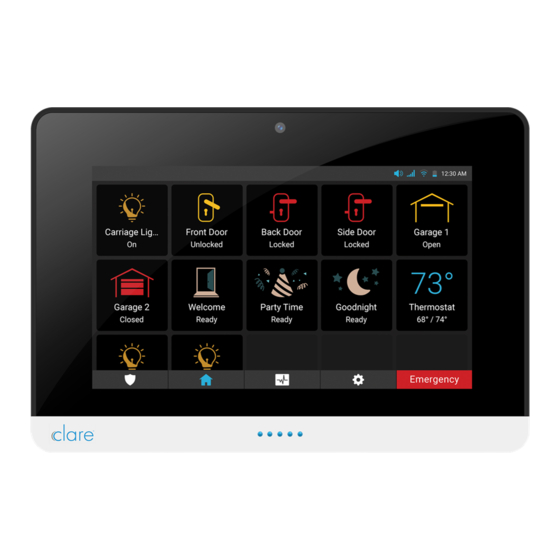

ClareOne Wireless Security and Smart Home Panel Quick Start Guide
Model CLR-C1-PNL1

Panel mounting

1

Desk

Remove the backplate,
exposing the battery.

Desk Mounting Notes

• The panel must be
mounted at least 1ft
from a table edge, a
heat or water source,
and any sources of
interference.

Wall

Place the
mounting
bracket
against the
wall, and then
use the in-
cluded screws
to attach the
mount to the
wall.

Power

2
Connect power
supply with brack-
et to the wall.
Do not connect to a
receptacle controlled
by a switch.
Note: For additionanl
power options, refer to
the full manual
DOC 1871.
Enjoy!
5
Rest secure with ClareOne
and enjoy the benefits of a
safe, smart, and happy home
with Clare Contols.
Before starting installation see standards on residential installation, refer to Installation of Residential Fire Warning Systems,
CAN/ULC-S540. The system must be installed in accordance with Chapter 29 of the National Fire Alarm and Signaling Code,
ANSI/NFPA 72.
Attach the power supply. Verify
that the battery is plugged in.
• Peel the clear film from
the anti-skid rubber on the
bottom of the panel mount.
If this film is not removed,
the panel may slide on a
tabletop.
Remove the backplate,
exposing the battery.

Wizard

3
Follow the displayed onscreen wizard.
Tech Support-
Integrator/Dealer Support:
941.404.1072
claresupport@clarecontrols.com
Homeowners should contact their dealer for assistance.
Press the backplate gently
back in place.
Press the panel onto the mounting
Attach the power
bracket, and then slide the panel
supply to the panel.
downward.
Clare Controls, LLC.
General: 941.328.3991
Fax: 941.870.9646
www.clarecontrols.com
Connect the panel stand,
and then slide to the desired
position.

Optional - Install Assist

4
Use the Clare Controls Install Assist
app to add smart home devices.
To view the full
manual DOC 1871,
scan the QR code or
access the link below.
http://bit.ly/35RJzMd
