TECH BULLETIN
T E C H N I C A L S U P P O R T
ClareOne: Remote Power
Last modified: 10/22/20

Introduction

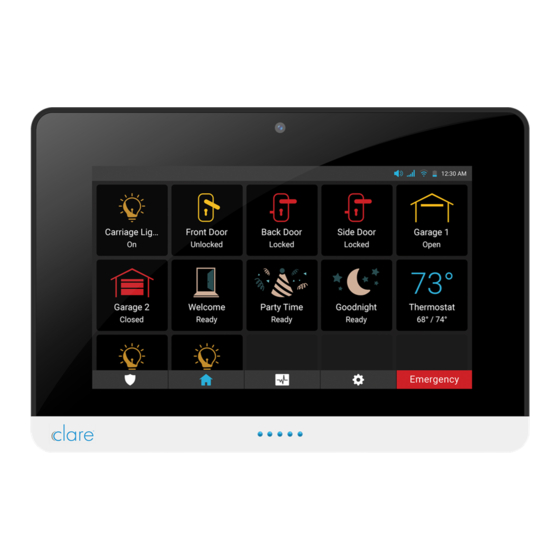

The ClareOne Wireless Security and Smart Home Panel has 2 power options:
localized (using provided power supply with micro USB within 6 ft of the
installation location) and remote (using CAT5/6 or 24AWG or thicker shielded
security wire to extend the reach up to 250 ft from the installation location).
This product bulletin details the remote power option.
Remote power
Installation
For installation locations that are further than 6 ft from the nearest non
switch-controlled outlet, the power supply cable can be removed and replaced
with a CAT5/6 cable or a 24AWG or thicker shielded security wire. This allows
the power supply to be located up to 250 ft away from the panel. Distance is
dependent on type of wire used and number of conductors. See Table 1:
Notes
• When using CAT5/6 cable the single wires must have a minimum gauge of
24AWG. In addition, a twisted pair of the wires must be used to connect to
each of the positive and negative terminals in order to reach 100 ft.
• At no time should the power supply be plugged into an outlet controlled by a
switch.
• Do not use other power supplies, only the provided power supply is suited for
the ClareOne panel. This power supply may be used with different wiring as
listed in this document.
DOC ID - 1937 • Rev 02
© 2 2 O C T 2 0 C l a r e C o n t r o l s , L L C .
1 / 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClareOne CLR-C1-PNL1 and is the answer not in the manual?

Questions and answers

Summary of Contents for clare ClareOne CLR-C1-PNL1

  • Page 1 TECH BULLETIN T E C H N I C A L S U P P O R T © 2 2 O C T 2 0 C l a r e C o n t r o l s , L L C . ClareOne: Remote Power Last modified: 10/22/20 Introduction...
  • Page 2 To power a panel more than 6 ft away from an outlet: 1. Remove the panel’s back plate by pressing down on the 2 tabs and pulling the plate outward, exposing the rear interior. 2. Carefully insert the positive end of the wire into the positive terminal of the DC power terminal.
  • Page 3 250 ft Note: For proper operation, the voltage measured on the ClareOne DC input terminals when connected to power should be greater than 5vDC. Contact information Clare Controls, LLC. 7519 Pennsylvania Ave, Suite 104 Sarasota, FL 34243 General: 941.328.3991 Fax: 941.870.9646 www.clarecontrols.com...
