clare CS-SRN-10 Manual

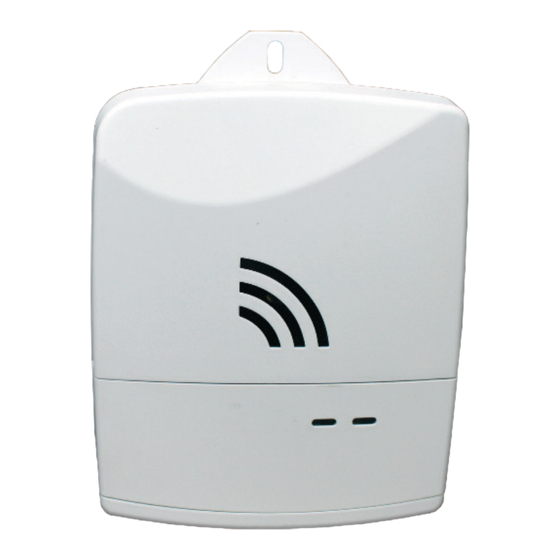

The CS-SRN-10
volume warning sounds and low volume notification sounds.
Features
• Siren cadence synchronized to panel
• 85 dBA minimum at 1m
• LEDs follow arming status and trouble conditions from panel
Sounds
a high volume warning for burglary, smoke and carbon
monoxide alarm conditions. Low volume notification sounds
are made for auxiliary alarm, status, and trouble conditions.
The siren will tamper when the cover is opened. The siren will
follow the panel's alarm pattern and will chime when the panel
chimes. Status beeps and volume are adjustable through the
Install Assist App.
• To control chime and status beeps, adjust DIP switch 2.
• Up position: status beeps and sensor chime are disabled
• Down position: status beeps and sensor chime are enabled
Enroll
by placing the panel into wireless enrollment mode
and then pulling the battery tab, or by inserting the battery.
Alternatively, move DIP switch 1 to the ON position. After
enrolling the siren, take the panel out of wireless enrollment
mode. Close the battery cover. The blue LED should be solid
and the panel will beep when the siren is enrolled successfully.
• Once the siren is properly enrolled, test functionality in a
desired location.
• The panel supports up to eight CS-SRN-10 sirens at one time.
To replace the batteries,
the siren to expose the battery compartment.
Optional screw mounting
to a surface with the outlet plate mounting screw.
Use the panel installation guide to verify proper system setup.
CS-SRN-10 Siren with
Wireless Battery Backup
is an auditory warning device that produces high
pull the battery cover off the front of
can be done by securing the siren
