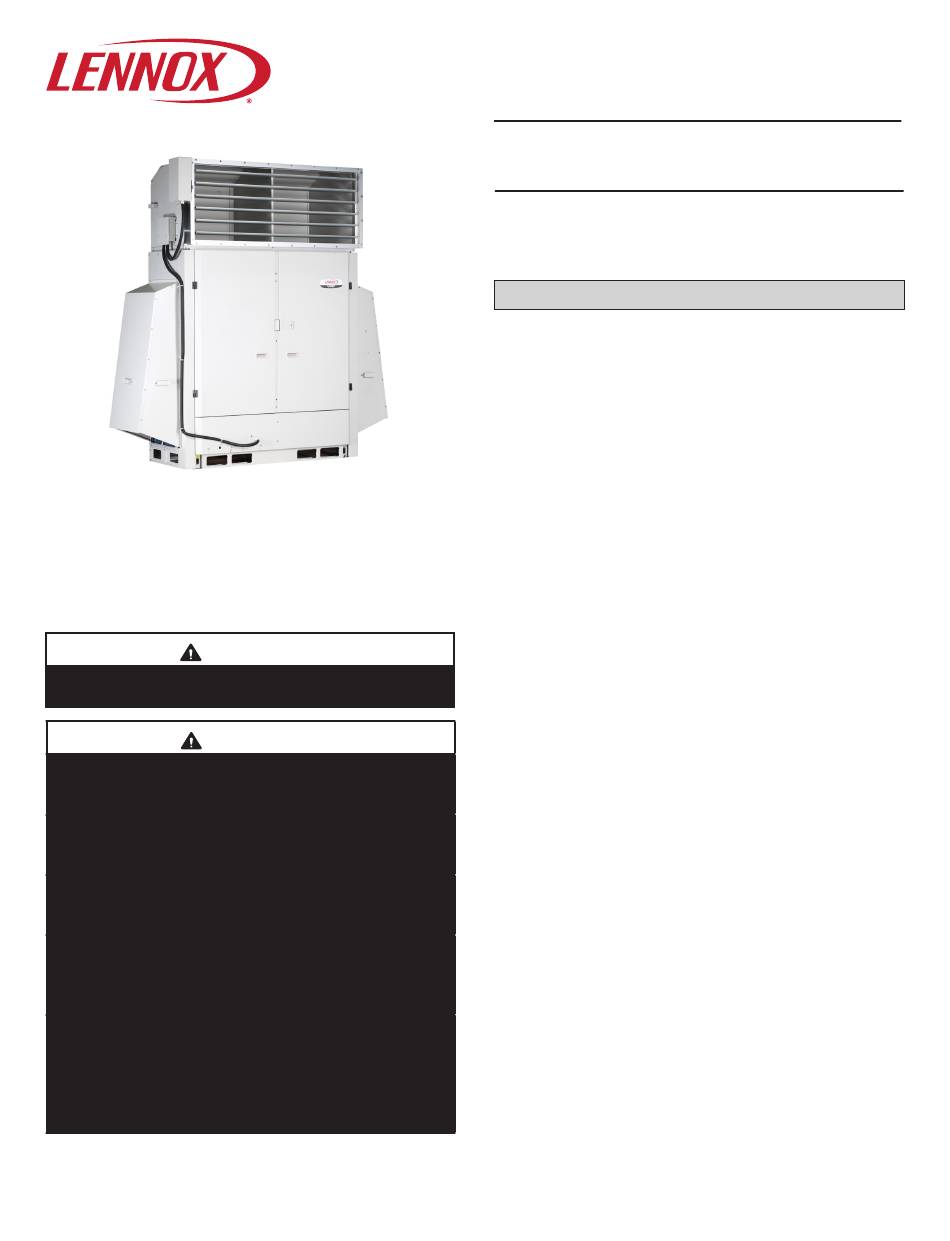

Lennox V8LAC01 Installation Instructions Manual
Lennox V8LAC01 Installation Instructions Manual

Lennox V8LAC01 Installation Instructions Manual

Outdoor unit low ambient cooling kit, vrf systems

Advertisement

Quick Links

©2018 Lennox Industries Inc. Dallas, Texas, USA
These instructions are intended as a general guide and do
not supersede local codes in any way. Consult authorities
having jurisdiction before installation.
THIS MANUAL MUST BE LEFT WITH THE
OWNER FOR FUTURE REFERENCE
WARNING
Before beginning any installation or service work,
disconnect all power from the outdoor unit.
WARNING
Improper installation, adjustment, alteration, ser vice
or maintenance can cause property damage, personal
injury or loss of life.
Installation and service must be performed by a li censed
professional HVAC installer, service agency or the gas
supplier.
Failure to follow safety warnings and these instruc tions
exactly could result in property damage, dan gerous
operation, serious injury, or death.
Any additions, changes, or conversions required in order
for the appliance to satisfactorily meet the ap plication
needs must be made by a licensed profes sional HVAC
installer (or equivalent) using factory-specified parts.
Do not use this system if any part has been under water.
A flood-damaged appliance is extremely dan gerous.
Immediately call a licensed professional HVAC service
technician (or equivalent) to inspect the system and to
replace all controls and electrical parts that have been
wet, or to replace the system, if deemed necessary.
VRF
1
INSTALLATION
INSTRUCTIONS
Outdoor Unit Low Ambient
Cooling Kit
VRF SYSTEMS
507904-01
02/2020
Shipping and Packing List
Check the components for shipping damage. If you find
any damage, immediately contact the last carrier.
Package 1 of 1 contains one of the following:
LAKA
1 - Low Ambient Cooling Hood Assembly (LAKA-1)
1 - Rear Wind Deflector (LAKA-2)
2 - Side Wind Deflectors (LAKA-3)
1 - Wiring harness and conduit assembly
5 - Wiring conduit mounting brackets
6 - Plastic cable ties
26 - 10-16x1/2" self-tapping screws
1 - Installation and operation manual
LAKB
1 - Low Ambient Cooling Hood Assembly (LAKB-1)
1 - Rear Wind Deflector and rear corner panels (LAKB-2)
2 - Side Wind Deflectors (LAKB-3)
1 - Wiring harness and conduit assembly
5 - Wiring conduit mounting brackets
6 - Plastic cable ties
48- 10-16x1/2" self-tapping screws
1 - Installation and operation manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the V8LAC01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lennox V8LAC01

  • Page 1 INSTALLATION INSTRUCTIONS ©2018 Lennox Industries Inc. Dallas, Texas, USA Outdoor Unit Low Ambient Cooling Kit VRF SYSTEMS 507904-01 02/2020 Shipping and Packing List Check the components for shipping damage. If you find any damage, immediately contact the last carrier. Package 1 of 1 contains one of the following:...
  • Page 2: Model Number Identification

    Fines and/or incarceration may be levied for non-compliance. To ensure proper system performance and reliability, Lennox does not recommend operation of VRF systems during any phase of construction. Construction debris, low temperatures, harmful vapors, and operation of the unit with misplaced filters can damage the units.
  • Page 3: Component Identification

    Component Identification V8LAC01 V8LAC02 Low Ambient Cooling Hood Assembly with Damper & Low Ambient Cooling Hood Assembly with Damper & Control Box (1) Control Box (1) LAKA-1 LAKB-1 Rear Wind Deflector (1) Rear Wind Deflector (1) LAKA-2 LAKB-2 Side Side...
  • Page 4 LAKA (6-10 Ton Outdoor Unit) Dimensions - inches (mm) 31-1/8 (791) (1397) 29-1/8 LAKA-1 (740) 27-3/4 (1346) (705) 44-3/8 LAKA-2 LAKA-3 (1127) (584) (1295) (1295) 45-5/8 24-3/8 14-3/4 14-3/8 (1159) (619) (375) (371)
  • Page 5 LAKB (12-16 Ton Outdoor Unit) Dimensions - inches (mm) 34-1/4 72-1/4 (870) (1835) 30-1/2 (775) 68-1/8 31-3/4 (1730) (806) 23-1/4 (590) 56-1/2 59-3/4 (1435) 56-1/2 (1518) (1435) 61-1/8 17-1/8 15-3/8 24-5/8 (1553) (435) (391) (625)
  • Page 6 Installation Clearances - inches (mm) SINGLE ROW Air Flow 39 (991) Rear Front 31 (800) Air Flow Front Front >12 in. (305 mm) 39 (991) < 156 in. (3962 mm) TWO ROWS 39 (991) Air Flow Air Flow Front Front 39 (991) 31 (800) Air Flow...
  • Page 7 Placement WARNING Prevailing Winter Winds Use the provided and specified components when installing equipment. Failure to do so may result in unit falling, water leaking or electrical shocks, Wind Barrier caus ing personal injury or equipment or property dam age. Inlet Air Check stability of unit support.
  • Page 8 NOTEs - Discharge air duct will remain free of obstructions at a minimum distance of 18 ft. (5.5 m). Discharge air shall not be directed toward operable windows or building fresh air intakes. Figure 2. Direct Hood Discharge Out and Over Enclosure Walls Minimum Minimum Recommended...
  • Page 9 • For all roof top and other high wind installa- tions, weather resistant safety straps must securely fastened between discharge air hood and the equipment support system. Straps should installed where ser- vice access impeded restricted. Straps should be a minimum 3/16” vinyl coated cable. See Figures 6 and 7.
  • Page 10: Installation

    Installation 3. Using the provided self-tapping screws, attach hood CAUTION assembly and wind deflectors to the outdoor unit. Be sure to level the wind deflectors before securing. AVOID TOUCHING OR DAMAGING COIL SURFACE! 4. Install the side screws part way first and then hang the 1.
  • Page 11 Damper Hood Motor Assembly LAKA/B-3 Right Side LAKA/B-3 Wind Left Side Deflector Wind Deflector LAKB-2 LAKB-2 Corner Back Guards Wind Deflector Labels are oriented from the Front View. See Figure 11 for Front View. LAKB-2 consists of one back wind deflector and two corner guards as shown in this illustration. Figure 9.
  • Page 12 Self-tapping Self-tapping screws allowed in screws allowed in this section of the this section of the outdoor unit only. outdoor unit only. Use caution Use caution when screwing in when screwing in the self-tapping the self-tapping screw. DO NOT screw. DO NOT damage coil.
  • Page 13 Electrical Installation for Kit WARNING Before beginning any installation or service work, disconnect all power from the outdoor unit. • Remove the Φ1/2 in. (13 mm) knockout on the wiring entry panel on the bottom front of the unit as shown in Figure 12.
  • Page 14 Control Box Mounted on Hood Damper Actuator Factory switch Low Ambient Baffle Kit Box positions Low Ambient Baffle Kit Board AC/DC 24V 50/60Hz Y DC (0) 2...10 V 0-10V 0-10V U DC 2...10 V Input Output AC24V GND Orange Black White Outdoor Unit Main Control Box Main borad...
  • Page 15 Outdoor unit Outdoor unit Outdoor unit (sub1 unit) (main unit) (sub2 unit) H1 H2 Outdoor Unit Communication Terminal Block (H1 H2 (H1 H2 (H1 H2 (PQ) (PQ) (PQ) (PQ) MS Box Communication Terminal Block HA HB 12V COM P (PQ) (PQ) Indoor Unit Communication Terminal Block Ground drain wire or...
  • Page 16: Technical Support

    Damper Position Setting IMPORTANT Set the rotation switch at 0 (actuator turns clockwise CW with increasing control signal 2V to 10V to close damper Avoid contact between the wires and any refrigerant and turns counter-clockwise CCW with decreasing con- piping inside the cabinet. If necessary, use plastic zip trol signal 10V to 2V to open damper.

This manual is also suitable for:
