Summary of Contents for Lennox ARIA EC Series

  • Page 1 Application guide ARIA EC Providing indoor climate comfort ARIA EC-AGU-0909-E...
  • Page 3: Table Of Contents

    Contents Introduction ............................2 Main components Fan motor............................3 Water coil ............................3 Condensate drain tray........................3 Filter and access ..........................4 Electric heater ..........................4 Fresh air supply..........................4 Characteristics ..........................5 Codification............................6 Airflow data............................7 Acoustic data............................ 9 Cooling performance data Size 10 –...
  • Page 4: Introduction

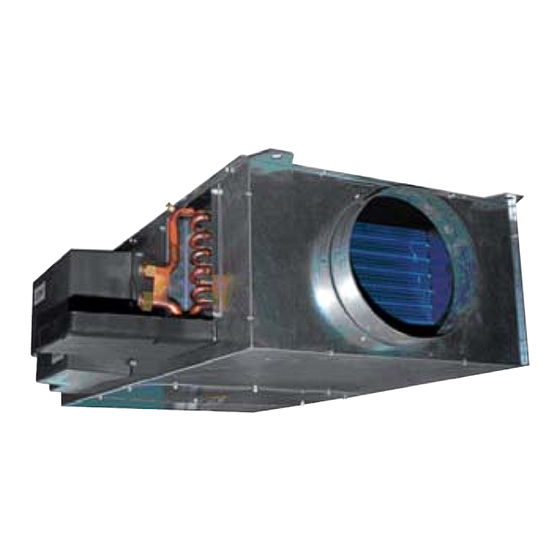

    Introduction The ARIA EC compact air conditioning module is available in two sizes for conditioning rooms from 12 to 50 m². ARIA EC has been designed to match with very last rules in energy savings and comfort. It is equipped with new generation electronic commutation (EC) motors whose electric consumption is lower than motors used in traditional fan coils.
  • Page 5: Main Components

    Main components Fan motor The ARIA EC unit is equipped with a centrifugal forward curved single scroll fan with double inlet. The fan (s) will respectively produce a nominal airflow at 40 Pa static pressure from 400 m /h (size 10) to 900 m /h (size 40).
  • Page 6: Filter And Access

    Electric heater The electric heater is of the bare wire resistive type installed in the fan discharge air stream, assuring optimum coverage and maximum heat exchange. Available as standard with a capacity of 500, 800, 1200, 1500 or 3000 Watts, the 230 V/1/50 Hz power supply is provided directly from the controller or via a relay and a fuse.
  • Page 7: Characteristics

    Characteristics Physiques et électriques ARIA Size 10 Size 20 Size 30 Size 40 Nominal air flow L/sec Available static pressure Total cooling capacity (1) 5,51 Sensible cooling capacity (1) 3,32 4,12 Heating capacity (2) 4,84 5,95 Electrical supply Single phase – 50 Hz – 230V +/- 10% Forward action Forward action Forward action...
  • Page 8: Codification

    Codification CODIFICATION Speed COLOUR BLUE WHITE BROWN BLACK NOTA : spigot configuration is defined when viewing ARI EC unit looking in the direction of the air flow inside the unit Example : ARIA EC 20 ARIA Size 20 – Electronical 4 row heating coil 1 row cooling coil SX hydraulic connection (left side)
  • Page 9: Airflow Data

    Airflow data Size 10 ARIA EC – Caractéristiques Aérauliques ARIA EC T10 8V 40Pa Airflow (m Débit d'air (m3/h) Size 20 ARIA EC – Caractéristiques Aérauliques ARIA EC T20 8V 40Pa Débit d'air (m3/h) Airflow (m ARIA EC-AGU-0909-E Page 7...
  • Page 10 Size 30 ARIA EC – Caractéristiques Aérauliques ARIA EC T30 8V 40Pa 1000 Airflow (m Débit d'air (m3/h) Size 40 ARIA EC – Caractéristiques Aérauliques ARIA 40 8V 40Pa 1000 1100 Débit d'air (m3/h) Airflow (m ARIA EC-AGU-0909-E Page 8...
  • Page 11: Acoustic Data

    Acoustic data Sound power to an available static pressure of 40 Pa Size 10 & 20 ARIA EC – Spectrum per octave band (Hz) Control Airflow Lw Total voltage 1000 2000 4000 8000 global dBA (dBA) Volts Supply Return Radiated Supply Return Radiated...
  • Page 12 Size 40 ARIA EC – Spectrum per octave band (Hz) Control Airflow Total voltage 1000 2000 4000 8000 Global (dBA) (m3/h) (dBA) Volts Supply Return Radiated Supply Return Radiated Supply Return Radiated Supply Return Radiated Supply Return Radiated ARIA EC-AGU-0909-E Page 10...
  • Page 13: Cooling Performance Data

    Cooling performance data Terminology: Pt : Total cooling capacity (W) Ps : Sensible cooling capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 10 2 row coil (application 2P/2W, 2P-C/O or 4P) Airflow L/sec 28 (100)
  • Page 14: Size 20 - 4 Row Coil

    Cooling performance data Terminology: Pt : Total cooling capacity (W) Ps : Sensible cooling capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 20 4 row coil (application 2P/2W or 2P-C/O) Airflow L/sec 28 (100)
  • Page 15: Size 30 - 4 Row Coil

    Cooling performance data Terminology: Pt : Total cooling capacity (W) Ps : Sensible cooling capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 30 4 row coil (application 2P/2W, 2P-C/O or 4P) Airflow from 84 to 222 L/sec (300 to 800 m Airflow L/sec...
  • Page 16 Cooling performance data Terminology: Pt : Total cooling capacity (W) Ps : Sensible cooling capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 30 4 row coil (application 2P/2W, 2P-C/O or 4P) Airflow from 250 to 390 L/sec (900 to 1400 m Airflow L/sec 305 (1100)
  • Page 17: Size 40 - 4 Row Coil

    Cooling performance data Terminology: Pt : Total cooling capacity (W) Ps : Sensible cooling capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 40 4 row coil (application 2P/2W, 2P-C/O or 4P) Airflow from 84 to 222 L/sec (300 to 800 m Airflow 84 (300)
  • Page 18 Cooling performance data Terminology: Pt : Total cooling capacity (W) Ps : Sensible cooling capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 40 4 row coil (application 2P/2W, 2P-C/O or 4P) Airflow from 250 to 390 L/sec (900 to 1400 m Airflow Entering/...
  • Page 19: Heating Performance Data

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 10 1 row coil (application 4P) Airflow 28 (100) 56 (200) 84 (300) 111 (400)
  • Page 20: Size 10 - 2 Row Coil

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 10 2 row coil (application 2P-C/O) Airflow 28 (100) 56 (200) 84 (300) 111 (400)
  • Page 21: Size 20 - 1 Row Coil

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 20 1 row coil (application 4P) Airflow L/sec 28 (100) 56 (200) 84 (300) 111 (400)
  • Page 22: Size 20 - 4 Row Coil

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 20 4 row coil (application 2P-C/O) Airflow Leaving. L/sec 28 (100) 56 (200) 84 (300)
  • Page 23: Size 30 - 1 Row Coil

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 30 1 row coil (application 4P) Airflow from 84 to 222 L/sec (300 to 800 m Airflow L/sec 84 (300) 111 (400)
  • Page 24 Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 30 1 row coil (application 4P) Airflow from 250 to 390 L/sec (900 to 1400 m Airflow L/sec 250 (900) 278 (1000)
  • Page 25: Size 30 - 4 Row Coil

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 30 4 row coil (application 2P-C/O) Airflow from 84 to 222 L/sec (300 to 800 m Airflow L/sec 84 (300) 111 (400)
  • Page 26 Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 30 4 row coil (application 2P-C/O) Airflow from 250 to 390 L/sec (900 to 1400 m Airflow L/sec 250 (900) 278 (1000)
  • Page 27: Size 40 - 1 Row Coil

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 40 1 row coil (application 4P) Airflow from 84 to 222 L/sec (300 to 800 m Airflow L/sec 84 (300) 111 (400)
  • Page 28 Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 40 1 row coil (application 4P) Airflow from 250 to 390 L/sec (900 to 1400 m Airflow L/sec 305 (1100) 333 (1200)
  • Page 29: Size 40 - 4 Row Coil

    Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 40 4 row coil (application 2P-C/O) Airflow from 84 to 278 L/sec (300 to 1000 m Airflow L/sec 84 (300) 111 (400)
  • Page 30 Heating performance data Terminology: Pc : Heating capacity (W) Tsa : Leaving air temperature (°C) De : Water flow rate (l/h) Dp : water side pressure drop (KPa) ARIA EC Size 40 4 row coil (application 2P-C/O) Airflow from 305 to 390 L/sec (1100 to 1400 m Airflow 250 (900 278 (1000)
  • Page 31: Water Coil Pressure Drop

    Water coil pressure drop ARIA EC 10 1000 1 rang 2 rangs 3 rangs 1000 10000 0,01 Water flow rate (l/h) débit d'eau (l/h) ARIA EC 20 1 rang 4 rangs 1000 10000 0,01 Water flow rate (l/h) débit d'eau (l/h) ARIA EC-AGU-0909-E Page 29...
  • Page 32 ARIA EC 30 1000 1 rang 4 rangs 1000 10000 0,01 0,001 débit d'eau (l/h) Water flow rate (l/h) ARIA EC 40 1000 1 rang 4 rangs 1000 10000 0,01 0,001 débit d'eau (l/h) Water flow rate (l/h) ARIA EC-AGU-0909-E Page 30...
  • Page 33: Dimensional Data

    Dimensional data ARIA EC 10 with 2 row coil - Left hand configuration ARIA EC-AGU-0909-E Page 31...
  • Page 34: Aria T20 - 4 Row Coil - Left Hand Configuration

    ARIA EC 20 with 4 row coil - Left hand configuration ARIA EC-AGU-0909-E Page 32...
  • Page 35: Aria T30 - 4 Row Coil - Left Hand Configuration

    ARIA EC 30 with 4 row coil - Left hand configuration ARIA EC-AGU-0909-E Page 33...
  • Page 36: Aria T40 - 4 Row Coil - Left Hand Configuration

    ARIA EC 40 with 4 row coil - Left hand configuration ARIA EC-AGU-0909-E Page 34...
  • Page 37: Control Valves

    Control valves Two types of valve body has been qualified for controlling the water flow in ARIA EC units cooling or heating coils 2 way valve body and 3 ways with bypass: brass valve stainless steel stem flat face for washer seal bronze body male thread 1/2G fluid: water with max 50 % glycol.
  • Page 38: Valve Pressure Drops

    Differential pressure of the valve body/valve actuator Size Differential pressure (kPa) Valve On/Off 3 points Inches A-AB B-AB reference M100 4450/8450 7410C1007 V9071X0015 V5832A4008 V5832A1046 V5832A1053 ½’’ 0,63 V5833C1025 V5833C4003 0,63 V5833C1025 V5833C1033 Valve pressure drops : 1000 1000 Water flow rate (l/h) Débit d'eau (l/h) Flexible connections Material :...
  • Page 39: Specification Guide

    SPECIFICATION GUIDE Supply ARIA EC type air conditioning terminal units for chilled and hot water or electric heater application in accordance with the dimensional drawings. The performance of the ARIA units shall conform to the published data The casings of the ARIA EC units will be made of galvanised steel of 8/10 mm minimum thickness and insulated internally with Melamine foam insulation, of 8 mm minimum thickness, protected by aluminium foil glued to the exposed surface.
  • Page 40 LENNOX DISTRIBUTION +33.4.72.23.20.00 info.dist@lennoxeurope.com Due to Lennox’s ongoing commitment to quality, the Specifications, Ratings and Dimensions are subject to change without notice and without incurring liability. Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.
