We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this umbrella. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

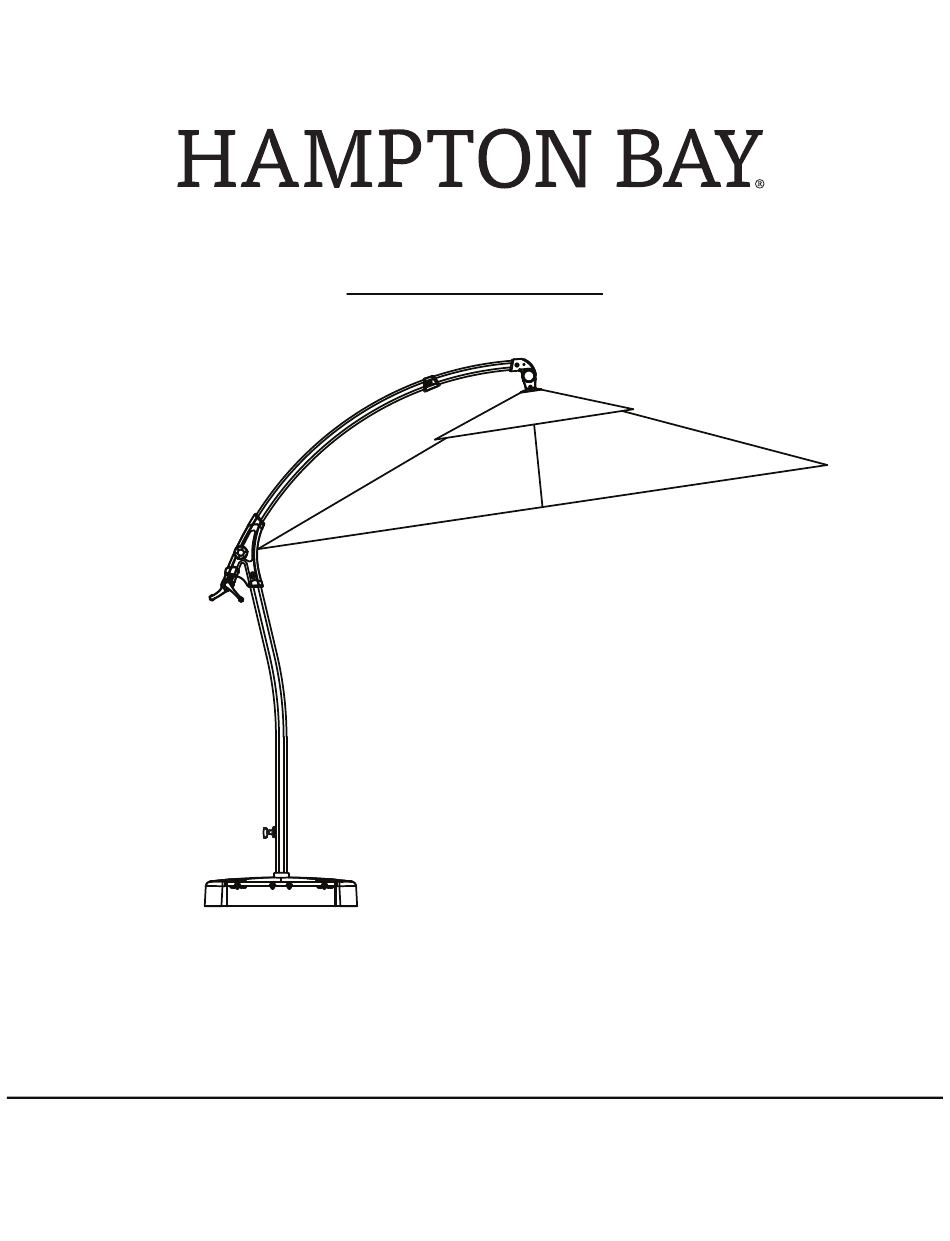

USE AND CARE GUIDE
8 FT. SQUARE OFFSET NON-SOLAR UMBRELLA
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Thank you for choosing Hampton Bay!
THANK YOU
Item #1003 489 387
1003 514 173
1003 514 165
Model #YJAF-037-E
YJAF-037-PU
YJAF-037-MI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YJAF-037-E and is the answer not in the manual?

Questions and answers

Joe Bartos
June 22, 2025

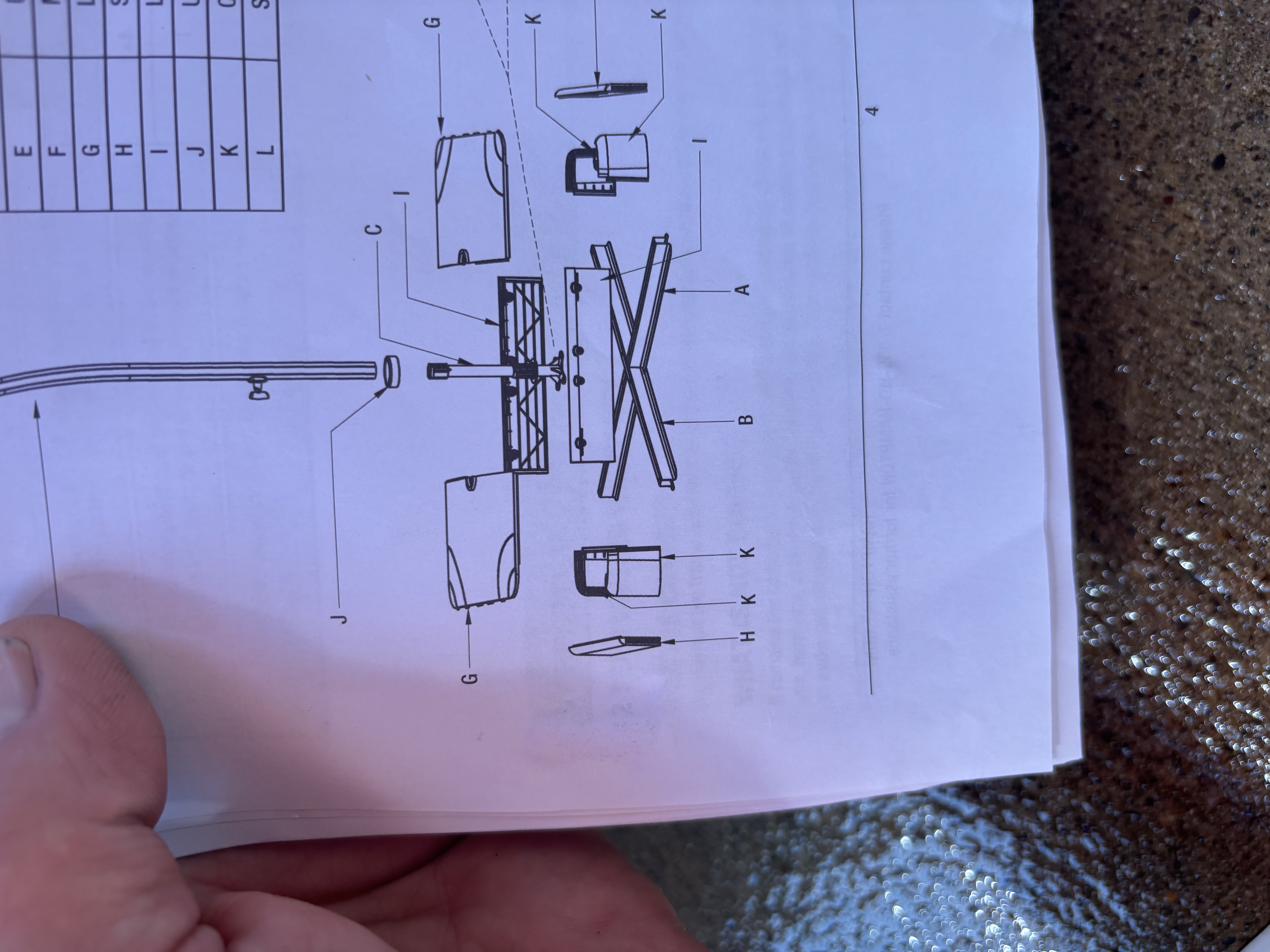

I need One (1) H side panel and One (J) upper base cover Please send me pricing and availability to Jbartos@stellar.net

User image 6858525c24196
0

Related Manuals for HAMPTON BAY YJAF-037-E

Summary of Contents for HAMPTON BAY YJAF-037-E

  • Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this umbrella. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2 Table of Contents Table of contents ..............2 Pre-assembly ................3 Safety Information ...............2 Planning assembly ..............3 Product Caution ................2 Hardware included ..............3 Safety Warnings ................2 Packaging contents ..............4 Warranty...................2 Assembly................5 operations................19 What is covered ................2 What is not covered ..............2 Care and Cleaning ..............
  • Page 3 Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED : Hardware not shown to actual size. NOTE Quantity Part...
  • Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Quantity Part Description Lower bracket Upper bracket Lower umbrella pole Crank Umbrella shade Middle umbrella pole Lower base cover Side panel Lock panel Support tube rim Upper base cover Corner connector Sand bag...
  • Page 5 Assembly ATTACHING THE BRACKETS Attach the upper bracket (B) onto the lower bracket (A). NOTE : This umbrella should be set up in its desired location to avoid moving it after assembly. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6 Assembly (continued) SEPARATING THE MIDDLE UMBRELLA POLE FROM THE LOWER UMBRELLA POLE Separate the middle umbrella pole (F) from the lower umbrella pole (C) by rotating the locking knob 180 degrees clockwise, as shown below.
  • Page 7 Assembly (continued) ATTACHING THE LOWER UMBRELLA POLE TO THE BRACKETS Attach the lower umbrella pole (C) to the upper bracket (B) and the lower bracket (A) using M8x20 combination hex bolts (AA). NOTE : Fully tighten the bolts using the hex wrench (BB). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Assembly (continued) INSERTING THE CORNER CONNECTORS Insert the corner connectors (L) into the four ends of the assembled brackets.
  • Page 9 Assembly (continued) SLIDING THE LOCK PANELS Slide the perforated lock panels (I) downward between the corner connectors (L). Slide the support tube rims (J) down the lower umbrella pole (C) and connect it to the brackets (A & B). A & B HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Assembly (continued) SLIDING THE SIDE PANELS Slide the side panels (H) downward between the corner connectors (L).
  • Page 11 Assembly (continued) PLACING THE SAND BAGS Place the sand bags (M) in the umbrella base. NOTE : Place the base in the area where the umbrella to be used. The umbrella will be very HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Assembly (continued) FILLING THE SAND BAGS Pull to open the velcro pouch on the sand bag (M) and fill with sand. After filling the sand bags (M), close the pouch and ensure the velcro is sealed. Lock the two sections of the sand bags (M) together. NOTE : The sand bags (M) are to be filled with sand only.
  • Page 13 Assembly (continued) ENSURING THE LOCKING MECHANISM IS IN THE OPEN POSITION Ensure the locking mechanism on the lock panel (I) is in the OPEN position by using the wrench (BB) as shown in figure 1. Ensure the locking mechanism on the lower base cover (G) is in the OPEN position by using the wrench (BB) as shown in figure 2. Attach the lower base cover (G) to the side panels (H).
  • Page 14 Assembly (continued) LOCKING THE LOWER BASE COVER Lock the lower base cover (G) and the lock panel (I) by turning the locking mechanisms to the CLOSE position using the wrench (BB) as shown in figure 1 and figure 2. Attach the upper base cover (K) to the assembled base. Figure 1 Figure 2...
  • Page 15 Assembly (continued) ASSEMBLING THE UMBRELLA SHADE Align the holes, hold down the tabs on the pins and insert the tube to another tube until the two pieces snap into place. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 16 Assembly (continued) ATTACHING THE UMBRELLA SHADE TO THE MIDDLE UMBRELLA POLE Holding down the pins on the middle umbrella pole (F). Insert the middle umbrella pole (F) into the umbrella shade (E) until it snaps into place, as shown below. NOTE : Align the holes on the middle umbrella pole (F) before releasing the pins to secure.
  • Page 17 Assembly (continued) INSERTING THE UMBRELLA SHADE INTO THE LOWER UMBRELLA POLE Rotate the locking knob 180 degrees clockwise as shown in figure 1. Insert the umbrella shade (E) into the lower umbrella pole (C) as shown in figure 2. Rotate the locking knob 180 degrees clockwise as shown in figure 3. NOTE : : If there is a gap in the locking knob as shown below in figure 3, please rotate the umbrella shade (E) until it is completely locked as shown in figure 4 Figure 1...
  • Page 18 Assembly (continued) ATTACHING THE CRANK Attach the crank (D) to the handle, details see operation 1.
  • Page 19 Operation ATTACHING THE CRANK Attach the crank (D) to the handle as shown in figure 1. Attach the crank (D) by aligning the tap with the hole on the crank (D) until it snaps into place. To detach the crank, any properly sized tool is required to press the tap to take the crank (D) out. Attach the crank (D) without using the tap as shown in figure 2.
  • Page 20 Operation (continued) RAISING THE UMBRELLA Loosen the knob on the umbrella shade as shown in figure 1 by turning it counterclockwise until it is fully loose. Hold the umbrella handle and push the long bent tube upward as shown in figure 2 until it stops and the umbrella is fully extended. Fully tighten the knob on the umbrella shade clockwise as shown in figure 3 to lock the handle in place.
  • Page 21 Operation (continued) OPENING THE UMBRELLA Slowly turn the crank (D) clockwise to open the umbrella as shown in figure 1. When the umbrella is fully open, fasten the velcro belt to stabilize the umbrella. Make sure the velcro belt is tightened as shown in figure 2.
  • Page 22 Operation (continued) OPERATING THE UMBRELLA Rotate the locking knob 180 degrees clockwise as shown in figure 1. Hold the umbrella handle with one hand and hold the short bent tube with the other hand to rotate the umbrella as shown in figure 2. (The umbrella can rotate up to 360 degrees.) When the umbrella is at the desired position, rotate the knob 180 degrees clockwise as shown in figure 3.
  • Page 23 Operation (continued) CLOSING THE UMBRELLA Loosen the velcro belt as shown in figure 1. Turn the crank counterclockwise to close the umbrella as shown in figure 2. Figure 1 Figure 2 Figure 1 Velcro belt HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 24 Operation (continued) CLOSING THE UMBRELLA When the umbrella is closed, fully loosen the knob on the umbrella shade (E) by turning it counterclockwise as shown in figure 1. Hold the handle and pull the long bent tube downward as shown in figure 2. Tighten the knob on the umbrella shade (E) by turning clockwise as shown in figure 3 after closing the umbrella.
  • Page 25 Operation (continued) STORING THE UMBRELLA Tie the umbrella to the umbrella pole with the Velcro belt when not in use, as shown below. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 26 Operation (continued) STORING THE UMBRELLA Loosen the knob on the umbrella shade as shown by turning it counterclockwise until it is fully loose. Pull out the umbrella shade and separate with umbrella base when not in use. Care and Cleaning For best results, clean the umbrella with damp cloth and dry thoroughly.
  • Page 27 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
