Item # 1002 654 821, 1002 654 816,
1002 062 607, 1002 656 417,
1002 062 593, 1002 556 664
Model # YJAUC-171-JT,
YJAUC-171-DM,
YJAUC-171-RUBY,
YJAUC-171-PK,
YJAUC-171-CAFÉ,
YJAUC-171-EC
USE AND CARE GUIDE

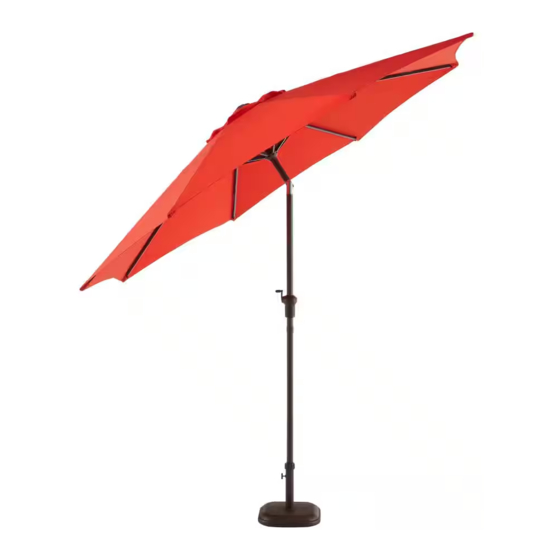

9 FT. STEEL UMBRELLA
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this
umbrella
. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY YJAUC-171-JT
Summary of Contents for HAMPTON BAY YJAUC-171-JT
- Page 1 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this umbrella . We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Product Caution ...............2 Package Contents ..............3 Assembly ............... 4 Safety Warning.................2 Warranty ................. 2 Operation............... 5 What is Covered ...............2 Care and Cleaning ............7 What is Not Covered ..............2 Safety Information PRODUCT CAUTION... -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to complete the assembly of this product. PACKAGE CONTENTS Part Description... -
Page 4: Assembly
Assembly Assembling the umbrella shade to the umbrella pole Place the umbrella shade (A) over the umbrella pole (B). Push the tab on the umbrella pole (B) while you slide the umbrella pole (B) into the umbrella shade (A) until the two pieces snap into place. Push... -
Page 5: Operation
Operation Opening the umbrella Shake the umbrella fabric before opening the umbrella. Slowly turn the crank clockwise to open the umbrella. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. - Page 6 Operation (continued) Tilting the umbrella To tilt the umbrella, push the button located on the top of the umbrella shade (A). PUSH...
-
Page 7: Care And Cleaning
Operation (continued) Closing the umbrella Slowly turn the crank in a counterclockwise direction to close the umbrella. Care and Cleaning For best results, clean the pole with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
