Summary of Contents for infaco Powercoup PW2 EC1700

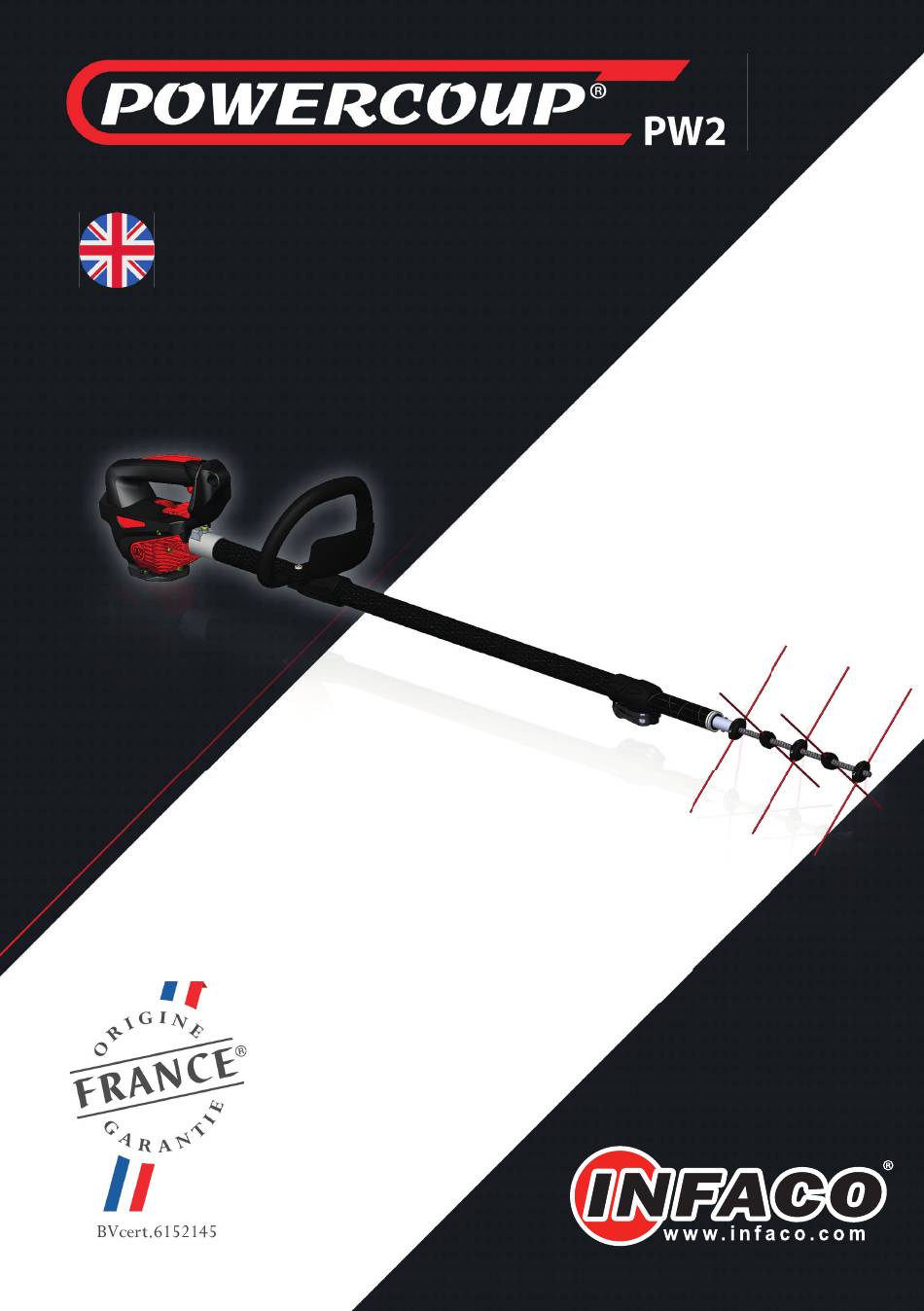

- Page 1 Ec1700 ORIGINAL INSTRUCTIONS...
- Page 2 1 HANDLE = 8 TOOLS hand tools SC160 PW36RB THD600 THD700 PW2 + PW2 + PW2 + PW2 + PW2 + Tools with pole PW2 + PW2 + PW2 + PW2 + SC 160+PW930 TR8+PW930 THD600+PW930 THD700+PW930 PW2 + PW2 + PW2 + PS (Sarclage) PB (Binage)
- Page 3 Reference Description Universal handle for the POWERCOUP PW2 range. THD600 Double hedge trimmer, length of the cutting bar 600mm. THD700 Double hedge trimmer, length of the cutting bar 700 mm. Reciprocating saw, max cutting capacity max. Ø150mm. SC160 Reciprocating saw, max cutting capacity Ø100mm. PW 930 Carbon extension pole, length 930mm.
-
Page 4: Table Of Contents
Contents CONTENTS _________________________________________________________ 5 SAFETY INSTRUCTIONS ______________________________________________ 5 PERSONAL PROTECTIVE EQUIPMENT __________________________________ 5 ENVIRONMENTAL PROTECTION ______________________________________ 6 CHARACTERISTICS __________________________________________________ 6 VIEWS OF ACCESSORIES ____________________________________________ 6 USER’S MANUAL ____________________________________________________ 7 INSTALLATION AND POWER CONNECTION ___________________________________________ USING THE MACHINE ____________________________________________________________ SETTING CLEARANCE ______________________________________________________________ 9 SAFETY PRECAUTIONS______________________________________________ 11 CARE AND MAINTENANCE _________________________________________ 12 WEEKLY GREASING _______________________________________________________________... -
Page 5: Contents
Follow the specifi c instructions for waste elimination in your country. Electrical appliances should not be thrown in the garbage. The device, accessories and packaging should be recycled. Ask your specialist INFACO retailer for the latest information on eco-compatible waste elimination. -
Page 6: Characteristics
GENERAL OVERVIEW Electrofl or brush Removable handle Telescopic pole CHARACTERISTICS Reference EC1700 Power 1400W Max Weight 2 kg 790 Length 1.63 à 2.26m Blade speed Réglable de 200 à 1900 r/min VIEWS OF ACCESSORIES Battery 150Wh Power cord Battery 500Wh Battery 120Wh 3,1 Amp. -
Page 7: User's Manual
USER’S MANUAL INSTALLATION AND POWER CONNECTION Only use INFACO brand batteries with a supply voltage 48 volts. It is imperative to read the operating instructions for the tools and accessories before handling or connecting the tool. If it is raining, the battery vest must be worn underneath waterproof clothing so that the battery unit and control box remain dry. -
Page 9: Setting Clearance
SETTING CLEARANCE Unplug the tool. Do not connect the PW2 handle on the extension. If no movement = clearance is OK If movement = adjust the clearance EC1700 - EP1700 - TR8 - SC160 - THD The setting clearance should be IMPERATIVELY with an accessory mounted and locked on the handle. - Page 10 (x3) 1 Start : 2 short pulls of the trigger = ON Standby output : 2 short pulls of the trigger = ON 2 Normal operations : 1 long pull of the trigger = ON / Releasing the trigger = OFF 1 short pull of the trigger = ON / 1 short pull of the trigger = OFF SETTING OF ROTATION SPEED 10 speed increments available between 320 and 1900 r/min...
-
Page 11: Safety Precautions
SAFETY PRECAUTIONS For transportation, storage, maintenance, tool maintenance or any other operation outside of using the tool you must unplug the tool. Off Off 539f20... -
Page 12: Care And Maintenance
Care AND MAINTENANCE All maintenance operations must be performed with the tool disconnected from all power sources. Maintenance of the tool depends on the frequency of tool use. Occasional use, space out intervals. Intensive use, more frequent intervals. Visual inspection Complete tool Cleaning Have checked by dealer... -
Page 13: Assembling The Brush
ASSEMBLING THE BRUSH Prepare the carbon shaft, half-shell and wires required, according to use. 1- Place a lock-nut on each half-shell (supplied with the machine. (Fig. 1A) 2- Place a lock-nut on each half-shell.. The wire must be positioned symmetrically. 3- Place the unit on the end of the carbon shaft. -
Page 14: Safety Instructions
SAFETY INSTRUCTIONS BEWARE! In order to reduce the risk of electrical discharge, injury and fi re during the use of electrical tools, please observe the following basic safety measures. Read and follow these instructions before using the tool, and keep these safety instructions ! When not in operation, the POWERCOUP PW2 handle and its accessories must be disconnected and stored in their case. -
Page 15: Warranty Conditions
- Tools with warranty cards not returned at the time of purchase, - Tools used with a battery or charger other than those manufactured by INFACO. INFACO shall not remit payment for any monetary loss incurred for the time the tool is unavailable during repairs. -
Page 16: Recommandations
This tool is compliant with the safety regulations in force. All repairs must be carried out by an authorized service provider (ASP) or by INFACO and exclusively using original parts. Parts which are not original may seriously risk the safety of the user. -
Page 17: Warranty Card
RETAILER SECTION The retailer to keep this section Month / year of manufacture : ........Model: EC1700 Last name : ............................First name : ............................. Company name : ..........................Street address : ........................................................City : ..............................Zip code : ..........Phone : ........... - Page 18 RETAILER TO BE KEPT BY THE RETAILER FOR INFACO CUSTOMER FILE INFACO S.A.S Bois de Roziès 81140 CAHUZAC SUR VERE (France)
-
Page 19: Matériel Fabriqué En France
MATERIEL FABRIQUÉ EN FRANCE Manufacturer : INFACO S.A.S. - 81140 CAHUZAC-SUR-VÈRE (FRANCE) Type : ELECTRO’FLOR EC1700 Weight of ELECTROLIV : Modèle EC1700 2790g Max. power : 220 W Battery voltage : 48 Volts This information is being given for informational purposes only. It is under no circumstances contractual, and is subject to modification for reasons of improvement, without prior notice. -
Page 20: Déclaration Of Conformity Ce
- La personne autorisée à constituer le dossier technique au sein d’INFACO est M.ALVAREZ Grégory. The person authorized to compile the technical fi le within the company INFACO is Mr. Gregory ALVAREZ. L’appareil est également conforme aux dispositions des directives européennes suivantes :...
