Perkin-Elmer Lambda 365 Installation Instructions Manual

Water jacketed 8-position multi-cell holder
Hide thumbs Also See for Lambda 365:

Advertisement

Quick Links

Download this manual
Lam bda 365 W ater Jacketed 8-Position M ulti-Cell Holder
This instruction sheet describes the installation of this accessory which is used with the Lambda 365
Spectrophotometer.
Read these instructions before you install this accessory.
NOTE:
Contacting P erk inElm er
Supplies, replacement parts, and accessories can be ordered directly from PerkinElmer, using the part
numbers.
See our website:
http://perkinelmer.com
PerkinElmer's catalog service offers a full selection of high-quality supplies.
To place an order for supplies and many replacement parts, request a free catalog, or ask for information:
If you are located within the U.S., call toll free 1-800-762-4000, 8 a.m. to 8 p.m. EST. Your order will be
shipped promptly, usually within 24 hours.
If you are located outside of the U.S., call your local PerkinElmer sales or service office.
Features
•
Suitable size for the standard cells
Excellent durability
•
•
Controls the temperature by circulation of liquid

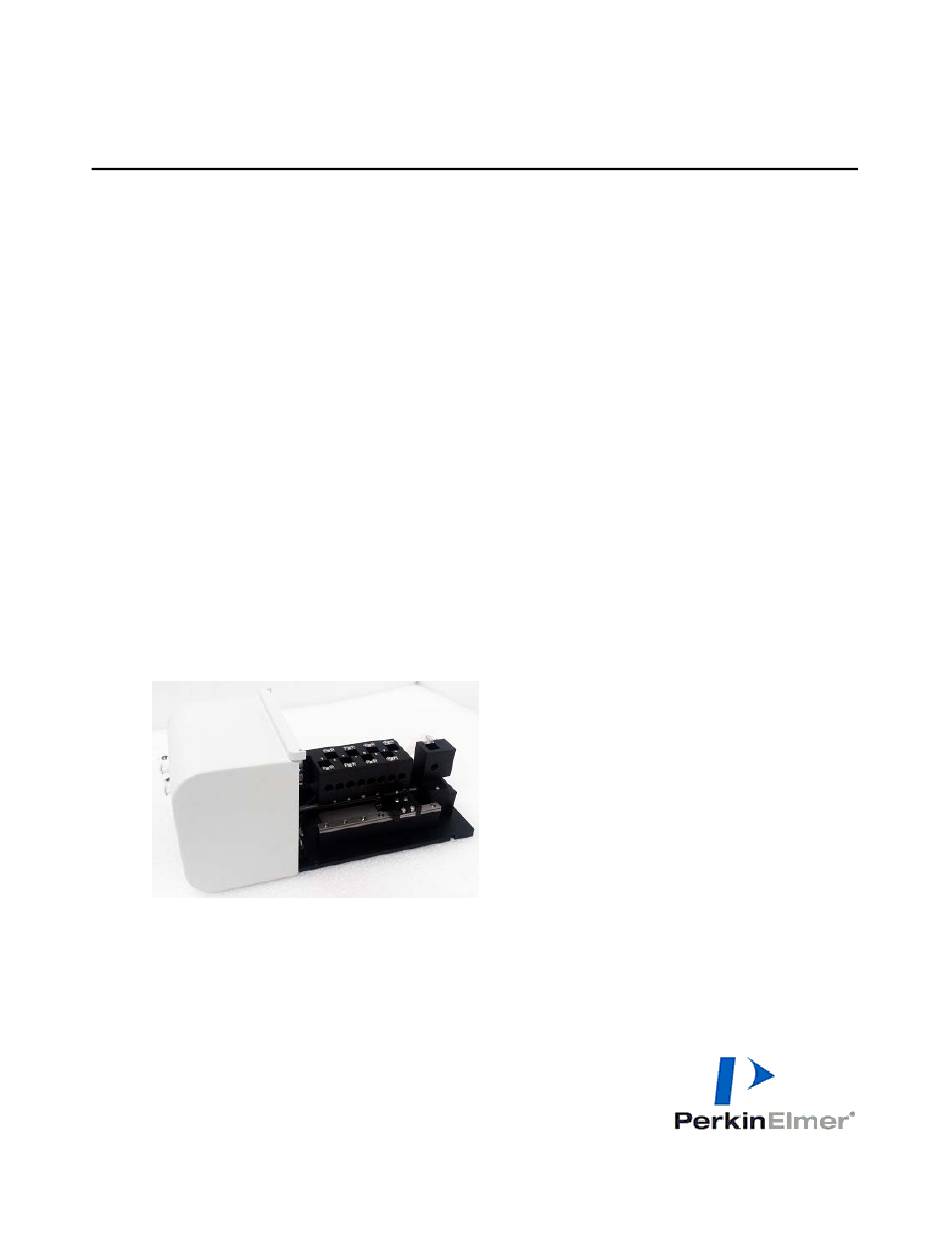

Figure 1 Lambda 365 Water Jacketed 8-Position Multi-Cell Holder [P/N: N4101006]
I nstallation I nstructions
09931251D
PerkinElmer, 710 Bridgeport Avenue,
Shelton, CT06484-4794, U.S.A
Produced in the USA.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lambda 365 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perkin-Elmer Lambda 365

Summary of Contents for Perkin-Elmer Lambda 365

  • Page 1 09931251D Lam bda 365 W ater Jacketed 8-Position M ulti-Cell Holder I nstallation I nstructions This instruction sheet describes the installation of this accessory which is used with the Lambda 365 Spectrophotometer. Read these instructions before you install this accessory.

  • Page 2: Dimensions And Specifications

    09931251D Dim ensions and Specifications Dim ensions Physical Characteristic Specification Comment Height (mm) Width (mm) Outline Depth (mm) Height (mm) Suitable for the Standard Width (mm) Inner Cell Depth (mm) 12.6 Weight (kg) Specifications Physical Characteristic Specification Comment Space between cells (mm) 10.4 Moving distance of one cell...
  • Page 3 Configuration of W ater Jack eted 8-P osition M ulti-Cell Holder Figure 2 Water Jacketed 8-Position Multi-Cell Holder Configuration - Used to fix a cell holder, a base plate or a front plate for Lambda 365. - Spare screws (2ea) are enveloped with the accessory.

  • Page 4: Installation

    ATTENTION Assurez-vous que l’instrument est éteint lors de l’installation de cet accessoire. 1. Prepare the Lambda 365 Spectrophotometer to install this accessory. 2. Connect the power cord and the communication cable. DO NOT turn on the power of the instrument! 3.
  • Page 5 09931251D 5. Insert the Water Jacketed 8-Position Multi-Cell Holder in the sample compartment. Figure 7. Inserting the Water Jacketed 8-Position Multi-Cell Holder into the sample compartment 6. Gently press the Water Jacketed 8-Position Multi-Cell Holder to connect the communication port (male) under the bottom of the Water Jacketed 8-Position Multi-Cell Holder to the port (female) in the sample compartment.
  • Page 6 09931251D 7. Tighten the Water Jacketed 8-Position Multi-Cell Holder in the sample compartment with the screws. (The red circles indicates the location of the screws in the figure). Figure 9. Tighten the Water Jacketed 8-Position Multi-Cell Holder 8. Assemble the tube with the male connector of quick coupling. Figure 10.
  • Page 7 09931251D 10. Turn on the power switch of the instruments. M easurem ent NOTE: Before executing System Self Test,the Water Jacketed 8-Position Multi-Cell Holder has to be installed first. Otherwise, the instrument can be damaged electrically and do not operate properly. 1.
  • Page 8 09931251D 8. ①Select the Accessory tab and ② Select Multi-cell on Accessory Type, and then click the ③Method Setup button to open the Multicell window. 9. Using the button, select cells to be used among the available cells list. Check (√) Multi Baseline or Multi Zero, if it is required to use.
  • Page 9 09931251D 10. Click OK. 11. After setting parameters for Experiment, Lamp, Internal Reference and Scan Setup, click Apply and then select OK. 12. After placing the reference solution into the selected Using Cell positions and the reference cell position of the Multicell holder, click the Baseline or Zero button to perform the Baseline or Zero function.
  • Page 10 09931251D 2. Select the Calibration tab in the Multicell window. The following dialog box will appear. 3. The functions of the Multicell Calibration are shown as follows. Command Function MultiCell Position Show saved steps about each cell position of the Multi-Cell. Used for moving Multi-Cell position as clicking buttons Multicell Move Used for moving Multi-Cell position using...
  • Page 11 09931251D 5. Select MultiCell Calibration , and then the following dialog box will appear. Remove all samples from the Multi-Cell holder (Empty the multicell holder). 6. Select OK, and then the Multicell calibration will start. The current process of calibration will be shown in the main window.

  • Page 12: Troubleshooting

    09931251D 8. Select Save Result to save the result. If the following message box appears, select OK. Troubleshooting W hen liquid leakage occurs 1. When liquid is leaking at the fittings. Using wrench, turn the fitting counter-clockwise to detach from the Water Jacketed Multi-Cell ...
  • Page 13  W hen the M ulti-Cell does not m ove 1. Check with the connector port. Check if the Multicell Holder connector is connected firmly to the Lambda 365.  W hen the intensity value is low 1. Recalibrate the Multi-Cell.
