Lambda 265, 365 and 465 Automatic Magnetic Stirrer
This instruction sheet describes the installation of this accessory which is used with the Lambda 265, 365
and 465 Spectrophotometer.
Read these instructions before you install this accessory.
NOTE:
Contacting PerkinElmer
Supplies, replacement parts, and accessories can be ordered directly from PerkinElmer, using the part
numbers.
See our website:
http://perkinelmer.com
PerkinElmer's catalog service offers a full selection of high-quality supplies.
To place an order for supplies and many replacement parts, request a free catalog, or ask for information:
If you are located within the U.S., call toll free 1-800-762-4002, 8 a.m. to 8 p.m. EST. Your order will be
shipped promptly, usually within 24 hours.
If you are located outside of the U.S., call your local PerkinElmer sales or service office.
Features
•
Easy to install
•
Stirring bar rotating evenly at variable speed
•
Vertical mixing
•
Ideal for small to medium stirring volumes of low-viscosity liquids
•
Two channel stirring available

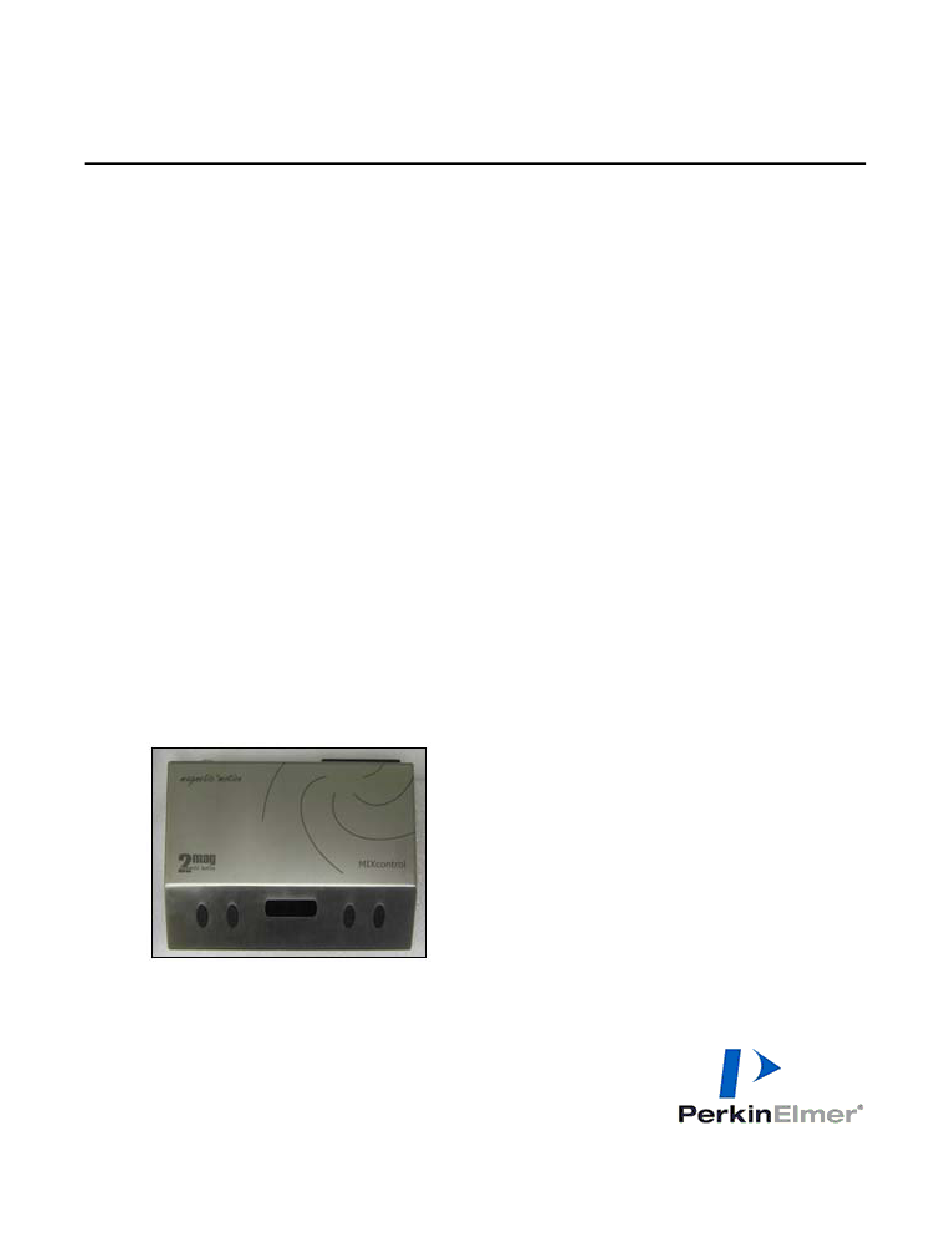

Figure 1 Magnetic Stirrer Control Unit [P/N: N4101016]
Assembly Installation Instructions
09931294C
PerkinElmer, 710 Bridgeport Avenue,
Shelton, CT 06484-4794, U.S.A
Produced in the USA.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lambda 265 and is the answer not in the manual?

Questions and answers

Related Manuals for Perkin-Elmer Lambda 265

Summary of Contents for Perkin-Elmer Lambda 265

  • Page 1 09931294C Lambda 265, 365 and 465 Automatic Magnetic Stirrer Assembly Installation Instructions This instruction sheet describes the installation of this accessory which is used with the Lambda 265, 365 and 465 Spectrophotometer. Read these instructions before you install this accessory.

  • Page 2: Dimensions And Specifications

    09931294C Dimensions and Specifications Physical Characteristic Specification Dimensions (mm) 200 (W) x 155 (D) x 380 (H) Weight (kg) Speed (rpm) 100 ~ 1,600 Stirring Power (W) 0 ~ 40℃, 80% Humidity Operating Condition Power AC 100-240 V / 50-60Hz / 1.5 A Description Front of the Control Unit Figure 2 Front of the Control Unit...
  • Page 3 09931294C Rear of the Control Unit Figure 3 Rear of the Control Unit (1) Power switch (2) Power socket (3) Socket for DistriBox 4 cable Configuration of the Magnetic Stirrer Assembly • Control Unit • DistriBOX 4 • Stirrer Control Cable, 2ea •...
  • Page 4 09931294C Compatible Lambda 265 Cell Holders to Magnetic Stirrer Assembly Accessory Drawing Single Cell Holder Water Jacketed Single Cell Holder Compatible Lambda 365 Cell Holders to Magnetic Stirrer Assembly Accessory Drawing Single Cell Holder Water Jacketed Single Cell Holder Micro Cell Holder...
  • Page 5 09931294C Compatible Lambda 465 Cell Holders to Magnetic Stirrer Assembly Accessory Drawing Single Cell Holder (Upon request) Water Jacketed Single Cell Holder (Upon request) 8 Cell Water Jacketed Cell Changer Water Jacketed Automatic Referencing Stage Where, the cell holder will be modified to be connected with the magnetic stirrer only upon request.

  • Page 6: Lambda 265 Installation

    09931294C Lambda 265 Installation The maximum ambient temperature is 50ºC in air and water immersed. The operation with over 50 ºC NOTE: temperature will damage the stirrer head. The Power Setting for setting the DistriBox4to 25. Whenever turning the main switch on or off, you NOTE: should set the power to 25.
  • Page 7 09931294C 1. Connect the power cable to the control unit. Figure 6 Connecting the power cable 2. Connect the distriBOX4 to the socket for the stirrer control cable. Figure 7 Connecting the distriBOX4 Connect to the Single / Water Jacketed Single Cell Holder 1.
  • Page 8 09931294C 2. Using the M3 wrench, remove the screw in the single cell holder and disassemble the holder. Figure 9 Removing the screw 3. Insert the stirrer head of the stirrer control cable into the single cell holder. Figure 10 Inserting the Stirrer head 4.
  • Page 9 09931294C 5. Press the ON/OFF key to turn on the control unit. When the stirrer speed is displayed, adjust the desired stirrer speed by using the MINUS-key and PLUS-key. Figure 12 Pressing the MINUS-key & PLUS-key When you press the mode key, power adjustment mode is displayed. The power settings should be set to NOTE: P 25.
  • Page 10 09931294C Lambda 365 Installation The maximum ambient temperature is 50ºC in air and water immersed. The operation with over 50 ºC NOTE: temperature will damage the stirrer head. The Power Setting for setting the DistriBox4to 25. Whenever turning the main switch on or off, you NOTE: should set the power to 25.
  • Page 11 09931294C 1. Connect the power cable to the control unit. Figure 15 Connecting the Power Cable 2. Connect the distriBOX4 to the socket for the stirrer control cable. Figure 16 Connecting the distriBOX4 Connect to the Single Cell Holder Connect two stirrer control cables to the 4-pin socket of the distriBOX4. Figure 17 Connecting the two stirrer control cables...
  • Page 12 09931294C 2. Using the M3 wrench, remove the screw in the single cell holder and disassemble the holder. Figure 18 Removing the screw in the single cell holder 3. Insert the stirrer head of the stirrer control cable into the single cell holder. Figure 19 Inserting the stirrer head 4.
  • Page 13 09931294C 6. Press the ON/OFF key to turn on the control unit. When the stirrer speed is displayed, adjust the desired stirrer speed by using the MINUS-key or PLUS-key. Figure 21 Pressing the MINUS-key or PLUS-key When you press the mode key, power adjustment mode is displayed. The power settings should be set to NOTE: P 25.
  • Page 14 09931294C 2. Loosen the top-to bottom adjustment knob by hand. Figure 24 Loosening the top-to bottom adjustment knob 3. Using the M3 wrench, remove the screw in the micro cell holder and disassemble the holder. Figure 25 Screwing in the micro cell holder 4.
  • Page 15 09931294C 5. Tighten the screw using the M3 wrench and reassemble the Micro cell Holder to the base plate. Be careful that the stirrer cable does not block the light beam path to the cell holder. Figure 27 Tightening the screw 6.
  • Page 16 09931294C Connect to the Water Jacketed Single Cell Holder 1. Connect the two stirrer control cables to the 4-pin socket of the distriBOX4. Figure 30 Connecting two stirrer control cables Using the M3 wrench, remove the screw in the water jacketed single cell holder and disassemble the holder.
  • Page 17 09931294C 5. Install the stirrer at the reference holder in the same as from step 2 to step 4. 6. Using the screw driver, remove M3 Phillips round head screw with washer (M3*10L) and detach the Stirrer cable fixing block from the front cover as marked with the red box in the picture below.
  • Page 18 09931294C When you press the mode key, power adjustment mode is displayed. The power settings should be set to NOTE: P 25. The default power set is 50. Whenever turning the main switch on or off, you should set the power to 25. NOTE: Figure 36 Power set to 25 Lambda 465 Installation...
  • Page 19 09931294C Connect the power cable with the control unit. Figure 38 Connecting the power cable Connect the distriBOX4 to the socket for the stirrer control cable. Figure 39 Connecting the distriBOX4 Connect to the Single/Water Jacketed Single Cell Holder 1. Connect two stirrer control cables to the 4-pin socket of the distriBOX4. Figure 40 Connecting the two stirrer control cables...
  • Page 20 09931294C 2. Using the M3 wrench, remove the screw in the single cell holder and disassemble the holder. Figure 41 Removing the screw 3. Insert the stirrer head of the stirrer control cable into the single cell holder Figure 42 Inserting the stirrer head 4.
  • Page 21 09931294C 5. Press the ON/OFF key to turn on the control unit. When the stirrer speed is displayed, adjust the desired stirrer speed by using the MINUS-key or PLUS-key. Figure 44 Pressing MINUS-key or PLUS-key When you press the mode key, power adjustment mode is displayed. The power settings should be set to NOTE: P 25.
  • Page 22 09931294C 2. Using the M4wrench, remove the screw of the 8 cell water jacketed cell changer and disassemble the stirrer mount. Figure 47 Removing the screw 3. Place the magnetic stirrer head on the stirrer mount of the 8 cell water jacketed cell changer. Figure 48 Placing the magnetic stirrer 4.
  • Page 23 09931294C 5. Press the ON/OFF key to turn on the control unit. When the stirrer speed is displayed, adjust the desired stirrer speed by using the MINUS-key or PLUS-key. Figure 50 Pressing the MINUS-key or PLUS-key When you press the mode key, power adjustment mode is displayed. The power settings should be set to NOTE: P 25.
  • Page 24 09931294C 2. Using the M4wrench, remove the screw of the water jacketed automatic referencing stage and disassemble the stirrer mount. Figure 53 Removing the screw 3. Place the magnetic stirrer head on the stirrer mount of the water jacketed automatic referencing stage.

  • Page 25: Troubleshooting

    09931294C 5. Press the ON/OFF key to turn on the control unit. When the stirrer speed is displayed,adjust the desired stirrer speed by using the MINUS-key or PLUS-key. Figure 56 PressingMINUS-key or PLUS-key When you press the mode key, power adjustment mode is displayed. The power settings should be set to NOTE: P 25.

This manual is also suitable for:

Lambda 465Lambda 365
