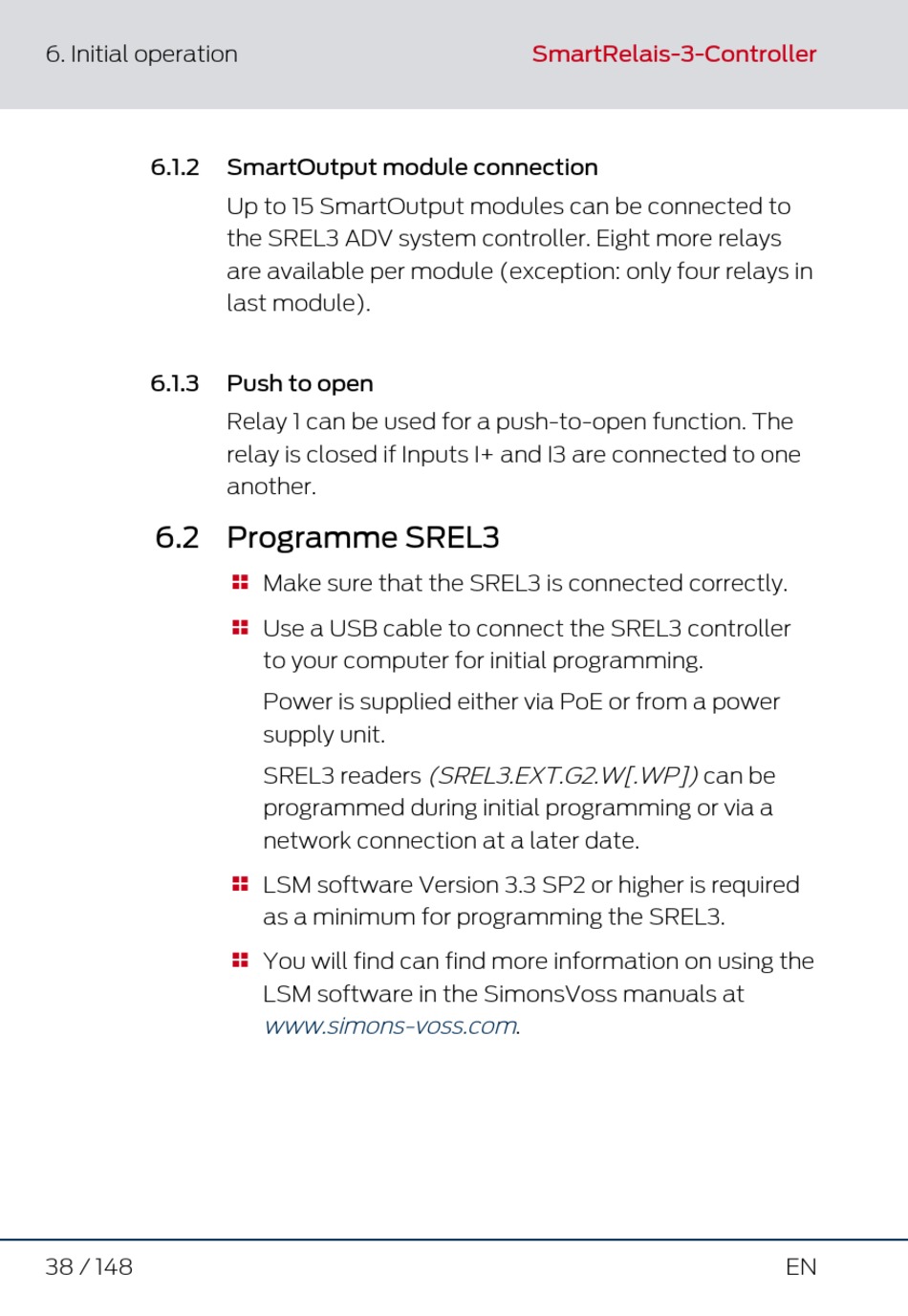

6. Initial operation
6.1.2
6.1.3

6.2 Programme SREL3

38 / 148

SmartOutput module connection

Up to 15 SmartOutput modules can be connected to
the SREL3 ADV system controller. Eight more relays
are available per module (exception: only four relays in
last module).

Push to open

Relay 1 can be used for a push-to-open function. The
relay is closed if Inputs I+ and I3 are connected to one
another.
Make sure that the SREL3 is connected correctly.

Use a USB cable to connect the SREL3 controller

to your computer for initial programming.
Power is supplied either via PoE or from a power
supply unit.
SREL3 readers (SREL3.EXT.G2.W[.WP]) can be
programmed during initial programming or via a
network connection at a later date.
LSM software Version 3.3 SP2 or higher is required

as a minimum for programming the SREL3.
You will find can find more information on using the

LSM software in the SimonsVoss manuals at
www.simons-voss.com
SmartRelais-3-Controller
.
EN
