Mocka Jesse Changing Tray Assembly Instructions

Download this manual

Enlarged version

Jesse Changing Tray

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

bracket

bolt

dowel

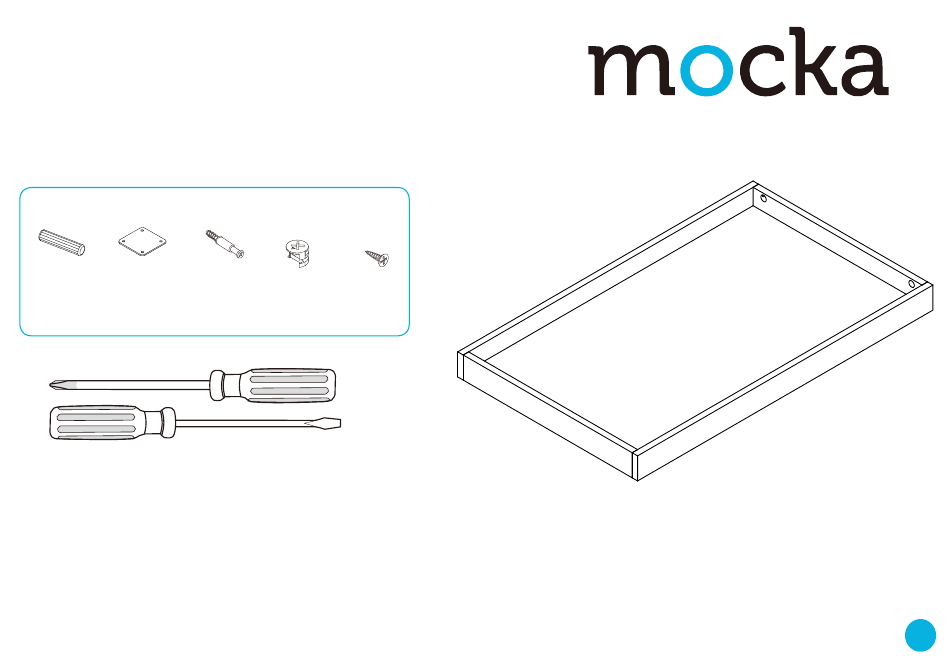

Hardware Supplied

Phillips & Flathead screwdrivers required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

WARNING:

Any furniture that is not anchored to a wall has the

potential to tip over in certain circumstances, i.e. if a child attempts to

climb up on the furniture or in the event of an earthquake. Accordingly,

we recommend that all furniture is anchored to a wall. We supply a

free safety wall anchor with all furniture sold and we recommend

these are used to prevent your product tipping. The fixing device

provided should fit most wall types, but please note that different wall

materials may require different fixing devices from those supplied.

mocka.co.nz | mocka.com.au

locking nut

small screw

Need help?

Do you have a question about the Jesse Changing Tray and is the answer not in the manual?

Page 1 Jesse Changing Tray Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. bracket bolt locking nut small screw dowel Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting.
Page 2 Jesse Changing Tray Assembly Instructions Insert 4x cam bolts (C) into panel [2]. Insert 4x cam bolts (C) into panel [3]. Insert 2x dowels (A) into panel [3]. Attach panels [1] and [3] using 2x locking Tighten with a screwdriver.
Page 3 Jesse Changing Tray Assembly Instructions Slide panel [4] along the grooves between the side panels [1] to form the Insert 2x dowels (A) into panel [3]. Attach panels [5] and [3] using 2x base of the tray. locking nuts (D).Tighten with a screwdriver.
Page 4 Jesse Changing Tray Assembly Instructions Insert 4x dowels (A) into panel [2]. Attach panels [1], [5] and [2] using 4x Attach tray to the unit using 2x bracket (B) and secure with 8x screw (E). locking nuts (D). Tighten with a screwdriver.
