13

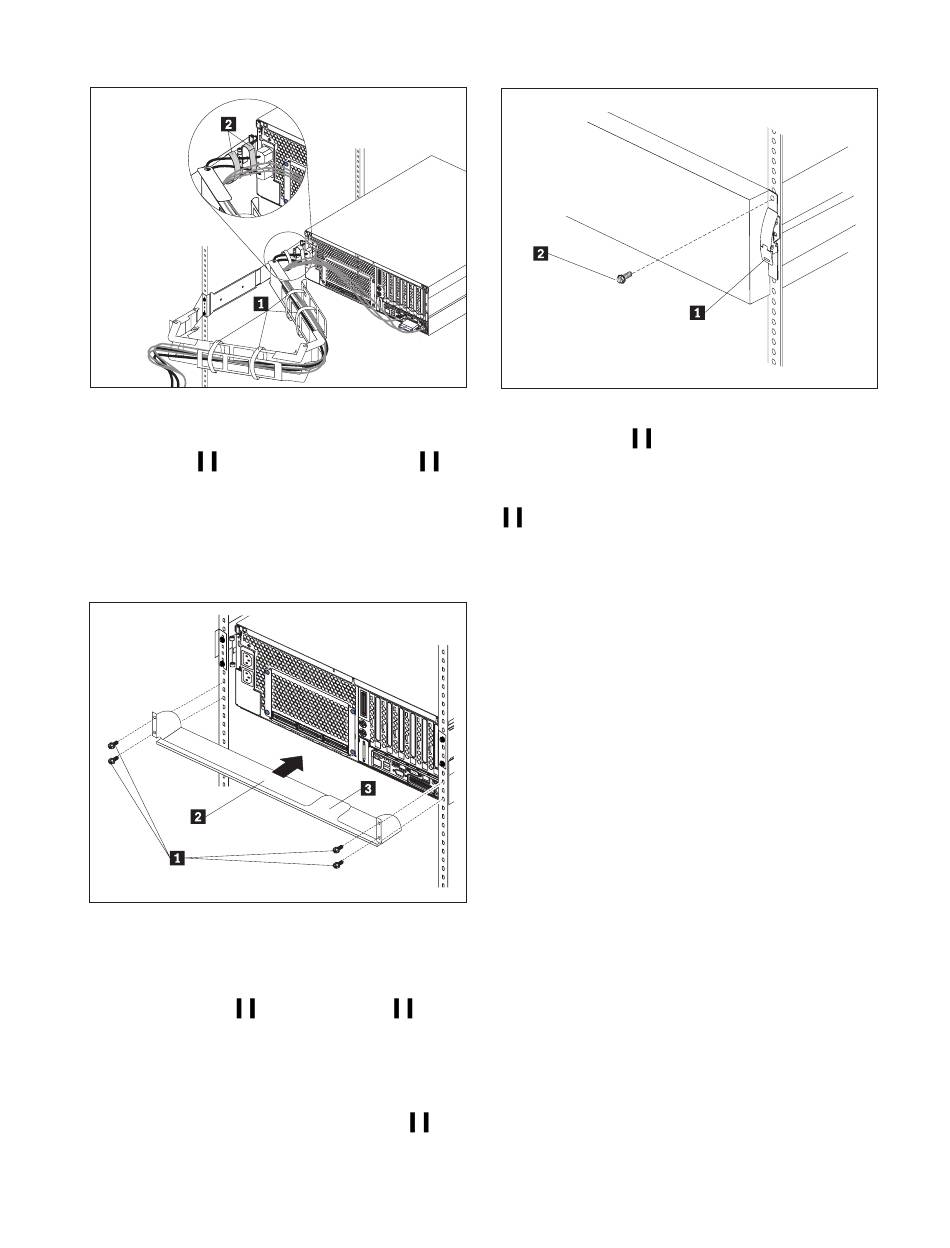

Route the cables through the
cable-management arm, securing them with
cable straps 1 . Use two cable straps 2
(one on each side of the hinge) to secure the
power cords to the hinge plate.
See the documentation that comes with your
server and optional devices for complete
cabling instructions.
15
Important: The chassis support bracket must
be installed if you move the rack cabinet after
you install the server.
Align the bracket 2 so that the tab 3
engages the lower rear of the server. Install
cage nuts or clip nuts, depending on your rack
cabinet, on the rear mounting flanges in holes
that align with the holes in the bracket; then,
insert and fully tighten four M6 screws 1 .
Store this information with your server documentation for future use.
14
Slide the server into the rack cabinet until the
release latches 1 lock into place.
Note: If you move the rack cabinet or install it
in a vibration-prone area, insert the M6 screws
2 ; then, install the chassis support bracket
(see Step 15). If the server comes installed in
the rack cabinet, the bracket also comes
installed and need not be removed.
