- Page 1 DCV ACCESSORIES INSTALLATION GUIDE...
-
Page 2: Table Of Contents
However should any parts be damaged or missing please contact your point of purchase. This does not affect your statutory rights. In addition if you require replacement parts please contact the Aqualisa customer helpline on 01959 560010 for assistance. -
Page 3: Parts Supplied

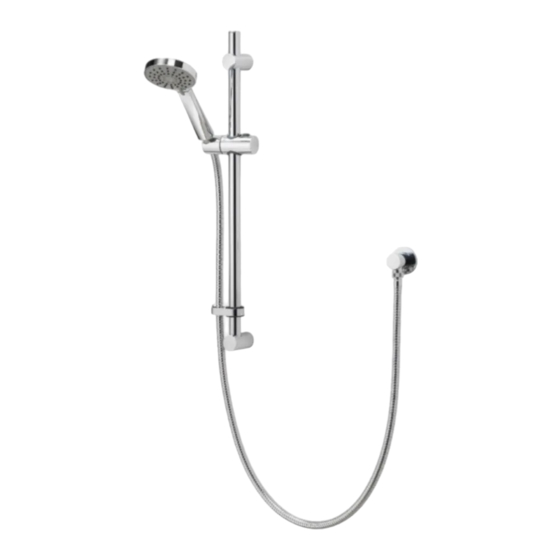

PARTS SUPPLIED BRASS WALL MOUNT HOLDER DESCRIPTION Cover Plate Wall Plugs Backplate Allen Key Wall Screws Handset Holder Grub Screws ACY1015 ADJUSTABLE SHOWER KIT DESCRIPTION Wall Plugs Upper Rail Bracket Short Wall Screw End Caps Handset Holder Handset Riser Rail Shower Hose - 1.5m Hose Restraint Lower Rail Bracket... - Page 4 FIXED ARMS - WALL AND CEILING DESCRIPTION Backnut Backnut Washer ACY1002 Fixing Nut Cover Plate ACY1001 ACY1003 Shower Arm FIXED HEADS DESCRIPTION Shower Head Ball Joint Filter Washer ACY1004 200mm round ACY1007 300mm round ACY1005 200mm square ACY1006 300mm square BRASS WALL OUTLETS DESCRIPTION Backnut...
-
Page 5: Warranty
WARRANTY Aqualisa products are supplied complete with a 1 year guarantee that can be upgraded by registering this product with Aqualisa. See www.aqualisa.co.uk/warranty for details. BEFORE YOU START Filter washer This shower should be installed by a competent person in compliance with... -
Page 6: Fixed Arms Installation
