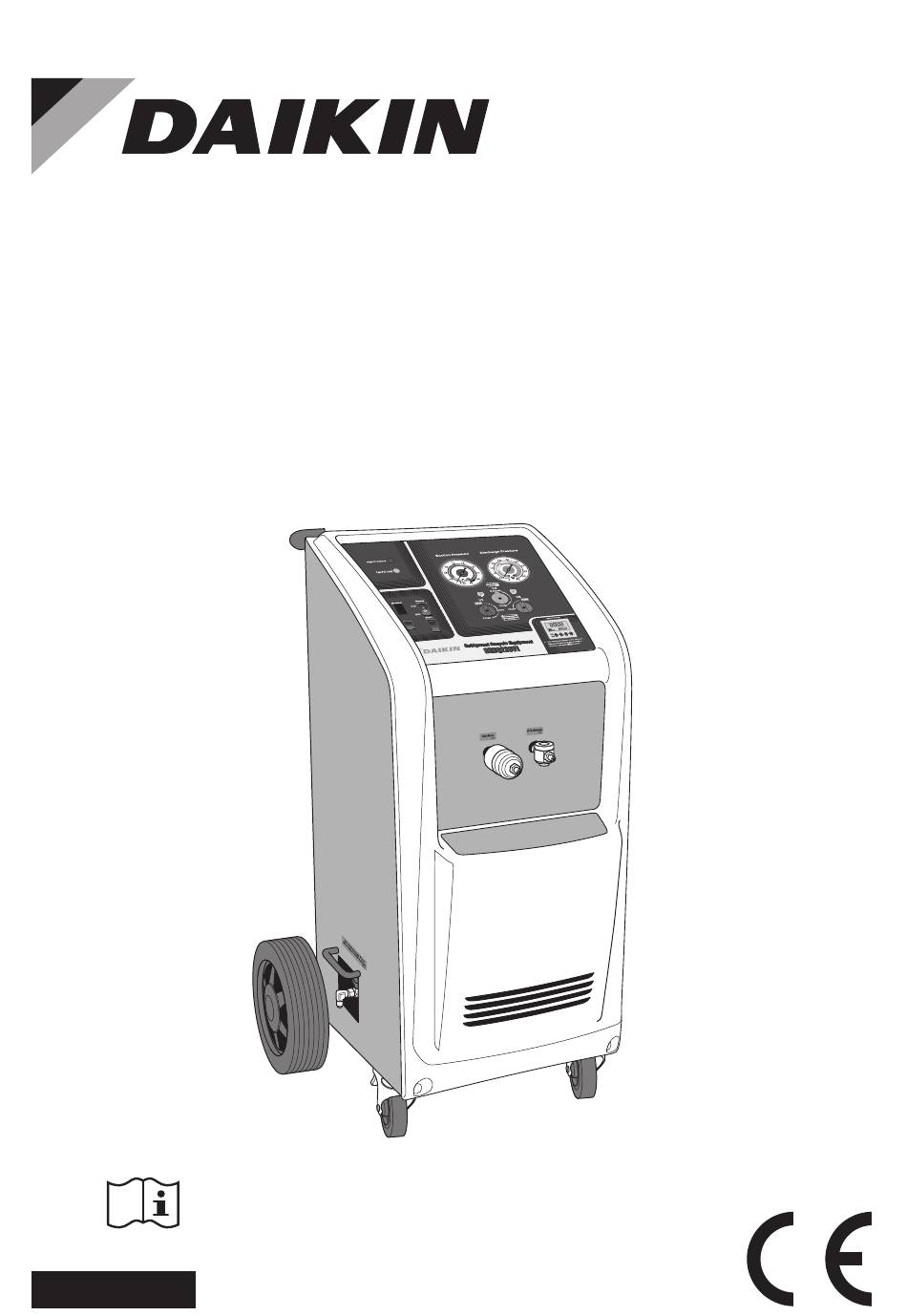

- Page 1 REF RIGERA NT R ECYC LE EQUI PMENT RRDQ220V1 OPERATION MANUAL 【Please read this manual before operation】 【Original operation manual】 English...
-
Page 2: Table Of Contents
Refrigerant Recycle Equipment FOR SAFE OPERATION Thank you for selecting Refrigerant Recycle Equipment RRDQ220V1. ● Please give this operation manual to anyone who operates this unit. ● For safe and efficient operation any operator should read this manual thoroughly before operation. ● Keep this manual at a safe place that is easily accessible by operators. - Page 3 RRDQ220V1 WARNING FOR SAFETY ● General warnings in operating this unit are mentioned in this section. ● While specific details are mentioned in each particular clause. WARNING ◆ When performing recycle operation, choose a location that has good ventilation. In enclosed areas, mechanical ventilation should provide at least four air changes per hour or the unit should be used at least 0.5m above the floor. Leakage of gas without sufficient ventilation may cause suffocation due to lack of oxygen.
- Page 4 Refrigerant Recycle Equipment WARNING ◆ Do not have the electric cord connected to other electrical devices or with other cords. It may cause fire. ◆ Do not pull on the electric power cord to remove from the outlet. It may cause fire or injury. ◆ The power source should be AC220-240V 10A or use a generator with the capacity of 3KVA or more.
- Page 5 RRDQ220V1 CAUTION ◆ Keep a space of 1 m or more around the unit. Do not let other workers come within 1 m of the unit. ◆ Do not let visitors touch the unit. ◆ Do not use the unit for purposes other than the originally intended. This unit is designed to recycle the specified refrigerants. ◆ Do not operate the unit with overload. Operating under overload may cause an accident or damage to the unit. ◆ Do not use the unit on an uneven floor.
-
Page 6: Components Of The Unit
Refrigerant Recycle Equipment COMPONENTS OF THE UNIT Name of Each Part Labels are required by law for safety and the warnings are placed on the recycle unit. If the label comes off the unit or became dirty and unreadable, request us for new label. Replace the label at the same position on the unit. Suction Pressure Discharge Pressure Gauge... -
Page 7: Specifications
RRDQ220V1 Specifications Description Refrigerant Recycle Equipment Code No. / Type AR023E / RRDQ220V1 Recycle refrigerant R410A、R32、 R134a Recycle method Liquid, Electrostatic separation recycle method（possible to vapor recycle） Power supply 220 - 240V/ Single-phase（50 / 60Hz） > 8 Amps recommended Compressor 750W（1HP）... -
Page 8: How To Use
Refrigerant Recycle Equipment HOW TO USE Preparation Before Operation 1）Discharge nitrogen gas from the unit The new unit is filled with nitrogen gas to prevent damage during transit. ① Connect the unit to proper power supply. ② Connect Filter to Suction Port. (V1) Suction / (V3) Discharge (Refer to page 8 ③ ) Valve OPEN ③... -
Page 9: Recycle Operation
RRDQ220V1 Recycle Operation 1）Connection of hose and cords A scale must be used to prevent High overfilling of cylinder. pressure side pressure side CLOSE CLOSE CLOSE Operation time Liquid Vapor valve valve Liquid valve Vapor valve CLOSE CLOSE CLOSE CLOSE CLOSE Suction Discharge Filter Liquid port... - Page 10 OPEN Ball valve DISCONNECT OPEN CLOSE RESOLUTION CONNECT RRDQ220V1 Manifold Cylinder + Scale Cylinder ① Open high and low pressure side valve of manifold. ② Open the ball valve of the hose. ③ Connect vacuum pump to side port of manifold.
- Page 11 RRDQ220V1 3）Recycle procedure CAUTION Auto Shut-off ◆ Warm up the unit when ambient temperature is under 10℃ . Refer to page 16 "Warm Up Operation" ◆ A scale must be used to prevent overfilling of cylinder. High pressure side pressure side Suction Valve Switching Valve Discharge Valve CLOSE OPEN OPEN RECYCLE OPEN Power Start CLOSE Liquid valve OPEN Vapor valve CLOSE CLOSE CLOSE Operation time...
- Page 12 OPEN SLOWLY Manual OPEN RESOLUTION Manifold RRDQ220V1 Cylinder + Scale Cylinder ■ Operation method ① Connect hoses as above after carrying out procedure on Page 9 " 2) Evacuation of the recycle unit and the hoses". ② Set Auto Shut-off/Manual Mode Setting to [Auto Shut -off] position.
- Page 13 RRDQ220V1 ⑤ After ④ , turn Suction Valve (V1) to [OPEN] position. ⑥ Open the suction hose ball valve from the manifold slowly for approximately 20 seconds. ⑦ Follow usual recycle procedure. ■ Note (CAUTION) (1) R134a has a high boiling point and is harder to gasify than R410A.
-
Page 14: Description Of Auto Stop Timer
Refrigerant Recycle Equipment Recycle Procedure When the Pressure of Refrigerant is High ● Use the following procedure when refrigerant which becomes high pressure due to temperature rise. Refer to page 10 "Recycle Procedure". CAUTION ◆ Non-condensable substance (air) may exist in the cylinder when the temperature of the cylinder rises abnormally during recycle. Remove the air or replace the cylinder. ■ Replacement of spare cylinder ● Even if the cylinder is not full, if the inside pressure of the cylinder is high, replace it with an evacuated spare cylinder. - Page 15 RRDQ220V1 4）Refrigerant Discharge (Purge) Procedure CAUTION ◆ Adjust Suction Pressure less than 0.2MPa in purging. Otherwise, it may cause damage on the compressor. Suction Valve Switching Valve Discharge Valve CLOSE PURGE OPEN Power Start High CLOSE 0.2MPa pressure side pressure side PURGE CLOSE CLOSE Operation time Power Liquid valve Vapor valve CLOSE CLOSE CLOSE Liquid valve Vapor valve...
-
Page 16: Oil Discharge Procedure (Oil Separator)
Refrigerant Recycle Equipment Oil Discharge Procedure (Oil Separator) Discharge the oil when Tank Full Lamp is on ( ①～⑧）or after daily operation（⑤～⑧）. ① Close the suction hose ball valve from the manifold. ② In Auto Shut-off mode, start the unit by pushing Force Start Switch Force Start Switch. -
Page 17: Warm Up Operation
RRDQ220V1 Warm Up Operation When the ambient temperature is under 10℃ , this unit needs a warm up operation to operate efficiently. Suction Valve Switching Valve Discharge Valve High OPEN RECYCLE CLOSE pressure side pressure side CLOSE OPEN OPEN Power Start Liquid valve... -
Page 18: Maintenance & Inspection
Refrigerant Recycle Equipment MAINTENANCE & INSPECTION ● Inspect and clean regularly as instructed below and perform correction or replacement timely. Maintenance ① Keep gauges and front panel clean by wiping with a clean cloth. ② Keep the air blow hole and condenser clean so as to cool down the condenser efficiently. Replace Molecular Sieve Replacement Kit Dry Filter Cartridge is installed at the back side of the unit. -
Page 19: In Case Of Recycle Other Refrigerant
RRDQ220V1 In Case of Recycle Other Refrigerant ① Replace Molecular Sieve Replacement Kit referring to page 17 after discharging oil Ball valve referring to page 15. OPEN ② Connect a vacuum pump to Oil Discharge Port Oil Discharge Port for Oil Separator of Oil Separator. - Page 20 Refrigerant Recycle Equipment Inspection of Purge function ① Remove cap of Suction Port and Discharge Port. ② Turn Suction Valve (V1) to [PURGE] position. Turn Switching Valve (V2) to [PURGE] position. Suction Pressure Turn Discharge Valve (V3) to [OPEN] position. Under 0MPa ③ Set Power Switch to [ON] position. ...
-
Page 21: Loading/Unloading Of The Unit
③ Pay attention to the holding position. EU DECLARATION OF CONFORMITY Equipment Description : Refrigerant Recycle Equipment Code No. / Type : AR023E / RRDQ220V1 The undersigned hereby declares that the above-referenced product is in conformity with the provisions of the following standards and is in accordance with the following directives. Applicable Directives... -
Page 22: Before Requesting Repair Or Service
Refrigerant Recycle Equipment BEFORE REQUESTING REPAIR OR SERVICE Symptom Cause Solution ① Power Cord is not plugged in. ① Plug Power Cord in properly. ② The unit stops due to High Pressure ② Reduce Discharge Pressure. Shut-off function. ③ Breaker is tripped. ③ Reset Breaker. ④... - Page 23 RRDQ220V1 BEFORE REQUESTING REPAIR OR SERVICES Symptom Cause Solution ① The high pressure switch is out of The high ① Repair. order. pressure switch does not work. ② Faston terminals are disconnected. ② Connect the faston terminals properly. The high pressure ① The high pressure switch is out of switch works even ①...
-
Page 24: Piping Diagram
Refrigerant Recycle Equipment PIPING DIAGRAM Condenser Solid line Piping Bold line Oil discharge line Compressor High Pressure Switch Safety Relief Valve Low Pressure Switch Discharge Check Pressure Valve Gauge Purge Recycle (High) Suction Pressure Gauge (Low) Electrostatic Filter System Open Purge Oil Discharge Manifold Block Port for... -
Page 25: (Recycle)
RRDQ220V1 FLOW DIAGRAM (RECYCLE) Condenser Solid line Refrigerant recycle line Valve close Dashed line Line not related to recycle Valve open Bold line Oil discharge line Compressor High Pressure Switch Safety Relief Valve Low Pressure Switch Discharge Check Pressure Valve Gauge Purge... -
Page 26: Purge
Refrigerant Recycle Equipment FLOW DIAGRAM (PURGE) Condenser Dashed line Purge flow line Valve close Line unrelated to purge Solid line flow Valve open Bold line Oil discharge line Compressor High Pressure Switch Safety Relief Valve Low Pressure Switch Discharge Check Pressure Valve Gauge Purge Recycle... - Page 27 RRDQ220V1...
- Page 28 Zandvoordestraat 300,8400 Oostende,Belgium IM0496 - Ver.01 10 - July - 2019...
